Tractor · 1960Unverified

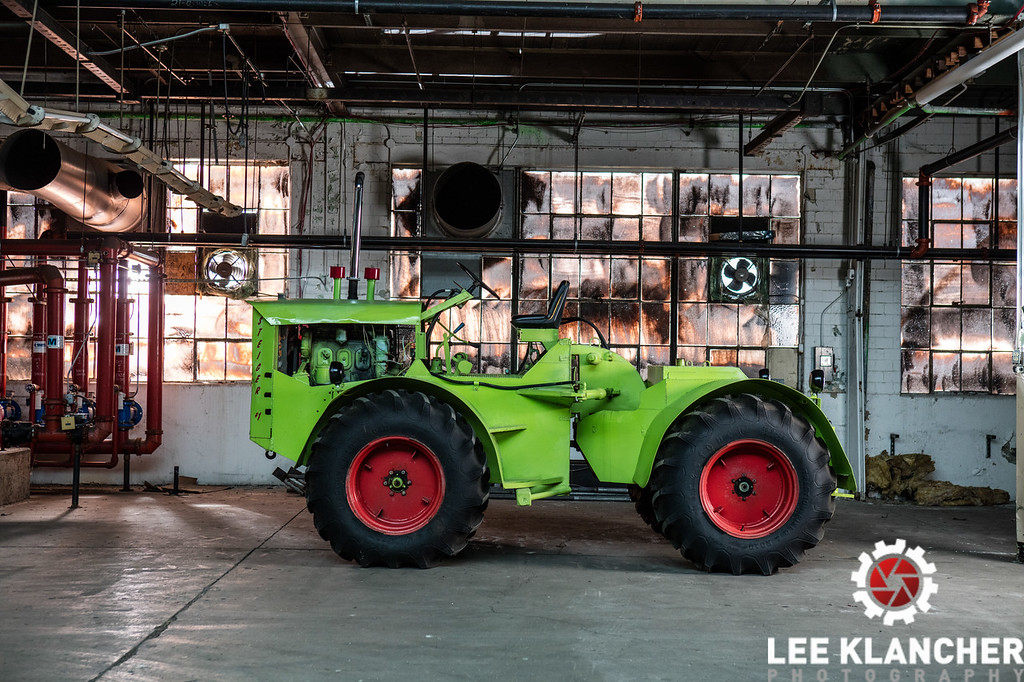

Steiger 105
Steiger 105 — Barn Series · 118 hp. Reference specifications; pending source verification.
The Steiger 105 is a tractor with a rated power of 118 hp, falling within the mid-range of its class. This model was manufactured from 1960 to 1963. It features a 3-cylinder diesel liquid-cooled engine, combined with four-wheel drive and a 10-speed gearbox, suitable for operations covering areas of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
118 hp
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
118 hp
Transmissions
10-speed
Production years
1960-1963
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Red Lake Falls, Minnesota, USAReference
Total built3Reference
Drive4x4 articualted 4WDReference
Articulated power steeringReference
Open operator station.Reference
Engine
Detroit Diesel 3.5L 3-cyl dieselReference
Engine88.0 kWReference
Detroit Diesel 3-71NReference
dieselReference
3-cylinderReference
liquid-cooledReference
2-cycle engineReference
Displacement3.5 LReference
Bore/Stroke108 x 127 mmReference
Power88.0 kWReference
Rated RPM2300Reference
Transmission
10-speedReference
TransmissionSpicerReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Front tire18.4-26Reference
Rear tire18.4-26Reference
Ag front18.4-26Reference
Ag rear18.4-26Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
