Tractor · 1963Unverified

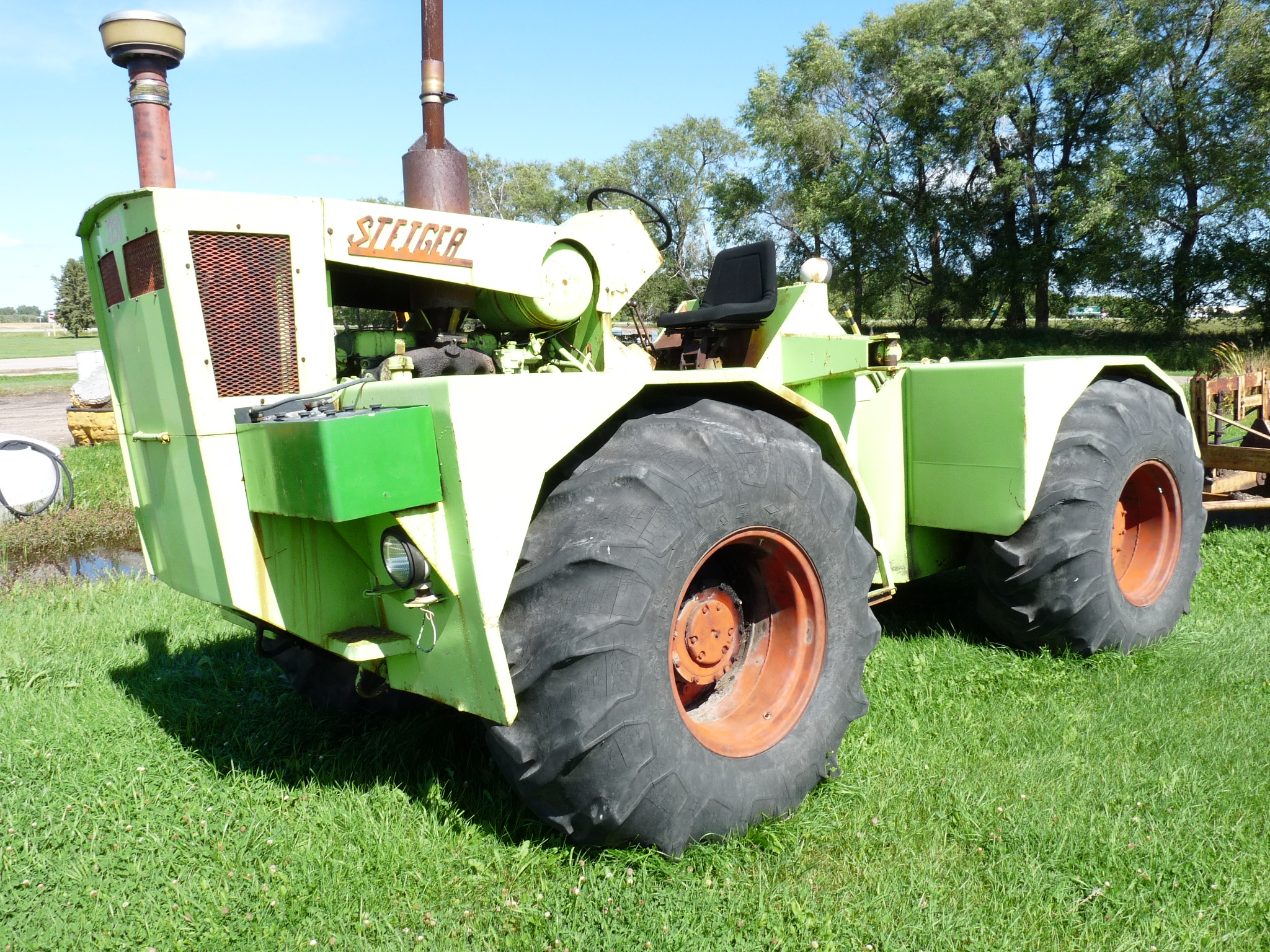

Steiger 1250
Steiger 1250 — Barn Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
6259 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Red Lake Falls, Minnesota, USAReference
Four-wheel driveReference
Articulated power steeringReference
Open operator station. Cab available.Reference
Engine
Detroit Diesel 3.5L 4-cyl dieselReference
Fuel tank340.7 LReference
Engine96.9 kWReference
Detroit Diesel 4-53NReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke98 x 114 mmReference
Power96.9 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch356mm discReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Total flow75.7 lpmReference
Dimensions
Wheelbase274 cmReference
Weight6259 kgReference
Front tire16.9-26Reference
Rear tire16.9-26Reference
Ag front16.9-26Reference
Ag rear16.9-26Reference
Ag front18.4-26Reference
Ag rear18.4-26Reference
Width213 cmReference
Height223 cmReference
Front tread167 cmReference
Rear tread167 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
