Tractor · 1963Unverified

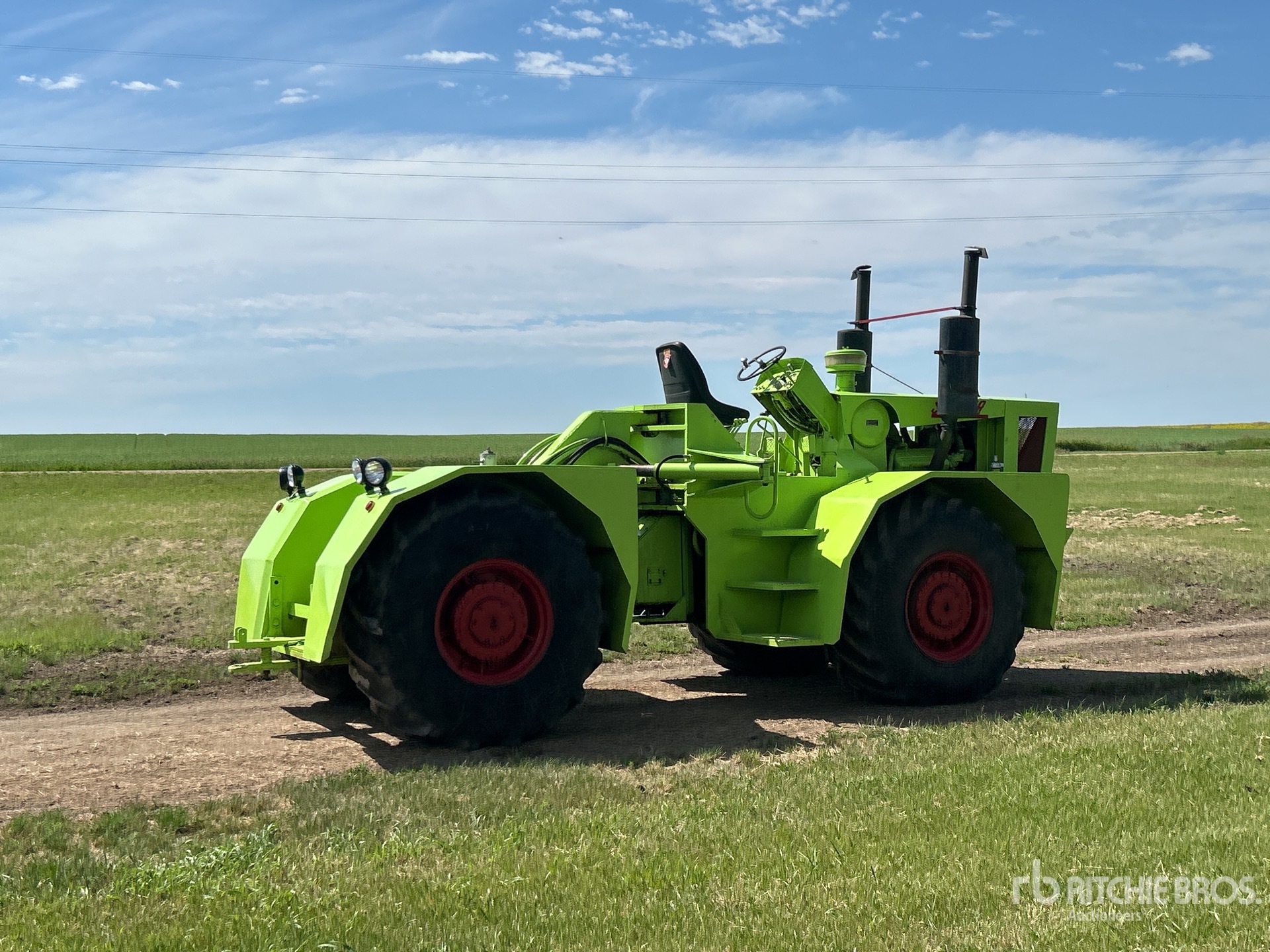

Steiger 1700
Steiger 1700 — Barn Series · 195 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
195 hp
Weight
8300 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Red Lake Falls, Minnesota, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Drum brakesReference
Open operator station. Cab available.Reference
Engine
Detroit Diesel 5.2L 6-cyl dieselReference
Engine145.4 kWReference
Detroit Diesel 6V53NReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke98 x 114 mmReference
Power145.4 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
9-speedReference
TransmissionSpicerReference
Gears9 forward and 2 reverseReference
Clutch330mm discsReference
Capacities
Fuel454.2 LReference
PTO & Hydraulics
Hydraulic system166.5 LReference
Typeopen centerReference
Capacity166.5 LReference
Valves2Reference
Total flow132.5 lpmReference
Dimensions
Wheelbase320 cmReference
Weight8300 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Width243 cmReference
Height223 cmReference
Front tread198 cmReference
Rear tread198 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
