Tractor · 1986Unverified

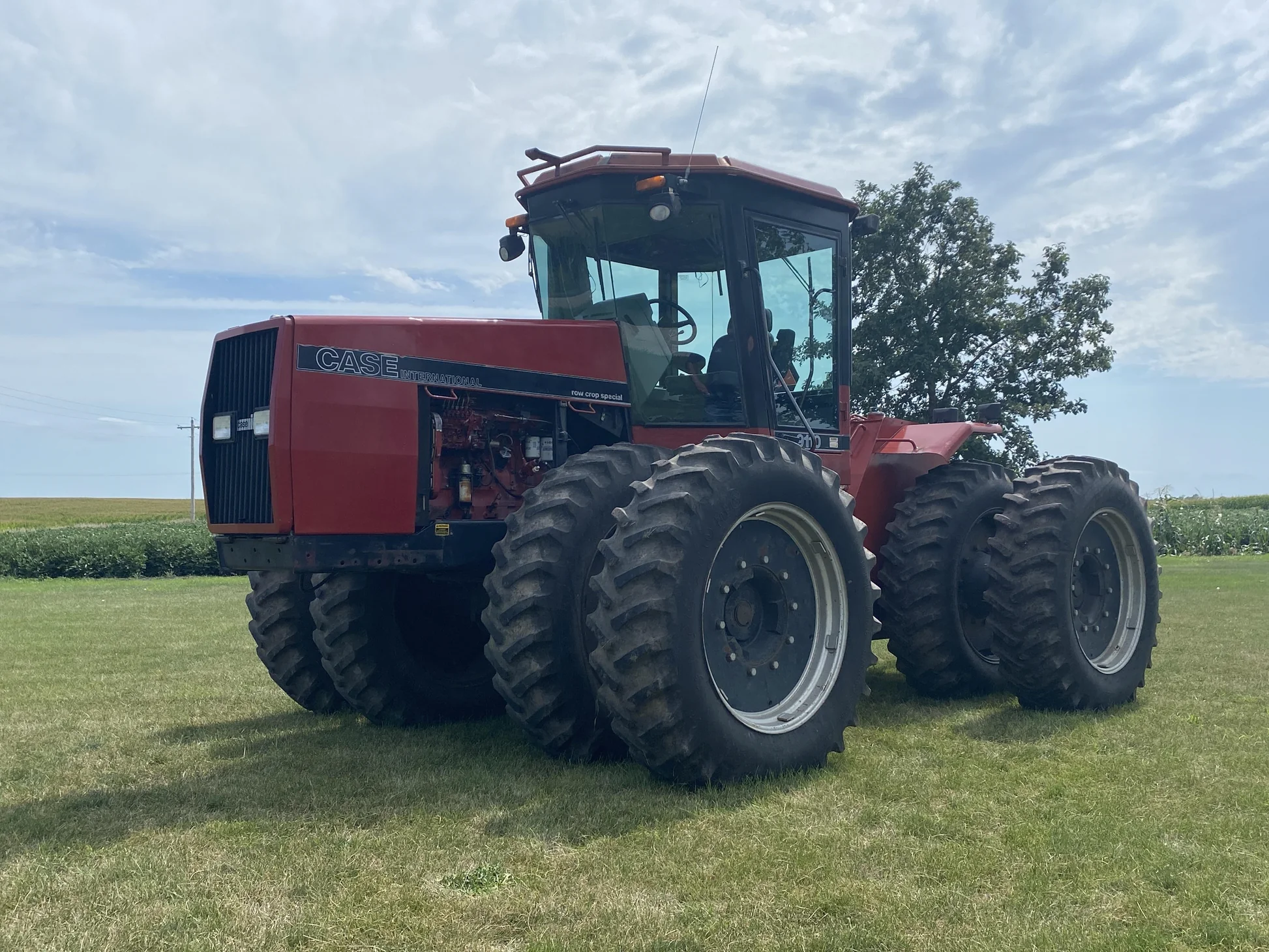

Steiger 9110
Steiger 9110 — Four-wheel Drive (4WD) tractor · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Weight
7711 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $70,500 in 1990Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic power for steerable front axle and articulated chassisReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Engine (gross)141.7 kWReference
CDC 6CTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power (gross)141.7 kWReference
Rated RPM2100Reference
Torque838.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity33.3 LReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)125.3 kWReference
Hydraulic system68.1 LReference
Typeclosed centerReference
Capacity68.1 LReference
Pressure172.4 barReference
Valves2 to 4Reference
Total flow102.2 lpmReference
Rear TypeIIIReference
Rear lift5783 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel435.3 LReference
Dimensions
Wheelbase305 cmReference
Weight7711 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length613 cmReference
Width303 cmReference
Height (exhaust)329 cmReference
Shipping weight7711 kgReference
Max weight10886 kgReference
Ground clearance52 cmReference
Front axle101 by 3035 mmReference
Bar rear axle101 by 3035 mmReference
Front tread152 to 330 cmReference
Rear tread152 to 330 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps105Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 18.4x38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
