Tractor · 1986Unverified

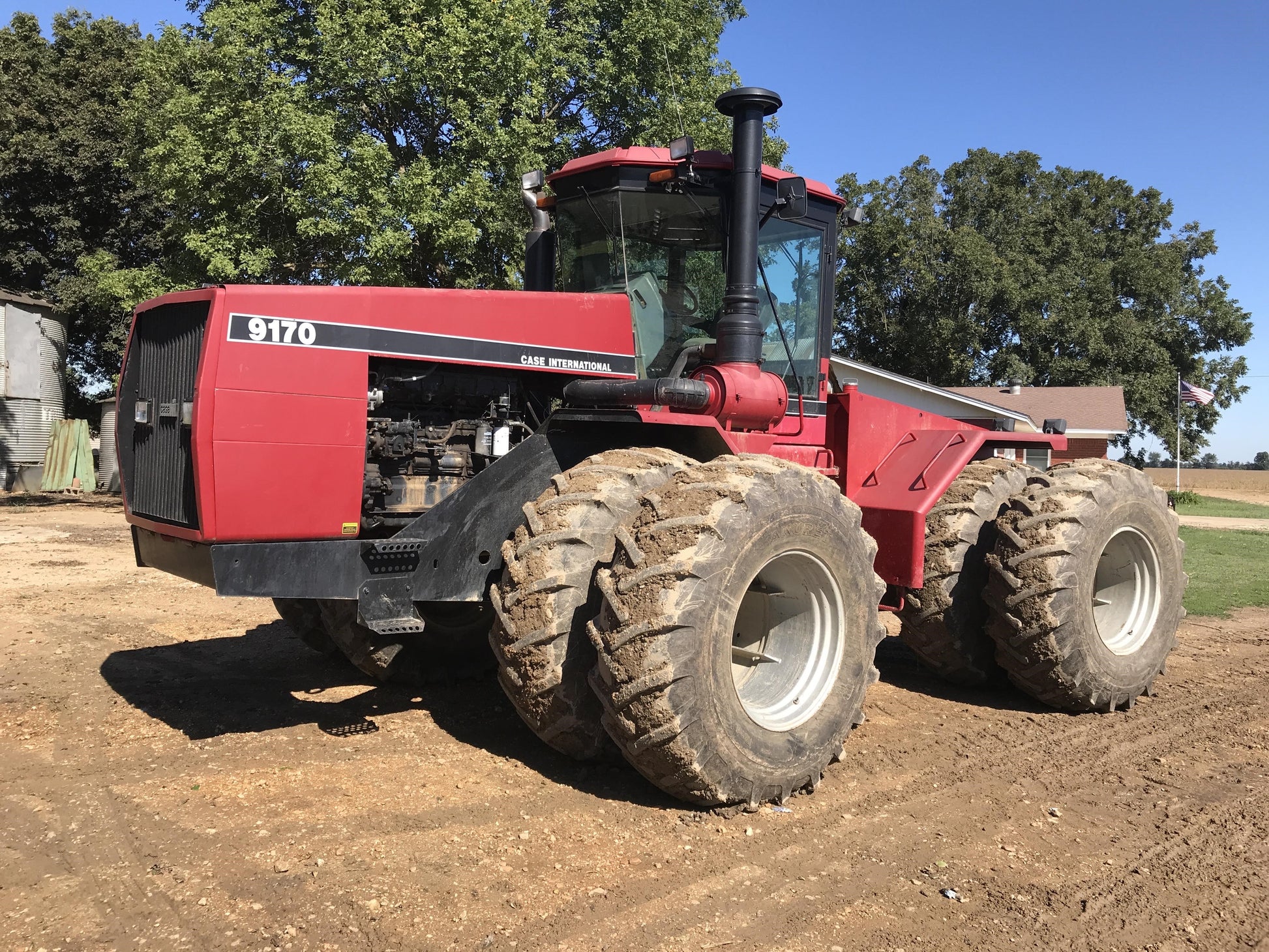

Steiger 9170
Steiger 9170 — Four-wheel Drive (4WD) tractor · 335 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
335 hp
Weight
13154 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $119,000 in 1990Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine (gross)249.8 kWReference
Cummins NTA-855Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power (gross)249.8 kWReference
Rated RPM2100Reference
Torque1533.6 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity38.8 LReference
Coolant capacity62.5 LReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)223.7 kWReference
Hydraulic system98.4 LReference
Typeclosed centerReference
Capacity98.4 LReference
Pressure172.4 barReference
Valves3 to 4Reference
Total flow151.4 lpmReference
Rear TypeIVReference
Rear lift6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel946.2 LReference
Dimensions
Wheelbase358 cmReference
Weight13154 kgReference
Front tire23.1-24Reference
Rear tire23.1-24Reference
Ag front23.1-24Reference
Ag rear23.1-24Reference
Length709 cmReference
Width243 cmReference
Height (exhaust)379 cmReference
Shipping weight13154 kgReference
Max weight18144 kgReference
Ground clearance49 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries3Reference
Battery volts12Reference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
