Tractor · 1986Unverified

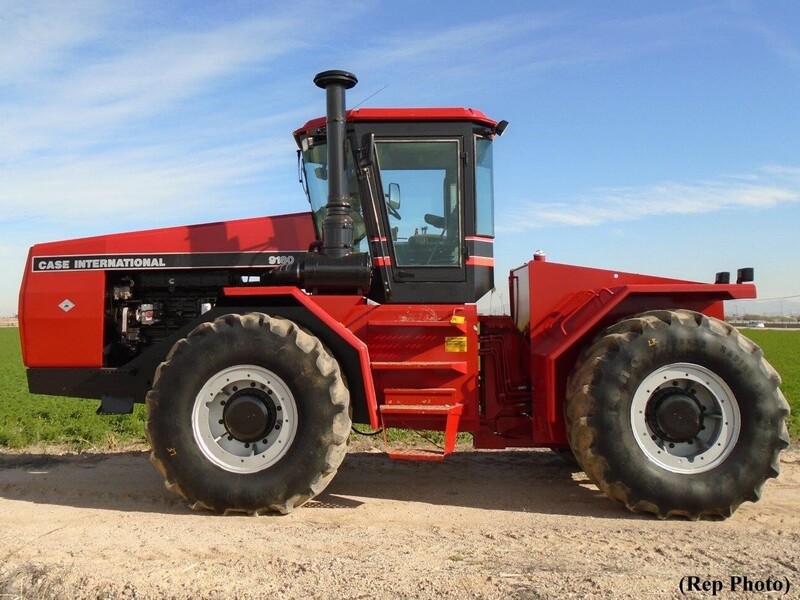

Steiger 9180

Name: Steiger 9180
Brand: Steiger

Steiger 9180 — Four-wheel Drive (4WD) tractor · 344 hp. Reference specifications; pending source verification.

The Steiger 9180 is a tractor with a rated power output of 344 hp, placing it at the higher end of its class in terms of power. Manufactured between 1986 and 1990, the 9180 features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a hydrostatic transmission. Its operating weight is listed at 12,700 kg, making it suitable for large-scale operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

344 hp

Weight

12700 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

344 hp

Recorded weight

12700 kg

Transmissions

12-speed full power shift

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteigerReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $128,000 in 1990Reference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Steeringhydrostatic powerReference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Engine279.6 kWReference

Cummins NTA-855Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power279.6 kWReference

Rated RPM2100Reference

Torque1533.6 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity38.8 LReference

Coolant capacity62.5 LReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)256.5 kWReference

Hydraulic system98.4 LReference

Typeclosed centerReference

Capacity98.4 LReference

Pressure172.4 barReference

Valves3 to 4Reference

SCV flow102.2 lpmReference

Total flow151.4 lpmReference

Rear TypeIVReference

Rear lift6350 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel946.2 LReference

Dimensions

Wheelbase359 cmReference

Weight12700 kgReference

Front tire24.5-32Reference

Rear tire24.5-32Reference

Ag front24.5-32Reference

Ag rear24.5-32Reference

Ag front30.5-32Reference

Ag rear30.5-32Reference

Length713 cmReference

Width243 cmReference

Height (cab)354 cmReference

Height (exhaust)379 cmReference

Shipping weight12700 kgReference

Ground clearance49 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

With 24.5x32 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
