Tractor · 1970Unverified

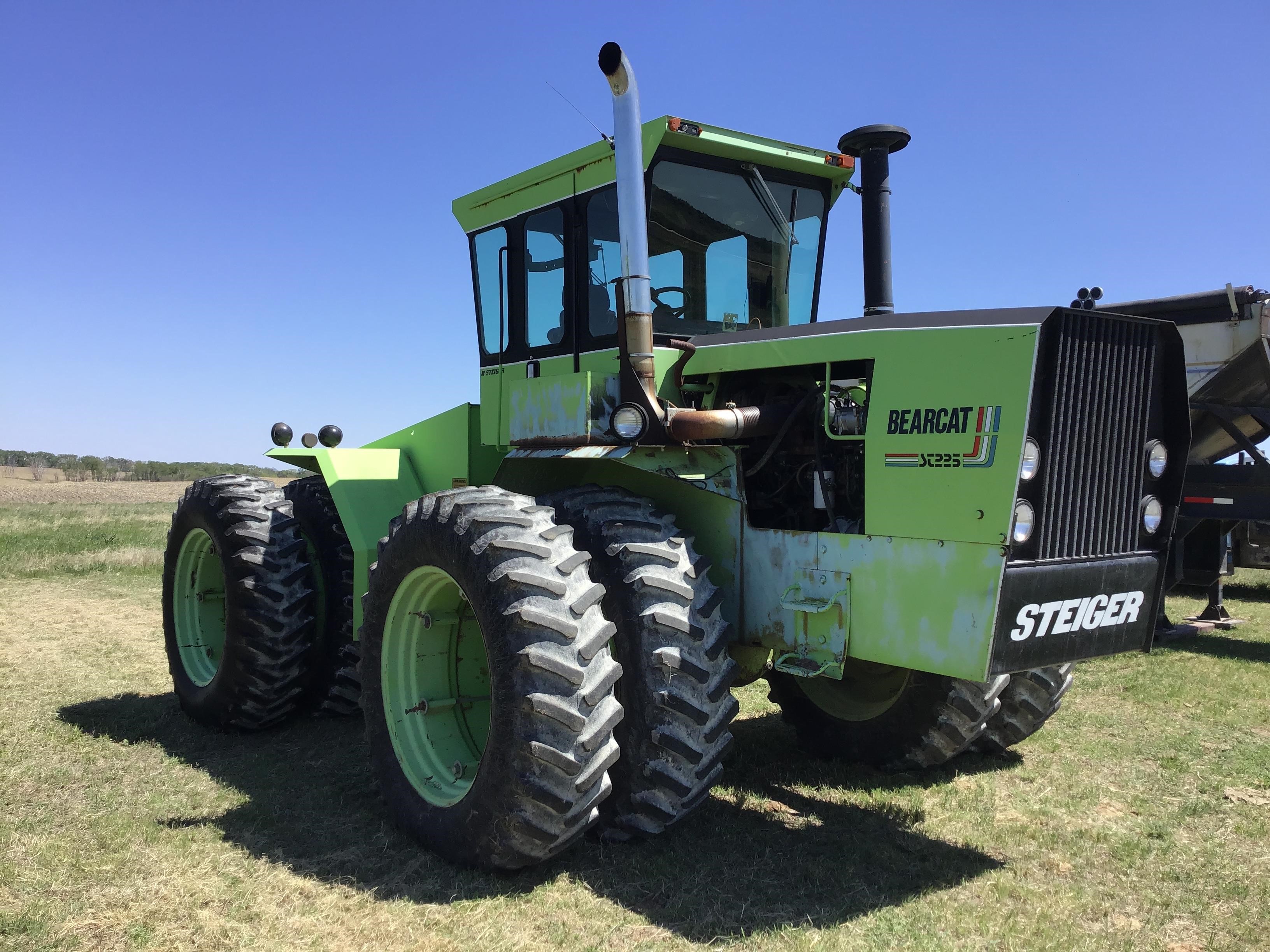

Steiger Bearcat
Steiger Bearcat — I Series · 225 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
225 hp
Weight
8890 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $23,000 in 1973Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine167.8 kWReference
Drawbar (claimed)118.6 kWReference
Caterpillar 3160Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power167.8 kWReference
Rated RPM2800Reference
Torque659.0 NmReference
Torque RPM1290Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity39.7 LReference
Transmission
10-speedReference
TransmissionFullerReference
Gears10 forward and 2 reverseReference
Clutch355.6mm dry discsReference
Early literature states a model RT-910. Later literature shows a TA 4510.Reference
Capacities
Fuel529.9 LReference
PTO & Hydraulics
Hydraulic system132.5 LReference
Typeopen centerReference
Capacity132.5 LReference
Valves3Reference
Pump flow79.5 lpmReference
Total flow143.8 lpmReference
Steering flow64.3 lpmReference
Rear TypeIVReference
Rear lift3628 kgReference
Dimensions
Wheelbase304 cmReference
Weight8890 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Ag front23.1-26Reference
Ag front28.1-26Reference
Ag rear23.1-26Reference
Ag rear28.1-26Reference
Length579 cmReference
Width236 cmReference
Max weight10432 kgReference
Steering wheel264 cmReference
Bearcat Serial Number Location
Serial number plate inside the tractor cab, on the left side of the console.Reference
Bearcat Serial Numbers
19702000Reference
19712040Reference
19722275Reference
19732442Reference
19742828Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Steiger Bearcat Height
Hood218 cmReference
Cab317 cmReference
Exhaust353 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
