Tractor · 1986Unverified

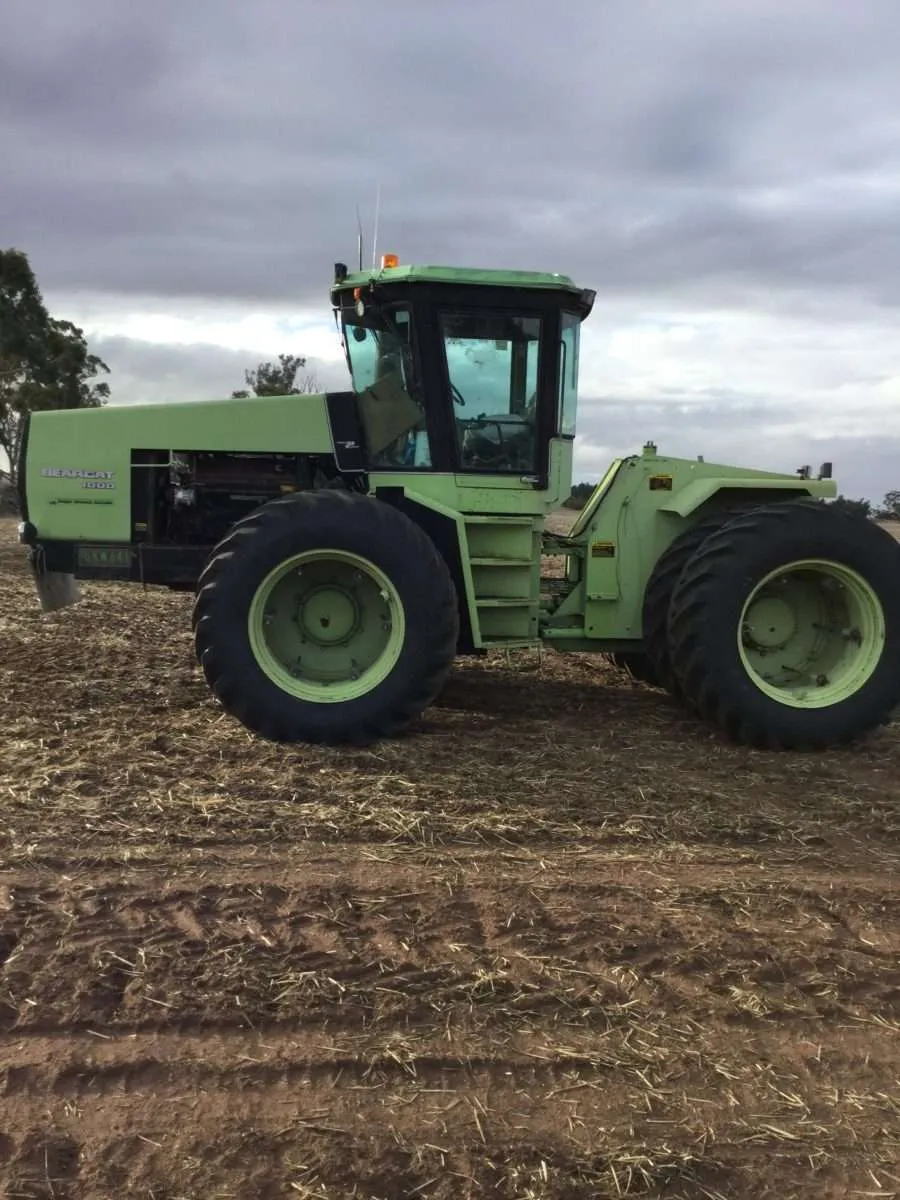

Steiger Bearcat 1000
Steiger Bearcat 1000 — Four-wheel Drive (4WD) tractor · 218 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
218 hp
Max power
143.8 kW
Weight
10432 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $80,600 in 1986Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Final drivesdouble-reduction outboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Cummins 10.0L 6-cyl dieselReference
Engine175.2 kWReference
Drawbar (tested)143.8 kWReference
Caterpillar 3306DITReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power175.2 kWReference
Air cleanerdryReference
Compression15:1Reference
Rated RPM2100Reference
Torque1036.0 NmReference
Torque RPM1300Reference
Starter volts12Reference
Coolant capacity54.9 LReference
Cummins LT-10Reference
liquid-cooledReference
Displacement10.0 LReference
Bore/Stroke126 x 136 mmReference
Torque1057.7 NmReference
Power at rated engine speed162.6 kWReference
Max power143.8 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)162.6 kWReference
Hydraulic system68.1 LReference
Typeclosed center load sensing pressure compensatingReference
Capacity68.1 LReference
Pressure172.4 barReference
Valves2 to 4Reference
Pump flow102.2 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel643.5 LReference
Dimensions
Wheelbase330 cmReference
Weight10432 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length693 cmReference
Width91 cmReference
Height (hood)219 cmReference
Height (exhaust)363 cmReference
Shipping weight10432 kgReference
Max weight14515 kgReference
Ground clearance81 cmReference
Front axle101 by 3048 mmReference
Bar rear axle101 by 3048 mmReference
Front tread152 to 330 cmReference
Rear tread152 to 330 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Test results
Caterpillar diesel 12-speed 4WDMay 6 - 13, 1986Link: Nebraska Tractor Test 1592 fileReference
PTO performanceReference
Fuel use49.6 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull12957 kgReference
Gear 2 used for pull test.Reference
Speeds
With 18.4x38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
