Tractor · 1974Unverified

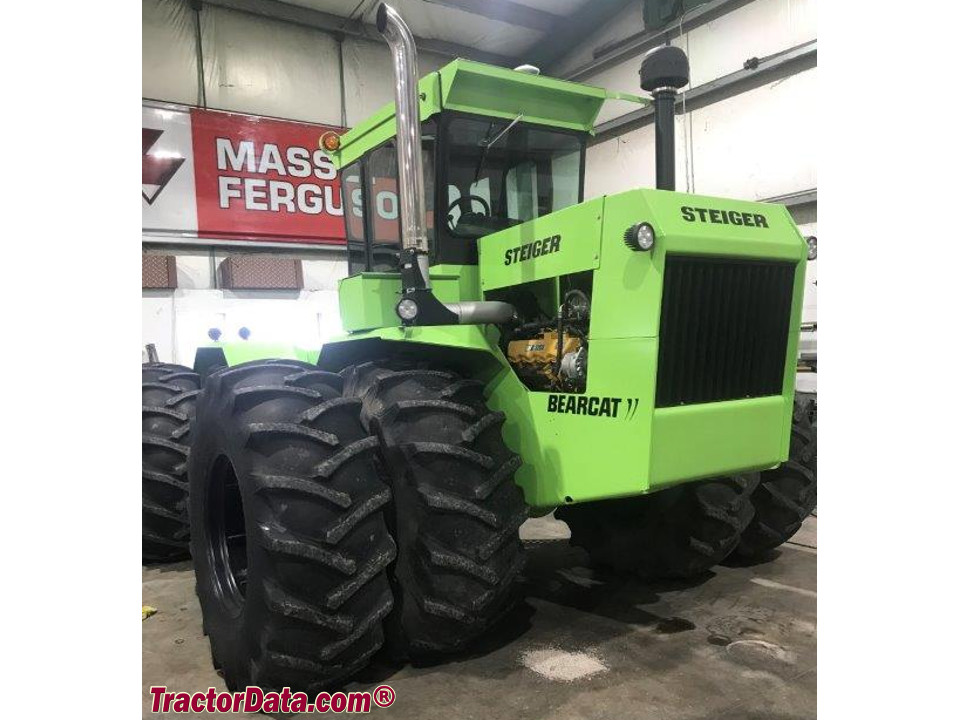

Steiger Bearcat II ST-225
Steiger Bearcat II ST-225 — II Series · 225 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
225 hp
Max power
132.9 kW
Weight
9752 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $37,000 in 1976Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with optional heat and air-conditioning.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine167.8 kWReference
Drawbar (claimed)134.2 kWReference
Drawbar (tested)132.9 kWReference
Caterpillar 3160Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power156.6 kWReference
Compression16.4:1Reference
Rated RPM2800Reference
Torque657.7 NmReference
Torque RPM1290Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity37.9 LReference
Caterpillar 3208Reference
liquid-cooledReference
Power167.8 kWReference
Torque RPM1400Reference
Oil capacity11.4 LReference
Max power132.9 kWReference
Transmission
10-speed gearReference
TransmissionDana-Spicer ST-1010Reference
TypegearReference
Gears10 forward and 2 reverseReference
Clutch355.6mm cerametallic discReference
Fuller TA4510 used on the RC-200.Reference
Capacities
Fuel529.9 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Typeopen centerReference
Capacity113.6 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow83.3 lpmReference
Steering flow66.2 lpmReference
Steering press.103.4 barReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Weight9752 kgReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Ag front18.4-34Reference
Ag front20.8-34Reference
Ag front23.1-34Reference
Ag front24.5-32Reference
Ag front30.5-32Reference
Ag rear18.4-34Reference
Ag rear20.8-34Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Ag rear30.5-32Reference
Length579 cmReference
Width243 cmReference
Bearcat II ST-225 Serial Numbers
19743001Reference
19753402Reference
19763772Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps55 (early)Reference
Charging amps72 (late)Reference
Battery volts12Reference
Steiger Bearcat II ST-225 Height
Hood218 cmReference
Cab317 cmReference
Exhaust353 cmReference
Test results
Cat 3208 diesel 10-speed 4WDSeptember 13 - 30, 1974Link: Nebraska Tractor Test 1162 fileReference
Drawbar performanceReference
Fuel use52.6 l/hourReference
Gear 1-Hi used for power test.Reference
Max pull10261 kgReference
Gear 2-Lo used for pull test.Reference
Speeds
With 23.1-34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
