Tractor · 1971Unverified

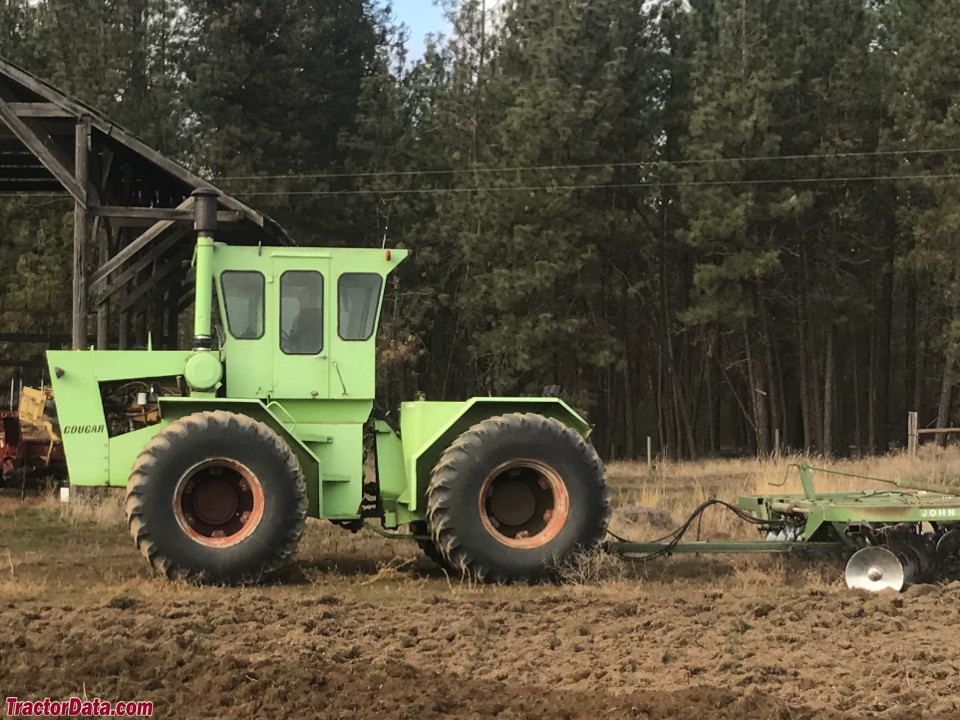

Steiger Cougar
Steiger Cougar — I Series · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Weight
21000 to 26000 pounds
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $49,000 in 1974Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Cab standard with available air-conditioning.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine223.7 kWReference
Caterpillar D333TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power223.7 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque923.4 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Oil capacity23.7 LReference
Coolant capacity56.8 LReference
Transmission
10-speed gearReference
TransmissionDana 1010Reference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Capacities
Fuel783.5 LReference
PTO & Hydraulics
Hydraulic system143.8 LReference
Typeopen centerReference
Capacity143.8 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow94.6 lpmReference
Steering flow60.6 lpmReference
Steering press.103.4 barReference
Rear TypeIVReference
Rear lift3628 kgReference
Dimensions
Wheelbase308 cmReference
Weight21000 to 26000 poundsReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Ag front30.5-32Reference
Ag front24.5-32Reference
Ag front20.8-38Reference
Ag rear30.5-32Reference
Ag rear24.5-32Reference
Ag rear20.8-38Reference
Length619 cmReference
Width243 cmReference
Height (cab)338 cmReference
Shipping weight9525 kgReference
Operating weight11793 kgReference
Ground clearance42 cmReference
Cougar Serial Numbers
197110002Reference
197220006Reference
197320092Reference
197420376Reference
Final20432Reference
FAQ: How to read a serial number table.Reference
Electrical
Ground12Reference
Charging systemalternatorReference
Charging amps62Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 23.1x30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
