Tractor · 1986Unverified

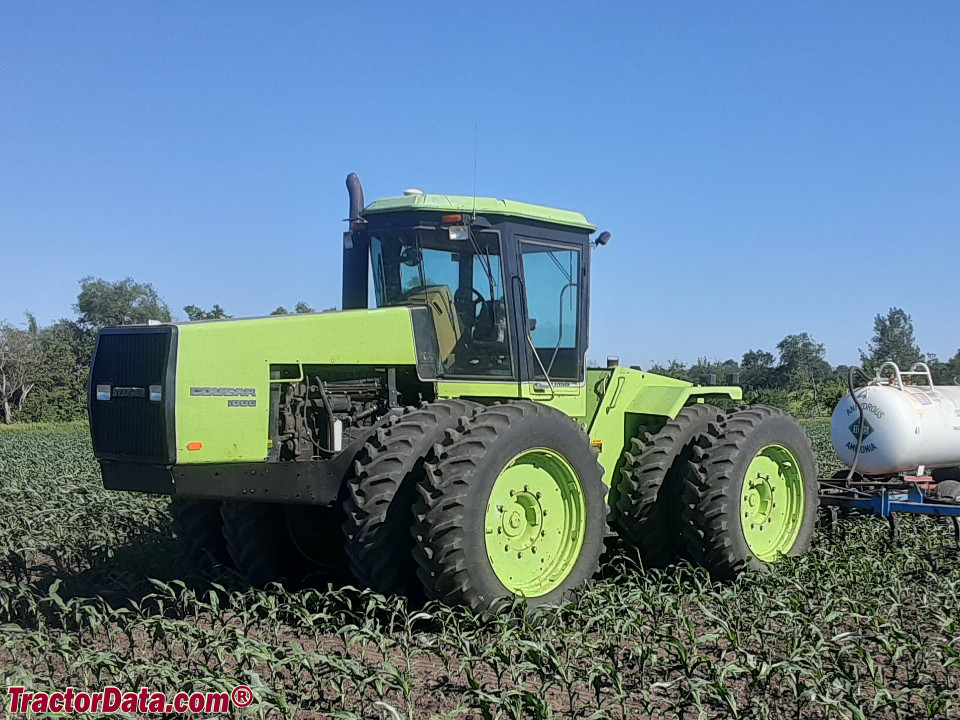

Steiger Cougar 1000
Steiger Cougar 1000 — Four-wheel Drive (4WD) tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
10432 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9150similar CaseIH modelReference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Cummins 10.0L 6-cyl dieselReference
Engine208.8 kWReference
Caterpillar 3306B DITAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power208.8 kWReference
Air cleanerdry with centrifugal precleanerReference
Torque1234.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity56.8 LReference
Cummins LTA-10Reference
liquid-cooledReference
Displacement10.0 LReference
Bore/Stroke126 x 136 mmReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)186.4 kWReference
Hydraulic system68.1 LReference
Typeclosed center load sensingReference
Capacity68.1 LReference
Pressure172.4 barReference
Valves2 to 4Reference
Pump flow102.2 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel643.5 LReference
Dimensions
Wheelbase330 cmReference
Weight10432 kgReference
Front tire18.4x38Reference
Rear tire18.4x38Reference
Ag front18.4x38Reference
Ag rear18.4x38Reference
Length693 cmReference
Width91 cmReference
Width163 cmReference
Width237 cmReference
Width366 cmReference
Shipping weight10432 kgReference
Max weight14515 kgReference
Front axle101 by 3048 mmReference
Front axleOutboard planetaryReference
Bar rear axle101 by 3048 mmReference
Outboard planetary rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps100Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Steiger Cougar 1000 Height
Hood219 cmReference
Cab342 cmReference
Exhaust363 cmReference
Speeds
With 18.4x38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
