Tractor · 1985Unverified

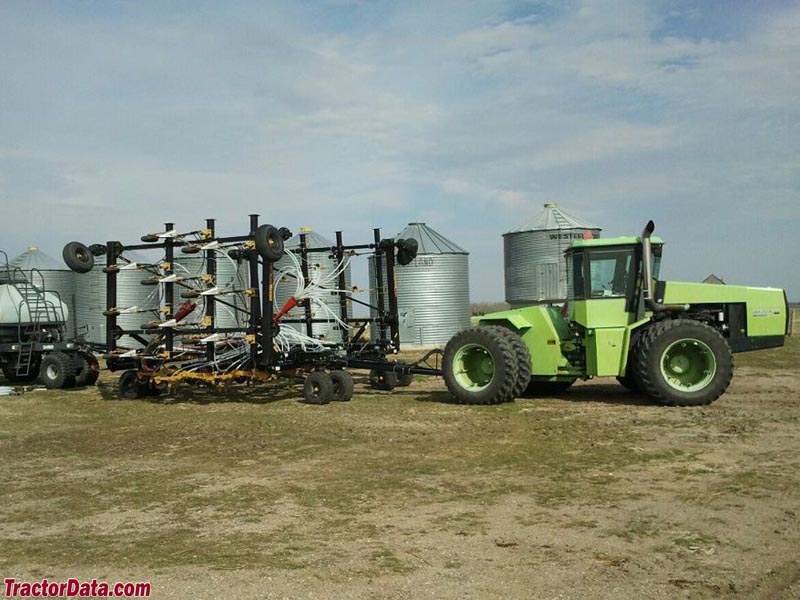

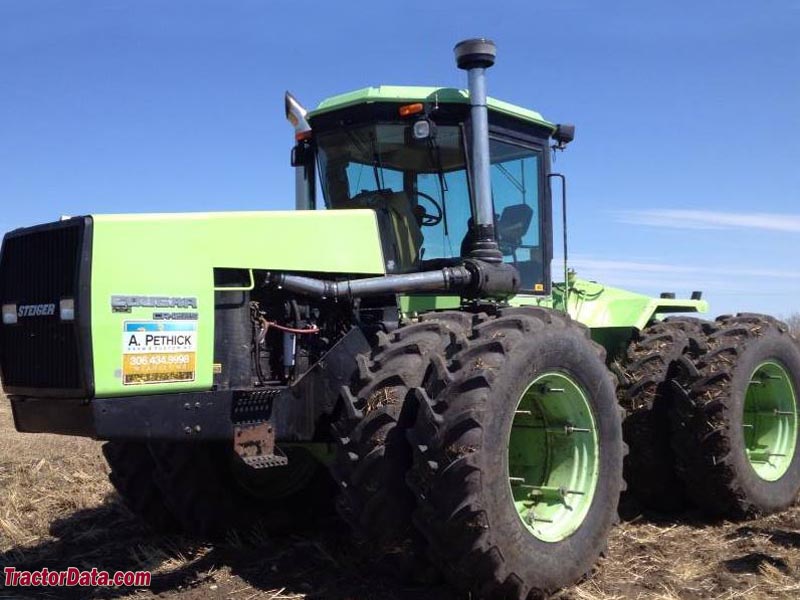

Steiger Cougar CR-1225
Steiger Cougar CR-1225 — Four-wheel Drive (4WD) tractor · 195 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
195 hp
Weight
11249 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$80,000 (1985)Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard.Reference
Variants
CR1225Caterpillar 225 HPReference
KR1225Cummin 225 HPReference
CR1280Caterpillar 280 HPReference
KR1280Cummins 280 HPReference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine167.8 kWReference
Drawbar (claimed)137.2 kWReference
Caterpillar 3306BReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power167.8 kWReference
Starter typeelectricReference
Transmission
20-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (low/high) with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
Typeclosed-center load sensingReference
Pump flow113.6 lpmReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Dimensions
Weight11249 kgReference
Front axleFlangeReference
Front axleBarReference
Flange rear axleReference
Bar rear axleReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
