Tractor · 1985Unverified

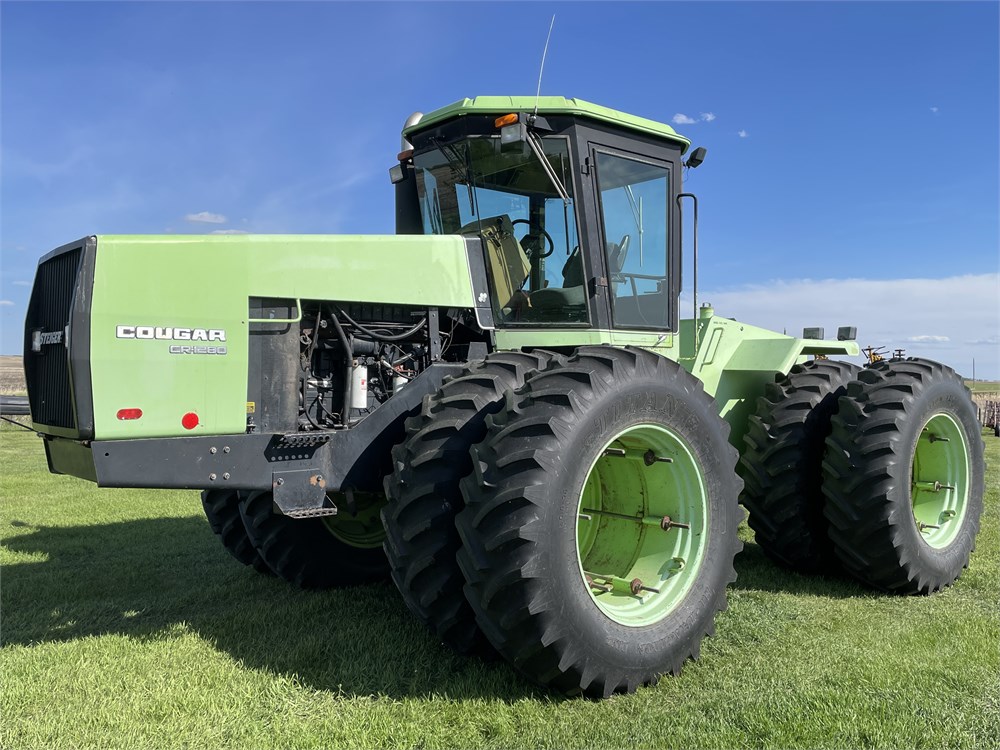

Steiger Cougar CR-1280
Steiger Cougar CR-1280 — Four-wheel Drive (4WD) tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
10614 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $92,300 in 1985Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard.Reference
Variants
CR1225Caterpillar 225 HPReference
KR1225Cummin 225 HPReference
CR1280Caterpillar 280 HPReference
KR1280Cummins 280 HPReference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine208.8 kWReference
Drawbar (claimed)172.3 kWReference
Caterpillar 3306BReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power208.8 kWReference
Starter typeelectricReference
Transmission
20-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (low/high) with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)186.4 kWReference
Typeclosed-center load sensingReference
Valves3Reference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Weight10614 kgReference
Front axleFlangeReference
Front axleBarReference
Flange rear axleReference
Bar rear axleReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
