Tractor · 1980Unverified

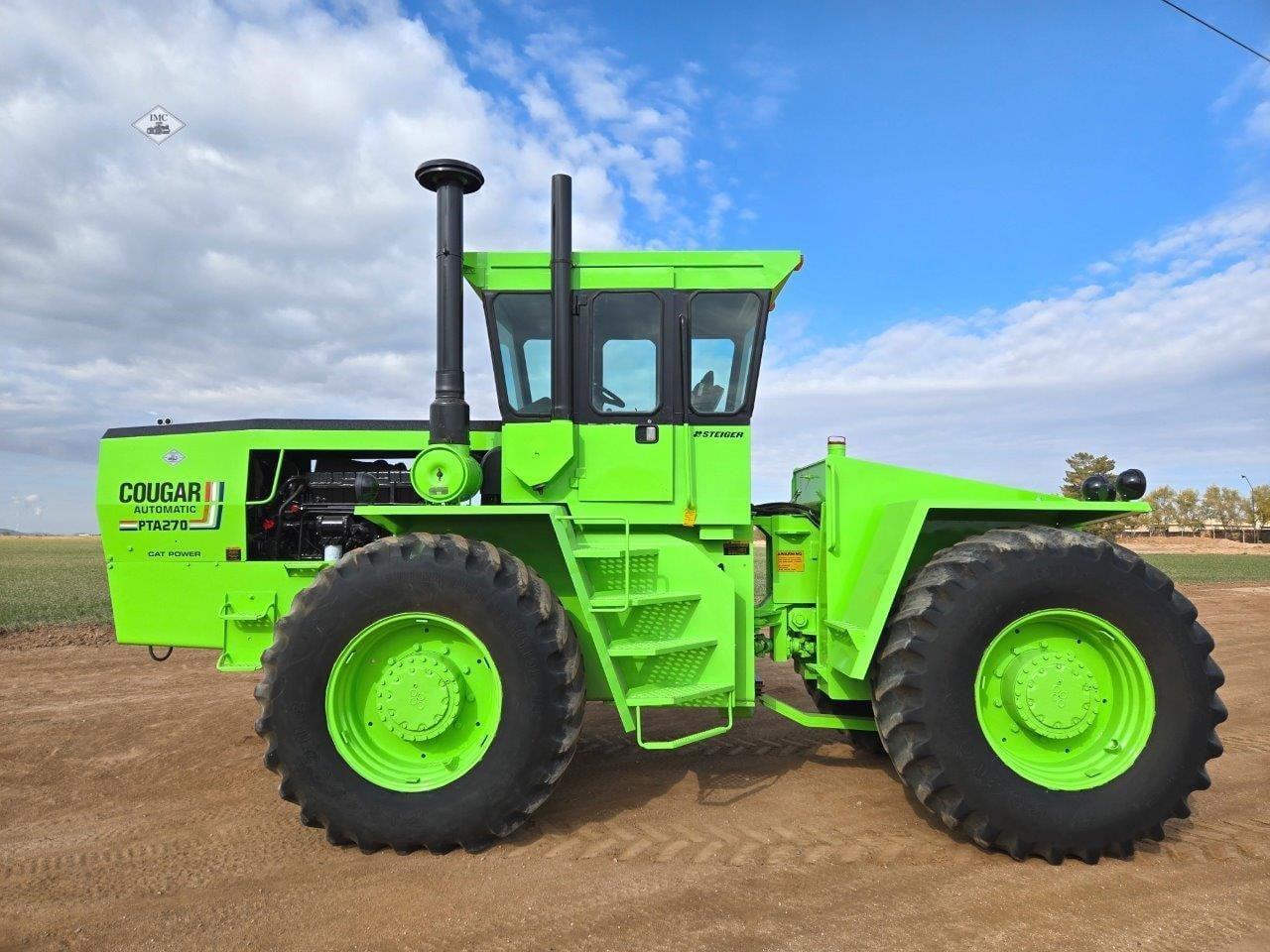

Steiger Cougar III PTA-270
Steiger Cougar III PTA-270 — III Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
11566 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $87,000 in 1981Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with air-conditioning.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine201.3 kWReference
Drawbar (claimed)170.8 kWReference
Caterpillar 3306TAReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power201.3 kWReference
Compression17.5:1Reference
Rated RPM2200Reference
Idle RPM600-2470Reference
Torque1050.9 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Oil capacity27.4 LReference
Coolant capacity66.2 LReference
Transmission
10-speedReference
TransmissionAllison HT 754Reference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
Hydraulic system83.3 LReference
Typeopen centerReference
Capacity83.3 LReference
Valves4Reference
Pump flow110.5 lpmReference
SCV flow75.7 lpmReference
Rear TypeIIIReference
Capacities
Fuel851.6 LReference
Dimensions
Wheelbase336 cmReference
Weight11566 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Ag front24.5-32Reference
Ag front30.2-35Reference
Ag rear24.5-32Reference
Ag rear30.2-35Reference
Max weight15422 kgReference
Ground clearance53 cmReference
Cougar III PTA-270 Serial Numbers
1980151-00001Reference
1981151-00042Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
