Tractor · 1981Unverified

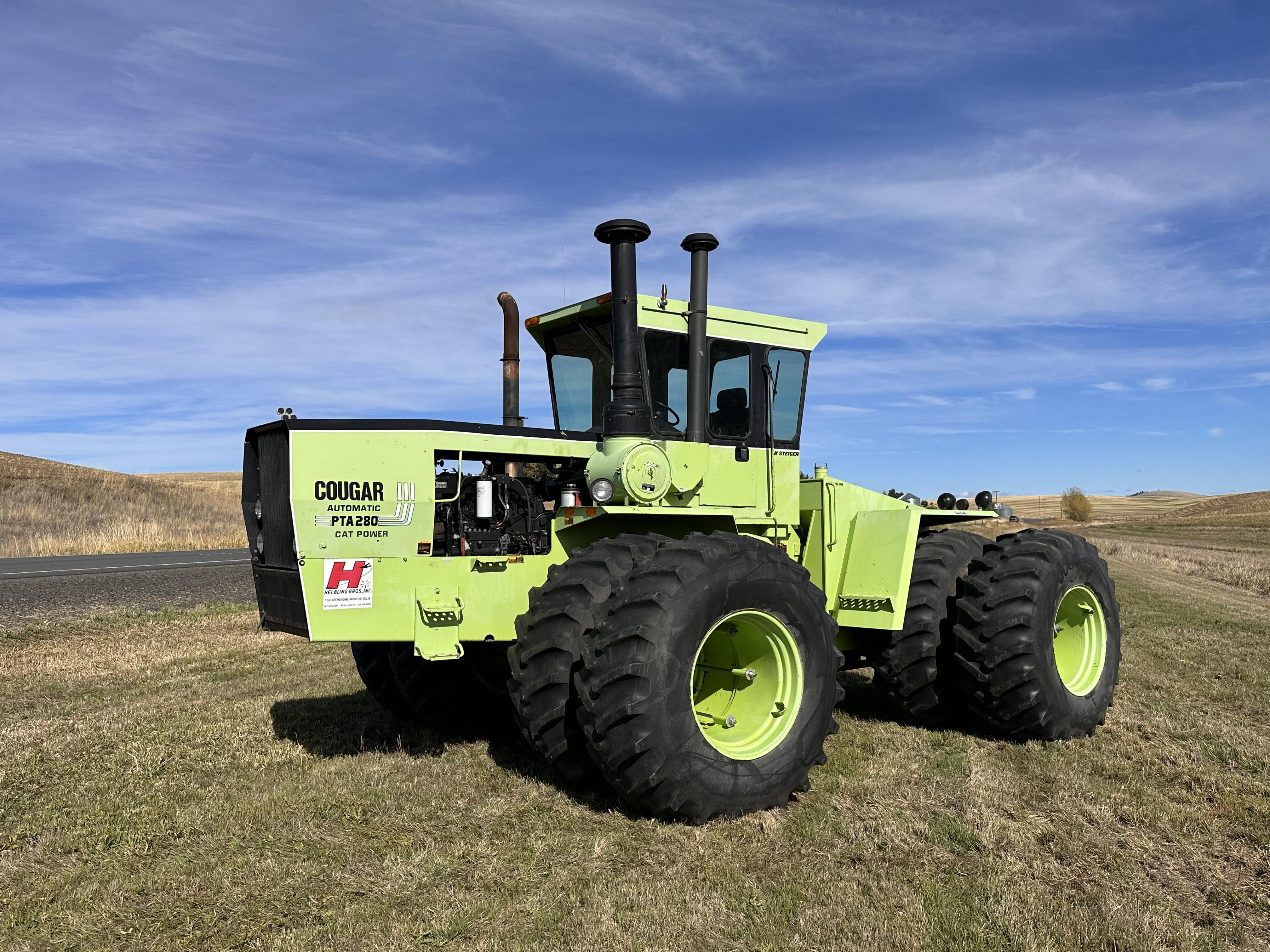

Steiger Cougar III PTA-280
Steiger Cougar III PTA-280 — III Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
12519 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $103,000 in 1983Reference
Drive4x4 articualted 4WDReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank851.6 LReference
Engine208.8 kWReference
Drawbar (claimed)167.8 kWReference
Cummins NT-855CReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power208.8 kWReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Rated RPM2100Reference
Torque1247.5 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Oil capacity33.1 LReference
Coolant capacity53.0 LReference
Caterpillar 3406-DITReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Torque1281.4 NmReference
Torque RPM1200Reference
Oil capacity34.1 LReference
Coolant capacity66.2 LReference
Transmission
10-speed power shift with torque converterReference
TransmissionAllison HT-754Reference
Typepower shift with torque converterReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
Typeopen centerReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow108.3 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase336 cmReference
Weight12519 kgReference
Front tire23.1x34Reference
Rear tire23.1x34Reference
Ag front23.1x34Reference
Ag rear23.1x34Reference
Ag front18.4x38Reference
Ag front20.8x34Reference
Ag front20.8x38Reference
Ag front24.5x32Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x34Reference
Ag rear20.8x38Reference
Ag rear24.5x32Reference
Ag rear30.5x32Reference
Length672 cmReference
Width99 cmReference
Width243 cmReference
Width356 cmReference
Shipping weight12519 kgReference
Max weight15422 kgReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Steiger Cougar III PTA-280 Height
Hood240 cmReference
Cab342 cmReference
Exhaust395 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
