Tractor · 1983Unverified

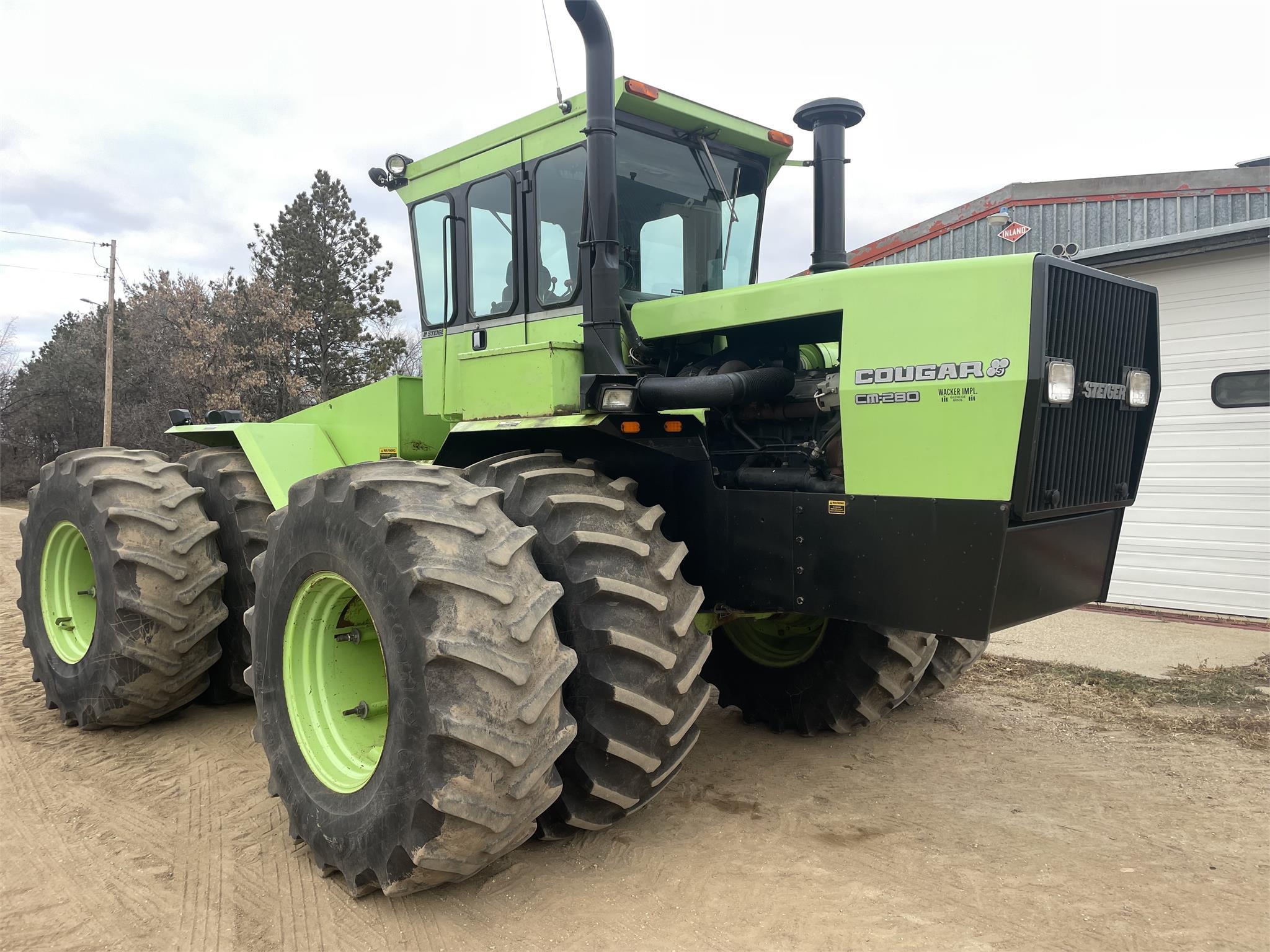

Steiger Cougar IV CM-280

Name: Steiger Cougar IV CM-280
Brand: Steiger

Steiger Cougar IV CM-280 — IV Series · 280 hp. Reference specifications; pending source verification.

The Steiger Cougar IV CM-280 is a tractor with a 280 horsepower rating, positioning it among the more powerful models in its class. Manufactured between 1983 and 1985, this tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system via a 20-speed gearbox. Its listed weight is 11,344 kilograms. The Cougar IV CM-280 is suitable for large-scale operations, covering areas of around 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

280 hp

Weight

11344 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

280 hp

Recorded weight

11344 kg

Transmissions

20-speed gear

Production years

1983-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteigerReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Articulated power steeringReference

Hydraulic disc brakesReference

Steiger Safari Cab standard with air-conditioning.Reference

Engine

Caterpillar 14.6L 6-cyl dieselReference

Fuel tank1010.6 LReference

Engine208.8 kWReference

Drawbar (claimed)187.9 kWReference

Caterpillar 3406Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.6 LReference

Bore/Stroke137 x 165 mmReference

Power208.8 kWReference

Rated RPM2100Reference

Operating RPM1700-2100Reference

Torque1281.4 NmReference

Torque RPM1200Reference

Starter typeelectricReference

Oil capacity34.1 LReference

Coolant capacity66.2 LReference

Transmission

20-speed gearReference

TypegearReference

Gears20 forward and 4 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure155.1 barReference

Valves3 to 5Reference

Pump flow117.3 lpmReference

Rear TypeIIIReference

Dimensions

Wheelbase327 cmReference

Weight11344 kgReference

Front tire18.4x38Reference

Rear tire18.4x38Reference

Ag front18.4x38Reference

Ag rear18.4x38Reference

Ag front20.8x34Reference

Ag front20.8x38Reference

Ag front23.1x34Reference

Ag front24.5x32Reference

Ag front30.5x32Reference

Ag rear20.8x34Reference

Ag rear20.8x38Reference

Ag rear23.1x34Reference

Ag rear24.5x32Reference

Ag rear30.5x32Reference

Length644 cmReference

Width243 cmReference

Width366 cmReference

Shipping weight11344 kgReference

Max weight15422 kgReference

Electrical

Charging systemalternatorReference

Charging amps90Reference

Batteries3Reference

Battery volts12Reference

Steiger Cougar IV CM-280 Height

240 cmReference

Cab342 cmReference

Exhaust395 cmReference

Speeds

With 18.4x38 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
