Tractor · 1985Unverified

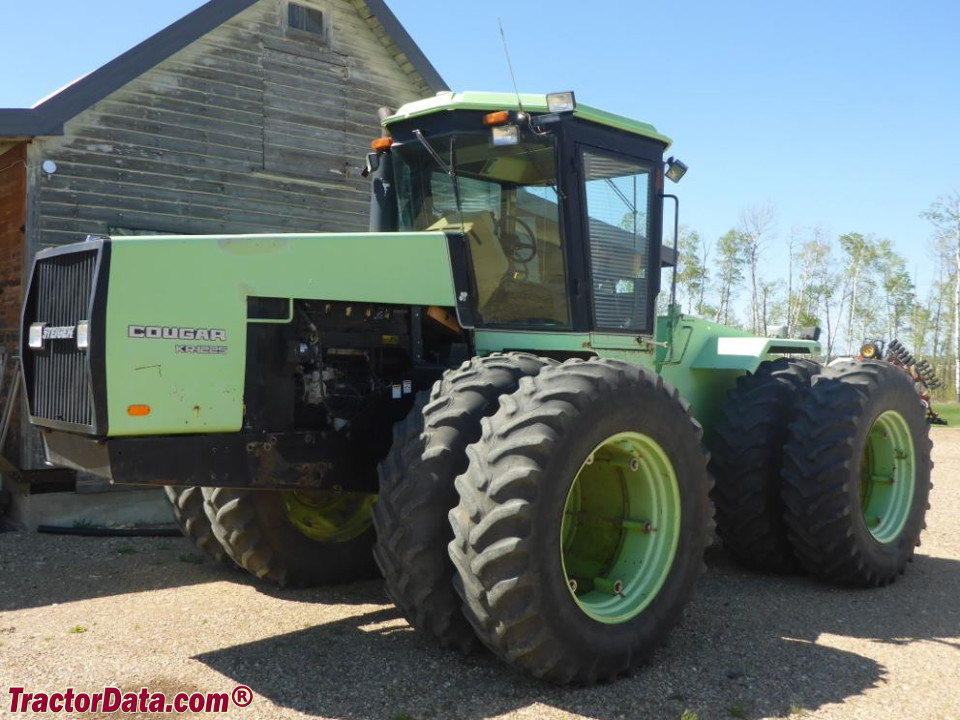

Steiger Cougar KR-1225
Steiger Cougar KR-1225 — Four-wheel Drive (4WD) tractor · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Weight
11249 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$80,000 (1985)Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standardReference
Variants
CR1225Caterpillar 225 HPReference
KR1225Cummin 225 HPReference
CR1280Caterpillar 280 HPReference
KR1280Cummins 280 HPReference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine167.8 kWReference
Cummins LT-10-AReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power167.8 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Transmission
20-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (low/high) with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)141.7 kWReference
Typeclosed-center load sensingReference
Valves3Reference
Pump flow113.6 lpmReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Dimensions
Weight11249 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Front axleFlangeReference
Front axleBarReference
Flange rear axleReference
Bar rear axleReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
