Tractor · 1985Unverified

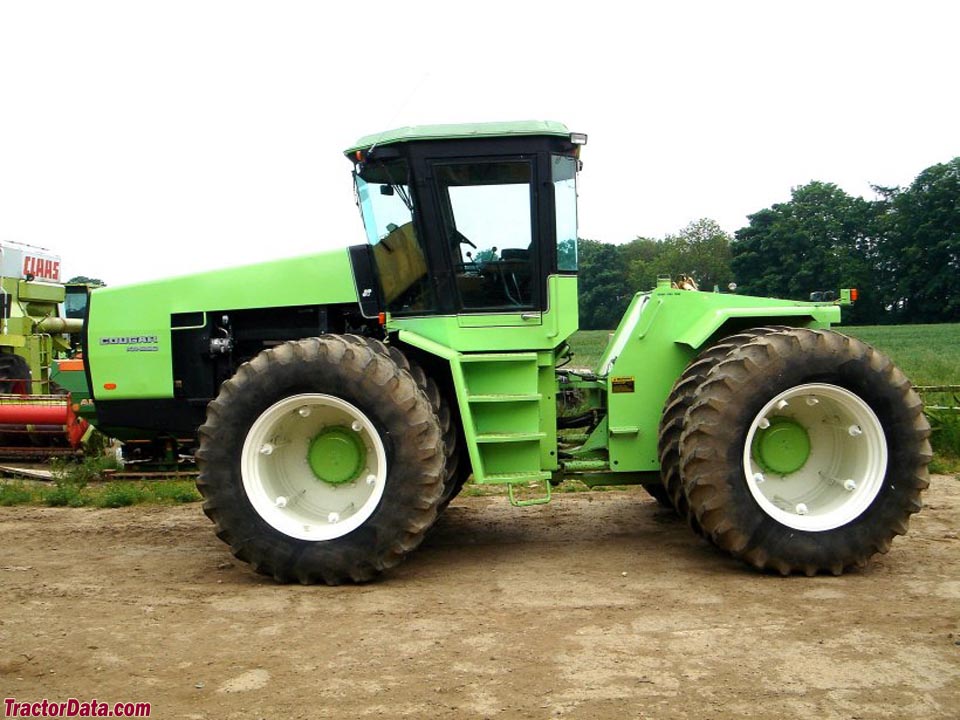

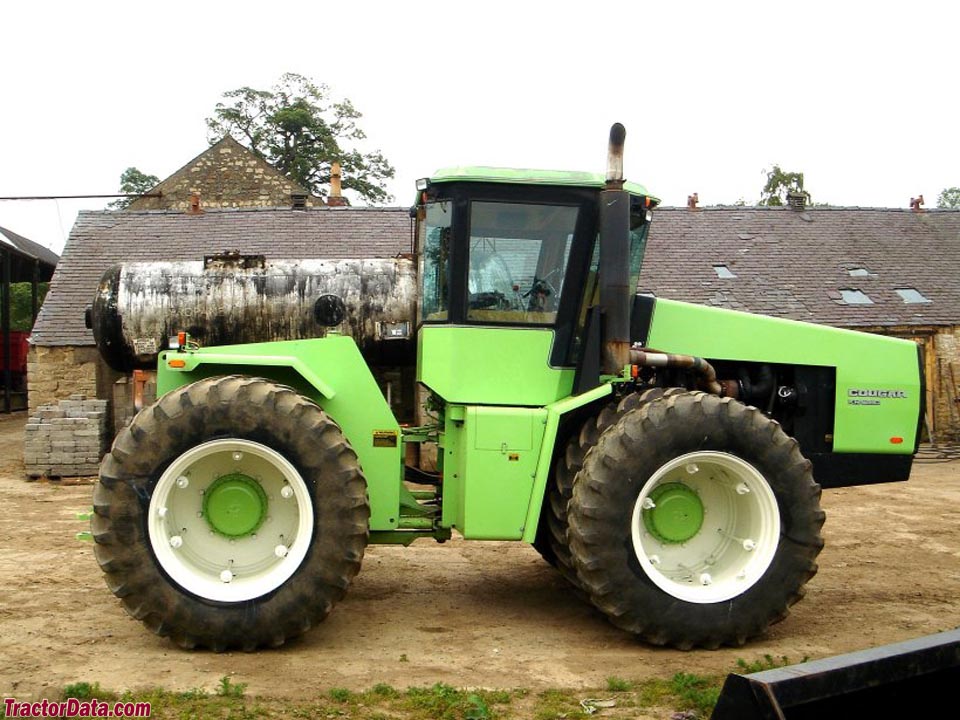

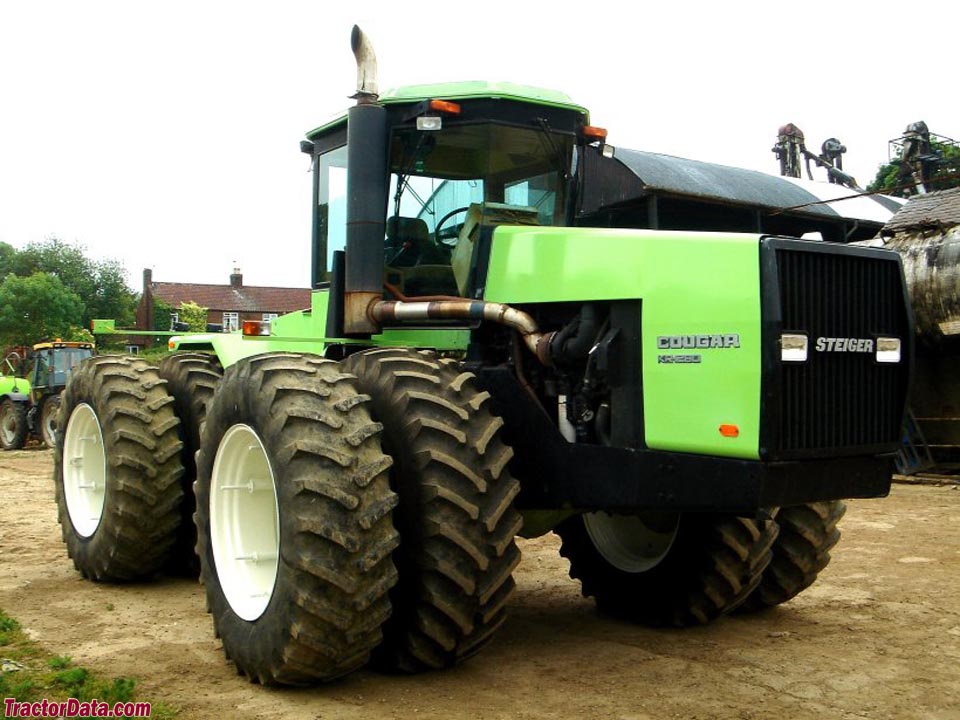

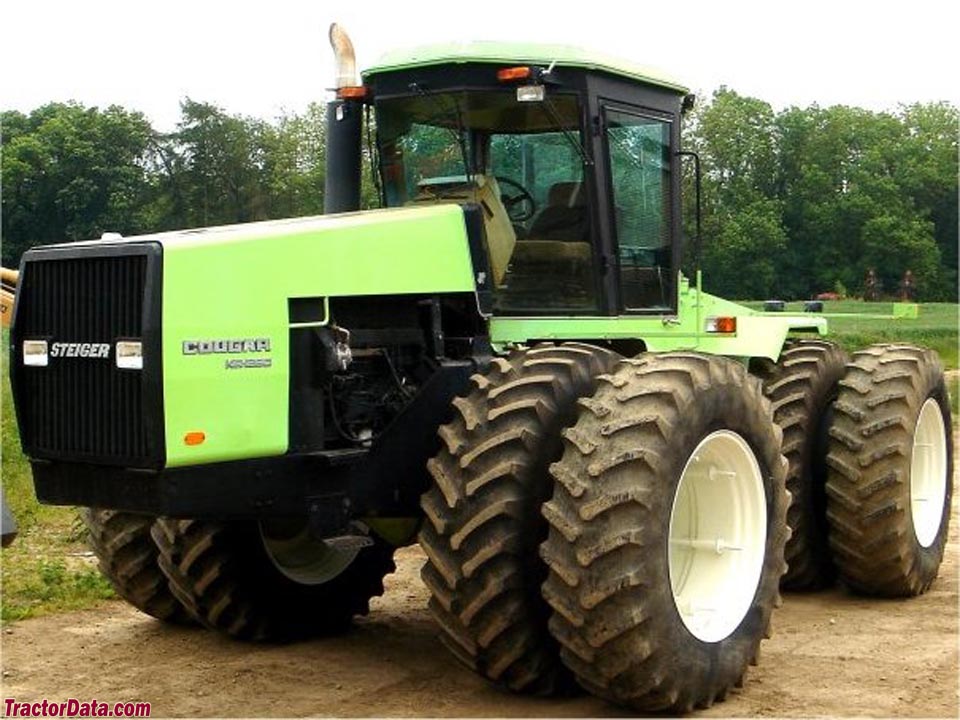

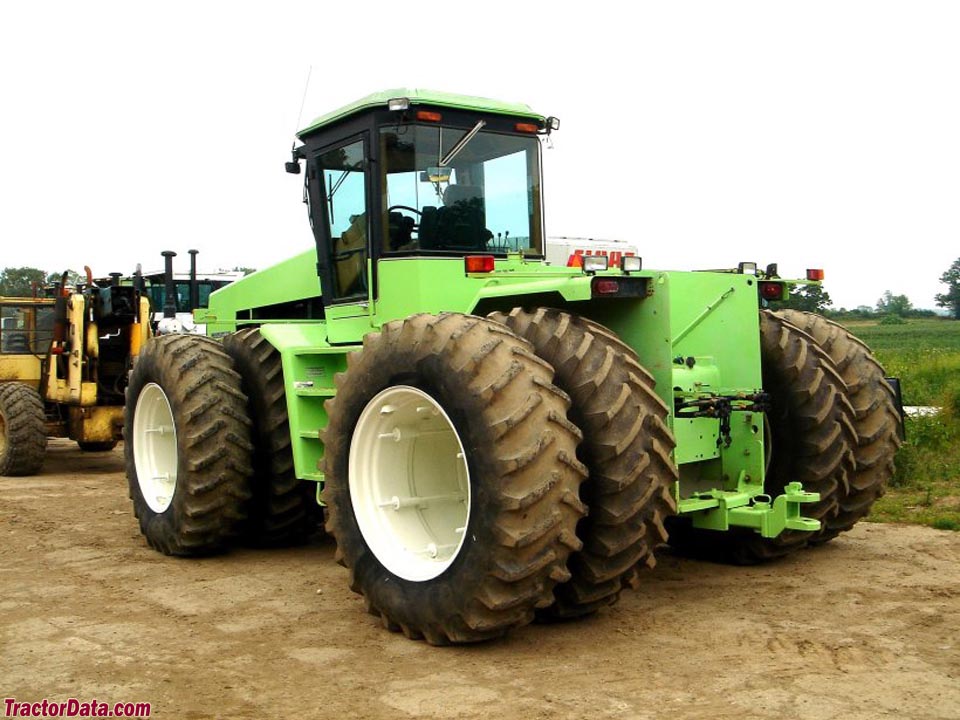

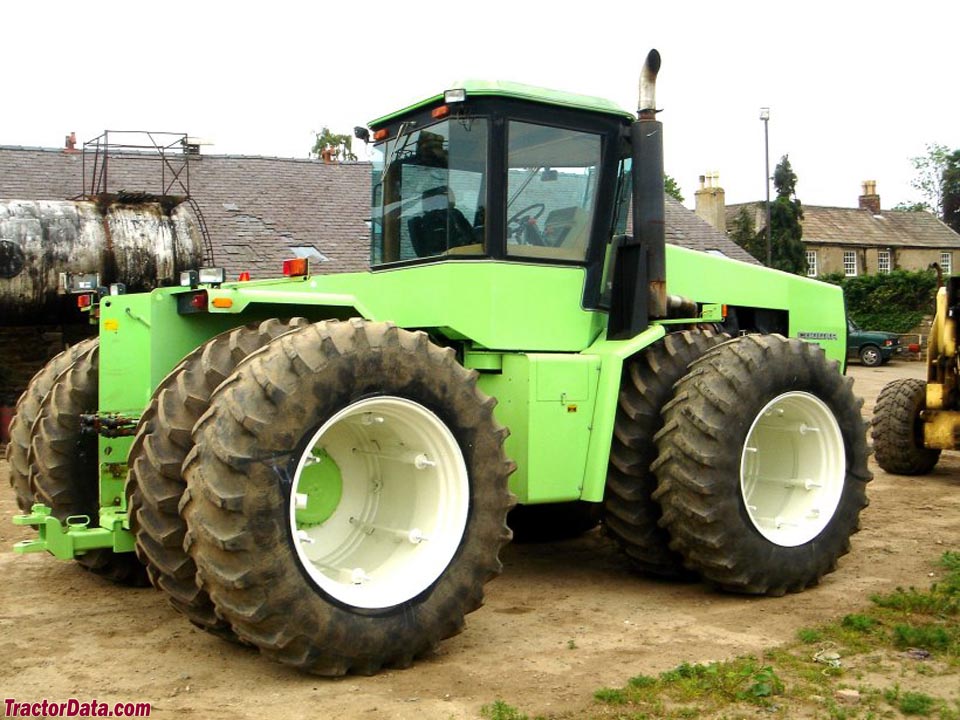

Steiger Cougar KR-1280
Steiger Cougar KR-1280 — Four-wheel Drive (4WD) tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
10614 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standardReference
Variants
CR1225Caterpillar 225 HPReference
KR1225Cummin 225 HPReference
CR1280Caterpillar 280 HPReference
KR1280Cummins 280 HPReference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine208.8 kWReference
Drawbar (claimed)171.5 kWReference
Cummins LTA-10Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
New pump settings, specified in 1989, increased engine output to 310 horsepower and 1040 lb-ft of torque.Reference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power208.8 kWReference
Rated RPM2100Reference
Torque1234.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
20-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (low/high) with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)186.4 kWReference
Typeclosed-center load sensingReference
Valves3Reference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Weight10614 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Front axleFlangeReference
Front axleBarReference
Flange rear axleReference
Bar rear axleReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
