Industrial Tractor · 1982Unverified

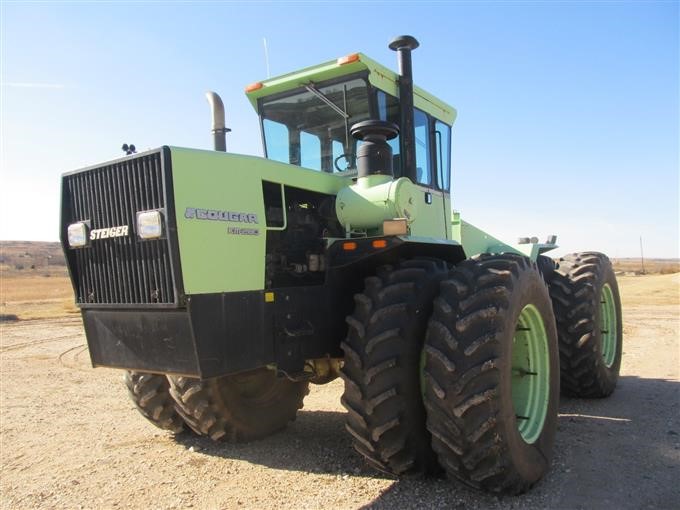

Steiger CU-280
Steiger CU-280 — Industrial tractor · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Industrial tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Pneumatic disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine208.8 kWReference
Cummins NT-855-C280Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power208.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
10-speed power shiftReference
TransmissionAllison HT 754 CRDReference
Typepower shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Valves4Reference
Pump flow166.5 lpmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
