Tractor · 1986Unverified

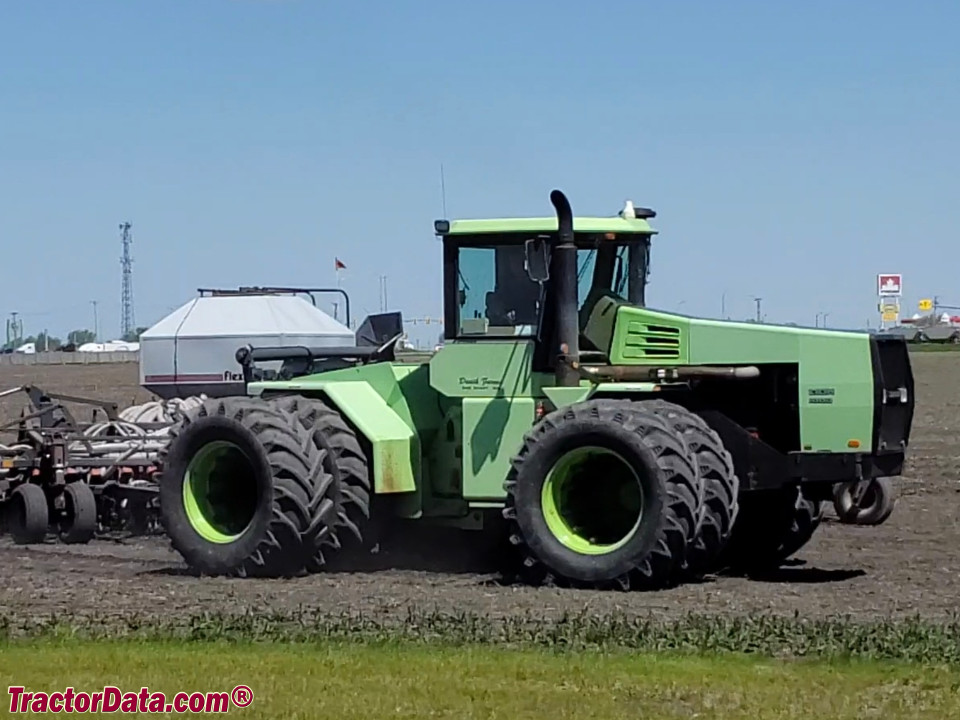

Steiger Lion 1000
Steiger Lion 1000 — Four-wheel Drive (4WD) tractor · 375 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
375 hp
Weight
13154 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9180similar CaseIH modelReference
Engine
Cummins 14.0L 6-cyl dieselReference
Caterpillar 14.6L 6-cyl dieselReference
Engine279.6 kWReference
Drawbar (claimed)235.6 kWReference
Cummins NTA-855Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power279.6 kWReference
Air cleanerdryReference
Rated RPM2100Reference
Torque1716.7 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity62.5 LReference
Caterpillar 3406 DITAReference
liquid-cooledReference
Displacement14.6 LReference
Coolant capacity76.8 LReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchhydraulic wet discReference
Capacities
Fuel893.3 LReference
PTO & Hydraulics
Hydraulic system98.4 LReference
Typeclosed center load sensing pressure compensatingReference
Capacity98.4 LReference
Pressure172.4 barReference
Valves3 or 4Reference
Pump flow151.4 lpmReference
Rear TypeIVReference
Dimensions
Wheelbase359 cmReference
Weight13154 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Length713 cmReference
Width111 cmReference
Width243 cmReference
Width416 cmReference
Height (cab)354 cmReference
Height (exhaust)379 cmReference
Shipping weight13154 kgReference
Max weight18144 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries4Reference
Battery CCA625Reference
Battery volts12Reference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
