Tractor · 1982Unverified

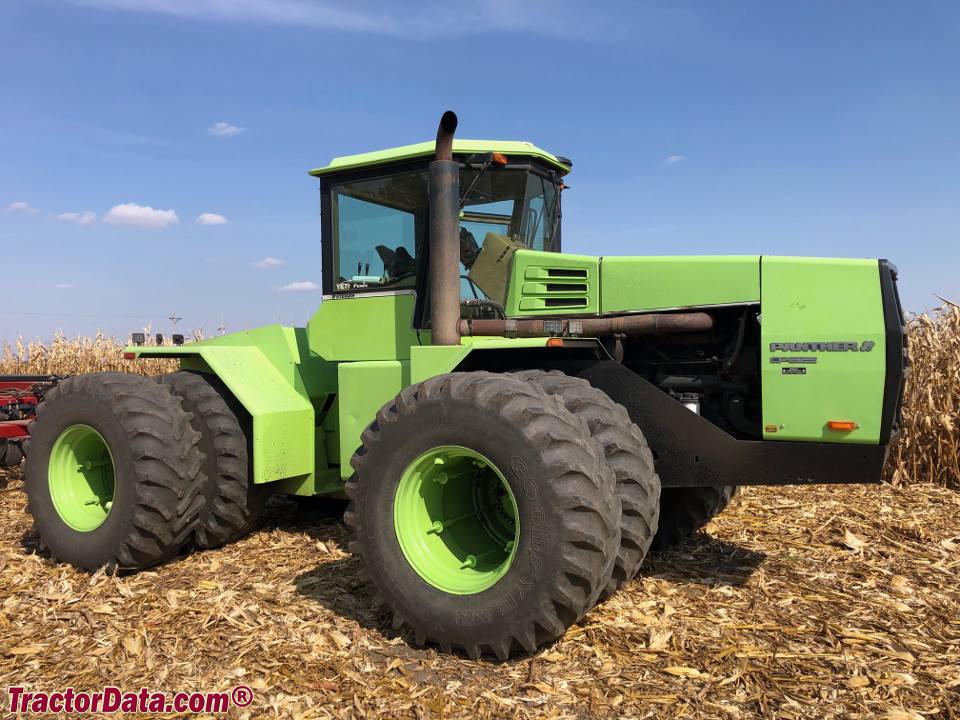

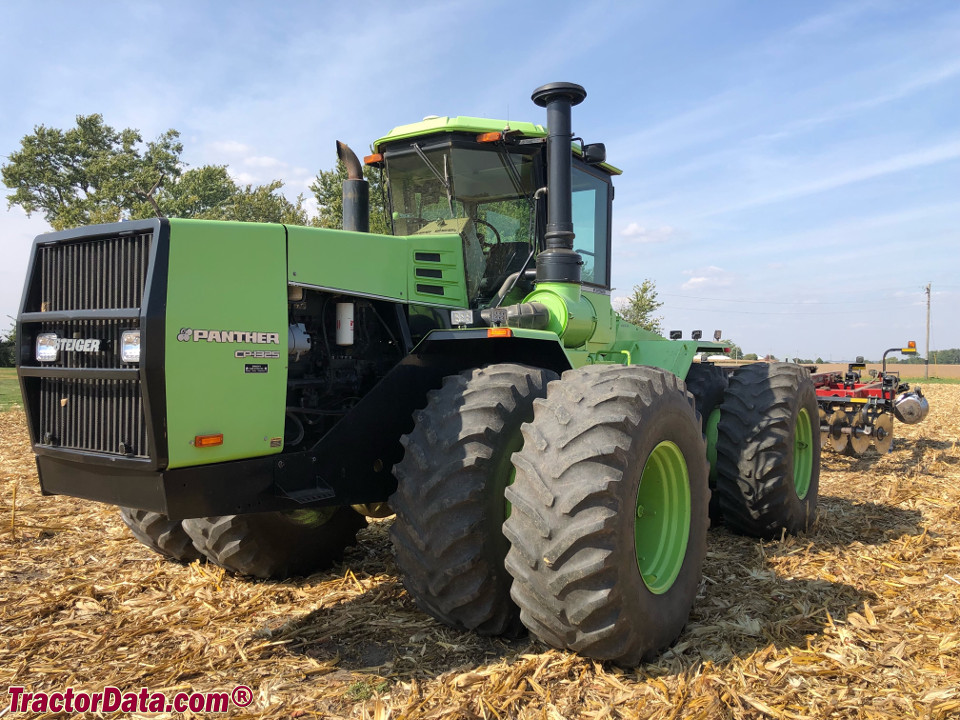

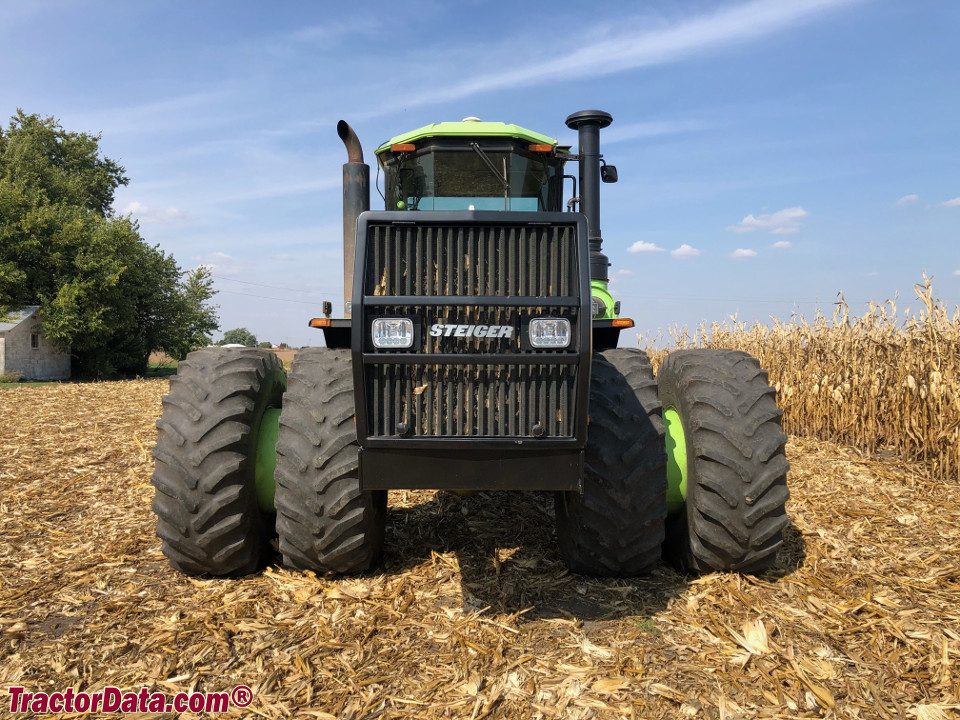

Steiger Panther CP-1325
Steiger Panther CP-1325 — Four-wheel Drive (4WD) tractor · 299 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
299 hp
Max power
195.2 kW
Weight
16102 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $125,000 in 1985Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference

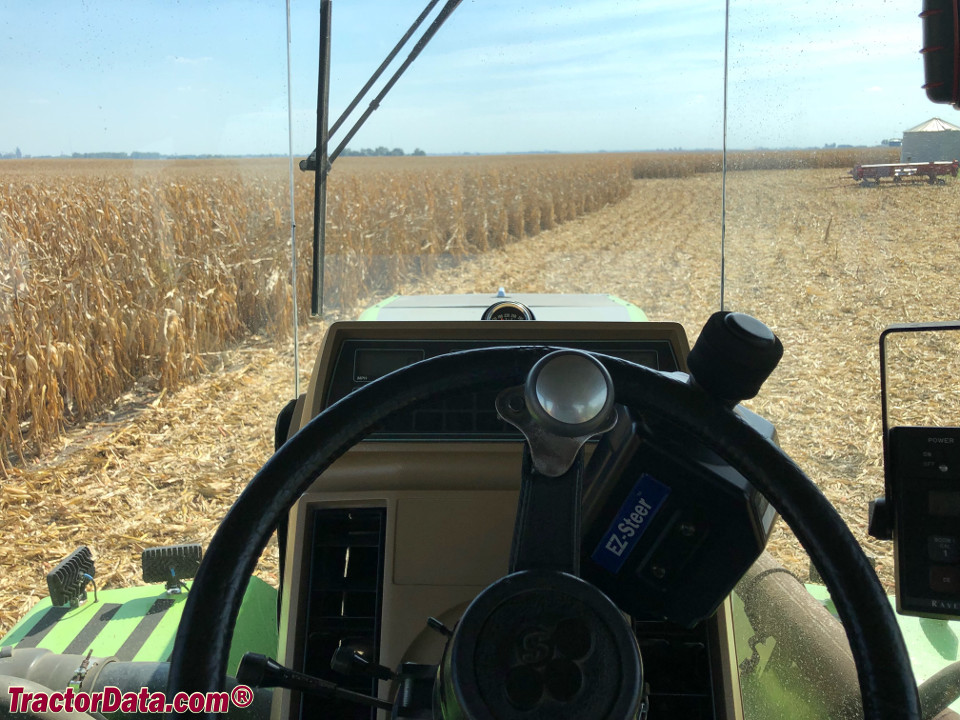

Cab standard with air-conditioning.Reference
Variants
CP-1325Caterpillar 325HPReference
KP-1325Cummins 325HPReference
CP-1360Caterpillar 360HPReference
KP-1360Cummins 360HPReference
CP-1400Caterpillar 400HPReference
KP-1400Cummins 400HPReference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine242.4 kWReference
Drawbar (tested)195.2 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Air cleanerdual dry elementReference
Compression14.5:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed223.0 kWReference
Max power195.2 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulc wet discReference

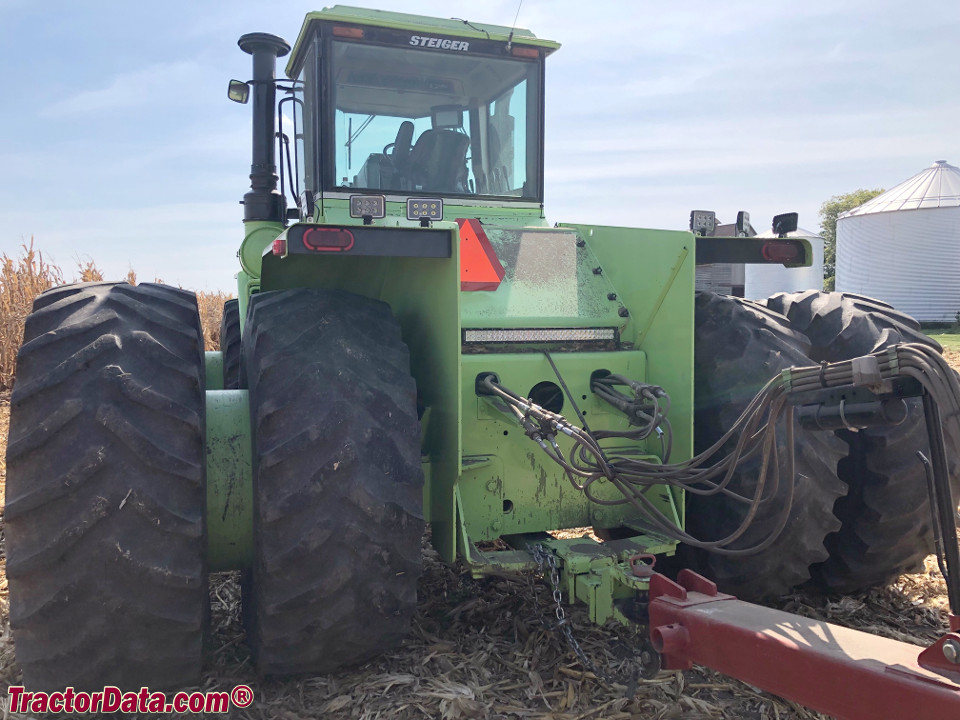

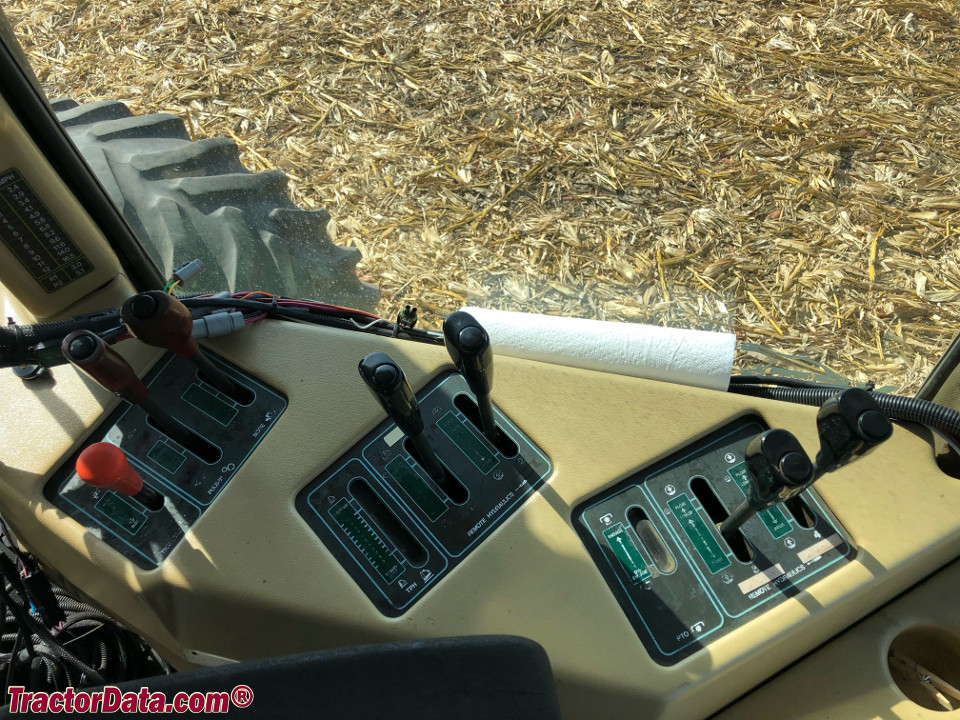

PTO & Hydraulics
PTO (tested)223.0 kWReference
Typeclosed centerReference
Valves3Reference
Rear TypeIII/IVReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase359 cmReference
Weight16102 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Panther CP-1325 Serial Numbers
1982P03-00501Reference
1983P03-02501Reference
1984P03-03001Reference
1985P03-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDSeptember 27 - October 13, 1982Link: Nebraska Tractor Test 1453 fileReference
PTO performanceReference
Fuel use68.5 l/hourReference
Drawbar performanceReference
Fuel use67.4 l/hourReference
Gear 7 used for power test.Reference
Max pull15332 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
