Tractor · 1982Unverified

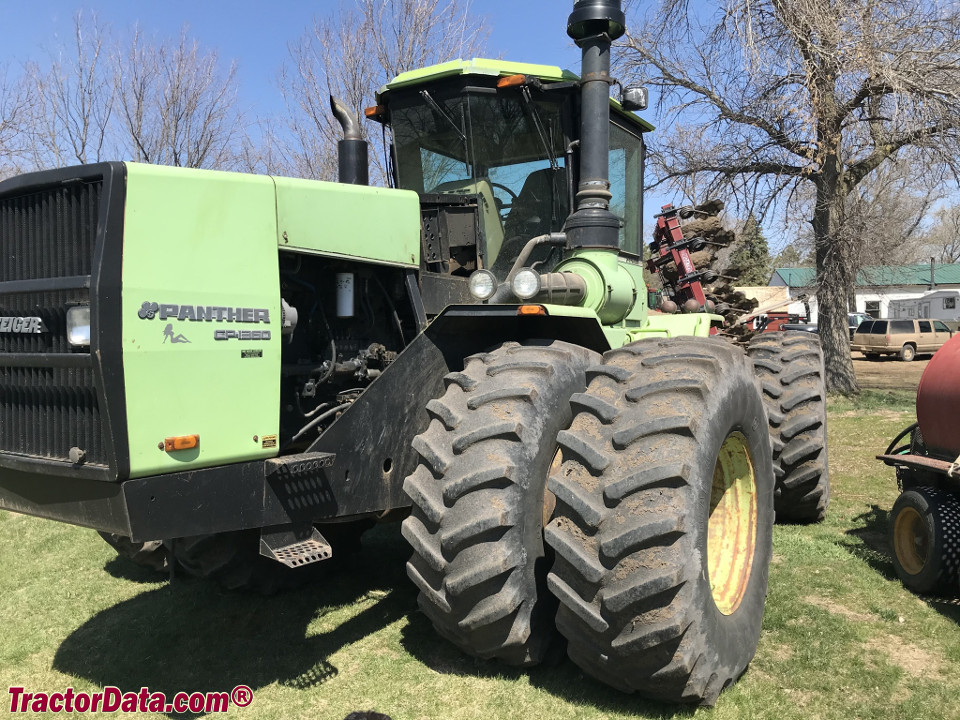

Steiger Panther CP-1360
Steiger Panther CP-1360 — Four-wheel Drive (4WD) tractor · 334 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
334 hp
Max power
216.2 kW
Weight
16012 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $136,000 in 1985Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
CP-1325Caterpillar 325HPReference
KP-1325Cummins 325HPReference
CP-1360Caterpillar 360HPReference
KP-1360Cummins 360HPReference
CP-1400Caterpillar 400HPReference
KP-1400Cummins 400HPReference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine268.5 kWReference
Drawbar (tested)216.2 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power268.5 kWReference
Air cleanerdual dry elementReference
Compression14.5:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed249.3 kWReference
Max power216.2 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (tested)249.3 kWReference
Typeclosed centerReference
Valves3Reference
Rear TypeIII/IVReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase359 cmReference
Weight16012 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Panther CP-1360 Serial Numbers
1982P07-00501Reference
1983P07-02501Reference
1984P07-03001Reference
1985P07-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDSeptember 20 - October 9, 1982Link: Nebraska Tractor Test 1455 fileReference
PTO performanceReference
Fuel use75.7 l/hourReference
Drawbar performanceReference
Fuel use55.3 l/hourReference
Gear 7 used for power test.Reference
Max pull16385 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
