Tractor · 1982Unverified

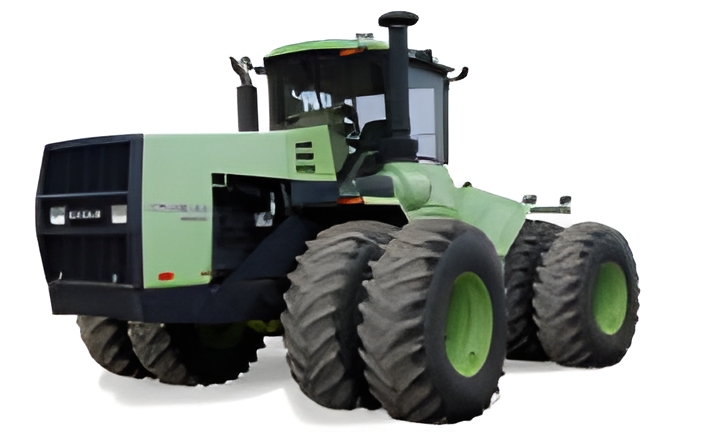

Steiger Panther CP-1400
Steiger Panther CP-1400 — Four-wheel Drive (4WD) tractor · 400 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
400 hp
Max power
243.5 kW
Weight
16556 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $145,000 in 1985Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Variants
CP-1325Caterpillar 325HPReference
KP-1325Cummins 325HPReference
CP-1360Caterpillar 360HPReference
KP-1360Cummins 360HPReference
CP-1400Caterpillar 400HPReference
KP-1400Cummins 400HPReference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine298.3 kWReference
Drawbar (claimed)246.8 kWReference
Drawbar (tested)243.5 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power298.3 kWReference
Air cleanerdual dry elementReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power243.5 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulc wet discReference
PTO & Hydraulics
Typeclosed centerReference
Valves3Reference
Dimensions
Wheelbase359 cmReference
Weight16556 kgReference
Front tire30.5L-32Reference
Rear tire30.5L-32Reference
Ag front30.5L-32Reference
Ag rear30.5L-32Reference
Panther CP-1400 Serial Numbers
1982P09-00501Reference
1983P09-02501Reference
1984P09-03001Reference
1985P09-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDNovember 17 - December 7, 1982Link: Nebraska Tractor Test 1464 fileReference
Drawbar performanceReference
Fuel use82.9 l/hourReference
Gear 7 used for power test.Reference
Max pull18267 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
