Tractor · 1974Unverified

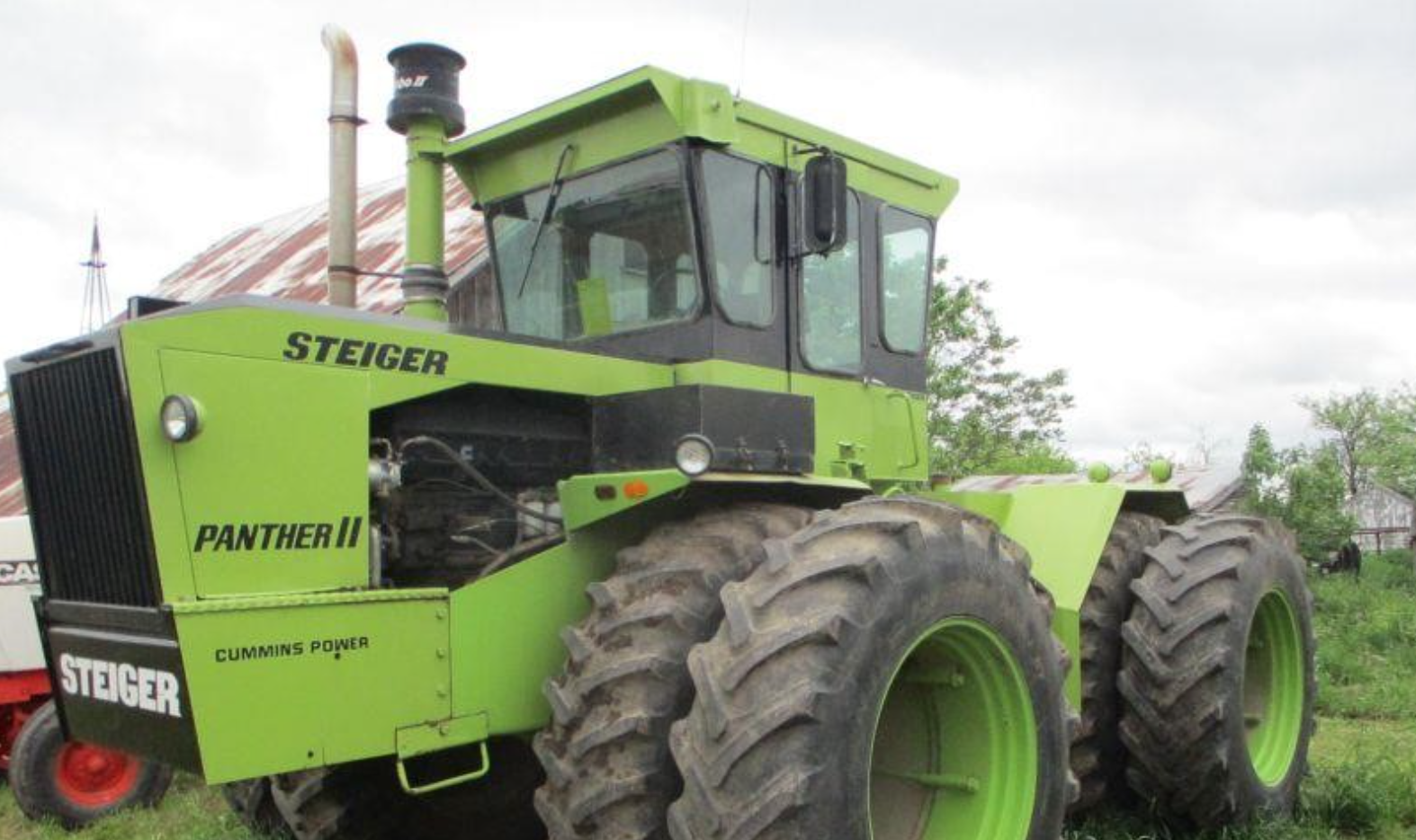

Steiger Panther II ST-310
Steiger Panther II ST-310 — II Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
952 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with optional heat and air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank783.5 LReference
Engine231.2 kWReference
Drawbar (claimed)195.4 kWReference
Cummins NT-855-C310Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power231.2 kWReference
Compression14:1Reference
Rated RPM2100Reference
Torque1206.8 NmReference
Torque RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity39.7 LReference
Coolant capacity18.9 LReference
Coolant capacity31.2 LReference
Transmission
10-speedReference
TransmissionDana-Spicer 1010Reference
Gears10 forward and 2 reverseReference
Oil capacity53.8 LReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Valves3Reference
Pump flow78.0 lpmReference
Steering flow88.9 lpmReference
Steering press.103.4 barReference
Rear TypeIIIReference
Dimensions
Wheelbase309 cmReference
Weight952 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Ag front23.1-30Reference
Ag front30.5-32Reference
Ag front18.4-34Reference
Ag front23.1-34Reference
Ag front18.4-38Reference
Ag front20.8-38Reference
Ag rear23.1-30Reference
Ag rear30.5-32Reference
Ag rear18.4-34Reference
Ag rear23.1-34Reference
Ag rear18.4-38Reference
Ag rear20.8-38Reference
Length596 cmReference
Width241 cmReference
Height (hood)241 cmReference
Height (cab)342 cmReference
Shipping weight952 kgReference
Max weight13154 kgReference
Ground clearance50 cmReference
Panther II ST-310 Serial Numbers
197490001Reference
197590037Reference
197690337Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps54Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 24.5x32 tires.Reference
