Tractor · 1980Unverified

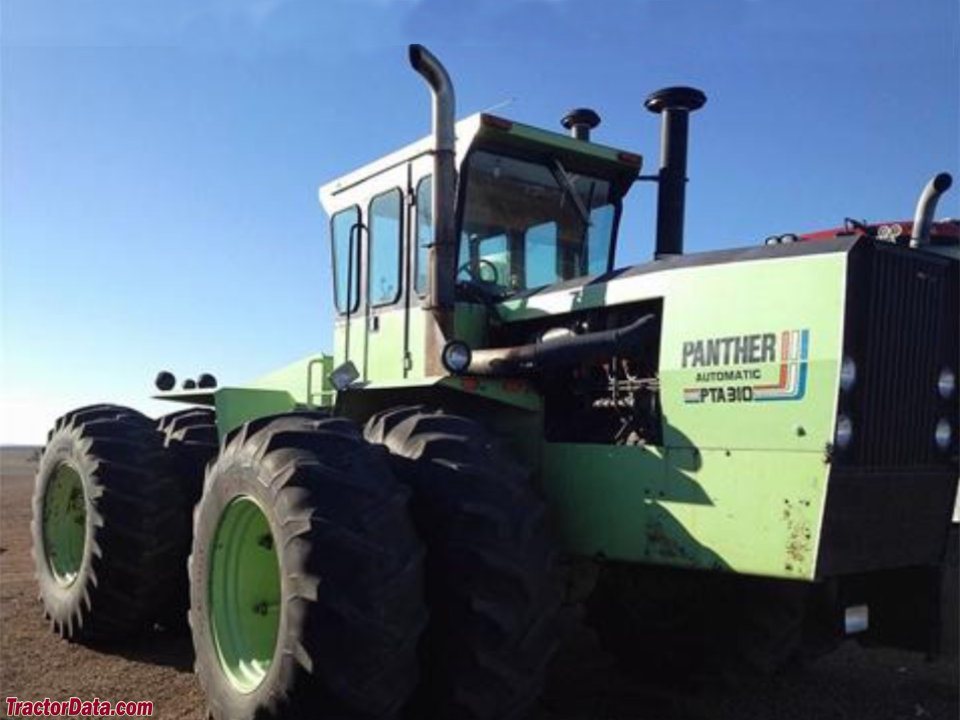

Steiger Panther III PTA-310
Steiger Panther III PTA-310 — III Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
12882 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $100,500 in 1982Reference
A Steiger Panther III PTA-310 was the "Pink Panther", a custom-ordered pink Panther III. Steiger used the "Pink Panther" in advertising.Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine231.2 kWReference
Cummins NTA-855CReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power231.2 kWReference
Rated RPM2100Reference
Torque1328.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity33.1 LReference
Coolant capacity54.9 LReference
Transmission
10-speed power shift with torque converterReference
TransmissionAllison HT-754Reference
Typepower shift with torque converterReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow108.3 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase336 cmReference
Weight12882 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Ag front18.4-30Reference
Ag front18.4-34Reference
Ag front18.4-38Reference
Ag front20.8-34Reference
Ag front20.8-38Reference
Ag front23.1-30Reference
Ag front24.5-32Reference
Ag front32.5-32Reference
Ag rear18.4-30Reference
Ag rear18.4-34Reference
Ag rear18.4-38Reference
Ag rear20.8-34Reference
Ag rear20.8-38Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear32.5-32Reference
Length671 cmReference
Width132 cmReference
Width243 cmReference
Shipping weight12882 kgReference
Max weight15422 kgReference
Electrical
GroundnegativeReference
Charging amps90Reference
Battery volts12Reference
Steiger Panther III PTA-310 Height
Hood240 cmReference
Cab342 cmReference
Exhaust395 cmReference
Speeds
With 23.1x34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
