Tractor · 1980Unverified

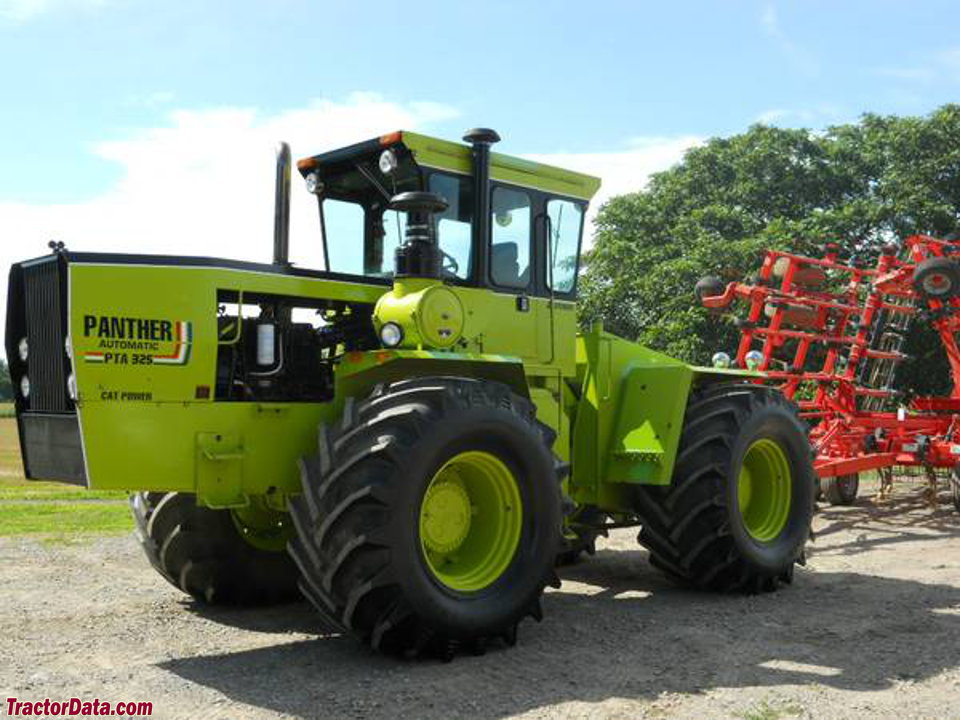

Steiger Panther III PTA-325
Steiger Panther III PTA-325 — III Series · 325 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Weight
13428 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $110,000 in 1982Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with air-conditioning.Reference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Engine242.4 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Fuel systemdirect injectionReference
Compression14.5:1Reference
Rated RPM2100Reference
Idle RPM600-2300Reference
Torque1376.3 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity34.1 LReference
Coolant capacity49.2 LReference
Transmission
10-speed power shift with torque converterReference
TransmissionAllison HT 754Reference
Typepower shift with torque converterReference
Gears10 forward and 2 reverseReference
Capacities
Fuel851.6 LReference
PTO & Hydraulics
Hydraulic system83.3 LReference
Typeopen centerReference
Capacity83.3 LReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow110.9 lpmReference
SCV flow30.3 lpmReference
SCV flow75.7 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase336 cmReference
Weight13428 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Ag front18.4-30Reference
Ag front18.4-34Reference
Ag front18.4-38Reference
Ag front20.8-34Reference
Ag front20.8-38Reference
Ag front23.1-30Reference
Ag front24.5-32Reference
Ag front32.5-32Reference
Ag rear18.4-30Reference
Ag rear18.4-34Reference
Ag rear18.4-38Reference
Ag rear20.8-34Reference
Ag rear20.8-38Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear32.5-32Reference
Length671 cmReference
Width132 cmReference
Width243 cmReference
Shipping weight13428 kgReference
Max weight15422 kgReference
Electrical
GroundnegativeReference
Charging systemDelco-Remy alternatorReference
Charging amps90Reference
Batteries4Reference
Battery CCA475Reference
Battery volts12Reference
Steiger Panther III PTA-325 Height
Hood240 cmReference
Cab342 cmReference
Exhaust395 cmReference
Speeds
With 23.1x34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
