Tractor · 1976Unverified

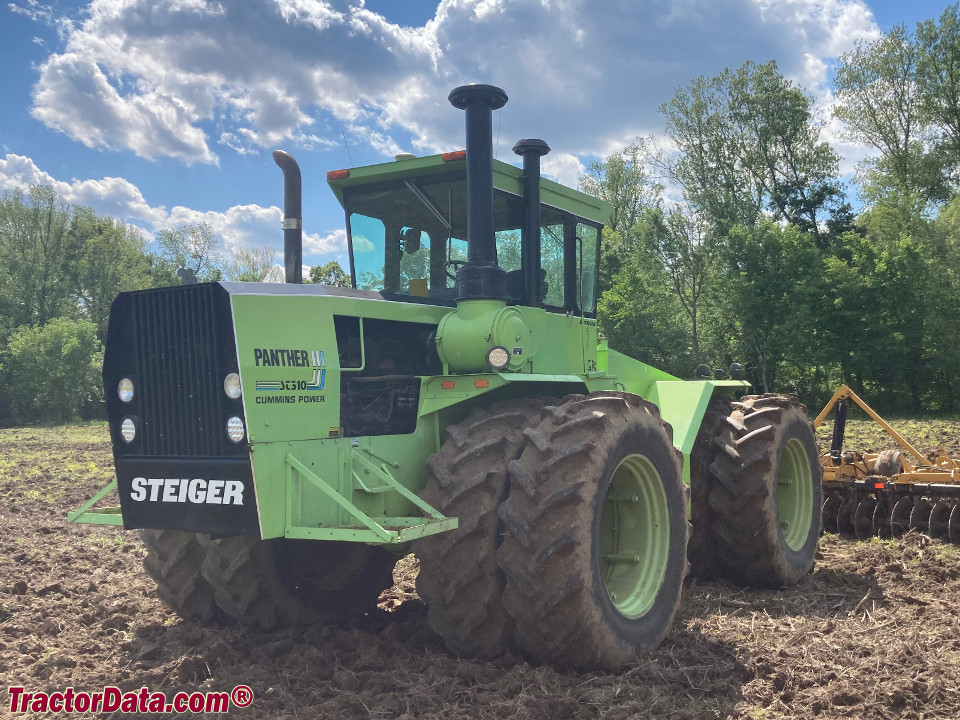

Steiger Panther III ST-310
Steiger Panther III ST-310 — III Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Max power
184.0 kW
Weight
12111 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $98,700 in 1983Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference

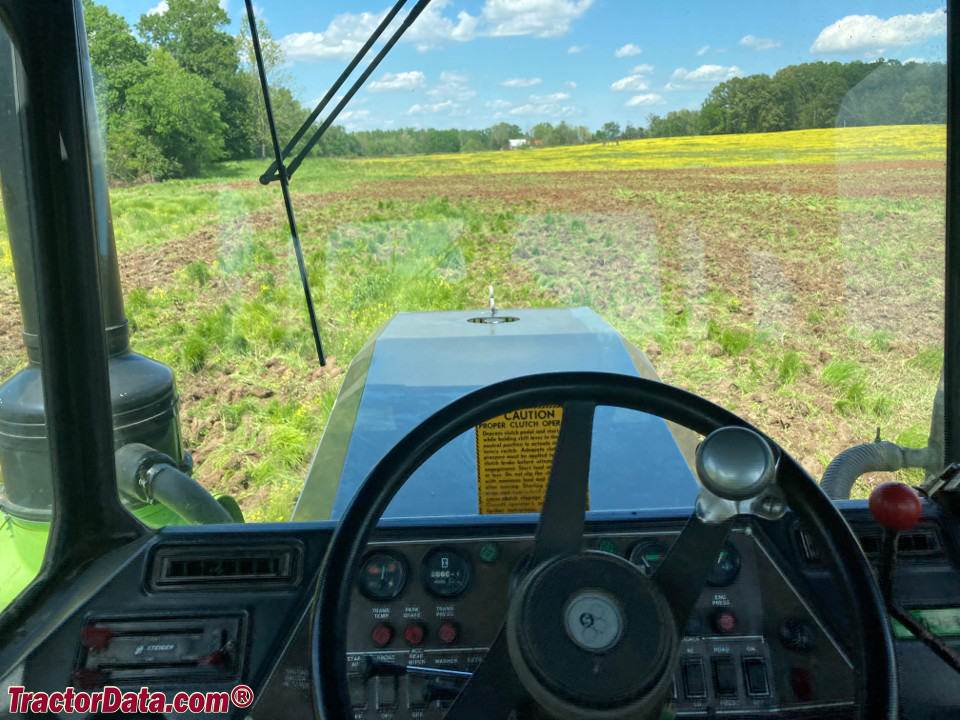

Safari Cab standard with heat and air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine231.2 kWReference
Drawbar (tested)184.0 kWReference
Cummins NTA-855CReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power231.2 kWReference
Air cleanertwo paper elementsReference
Compression14.1:1Reference
Rated RPM2100Reference
Idle RPM830-2260Reference
Torque1328.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity33.1 LReference
Coolant capacity59.6 LReference
Max power184.0 kWReference
Transmission
10-speedReference
20-speedReference
TransmissionSpicer SST 1010Reference
Gears10 forward and 2 reverseReference
Clutchhydraulic dry discsReference
TransmissionDana-Spicer 1010-3BReference
Gears20 forward and 4 reverseReference
Ten-speed transmission with two-speed transfer case.Reference
Capacities
Fuel1010.6 LReference
PTO & Hydraulics
Hydraulic system124.9 LReference
Typeopen centerReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow108.3 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase325 cmReference
Weight12111 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Length640 cmReference
Width243 cmReference
Height (exhaust)395 cmReference
Shipping weight12111 kgReference
Max weight15422 kgReference
Front axleRaba 598Reference
Raba 598 rear axleReference
Panther III ST-310 Serial Numbers
1976107-00001Reference
1977107-00314Reference
1978107-00463Reference
1979107-00612Reference
1980107-00887Reference
1981107-01079Reference
1982107-01501Reference
1983107-02501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH208Reference
Battery Group8DReference
Test results
Diesel 10-speed 4WDApril 4 - May 2, 1977Link: Nebraska Tractor Test 1235 fileReference
Drawbar performanceReference
Fuel use67.0 l/hourReference
Gear 6 used for power test.Reference
Max pull12136 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
