Tractor · 1976Unverified

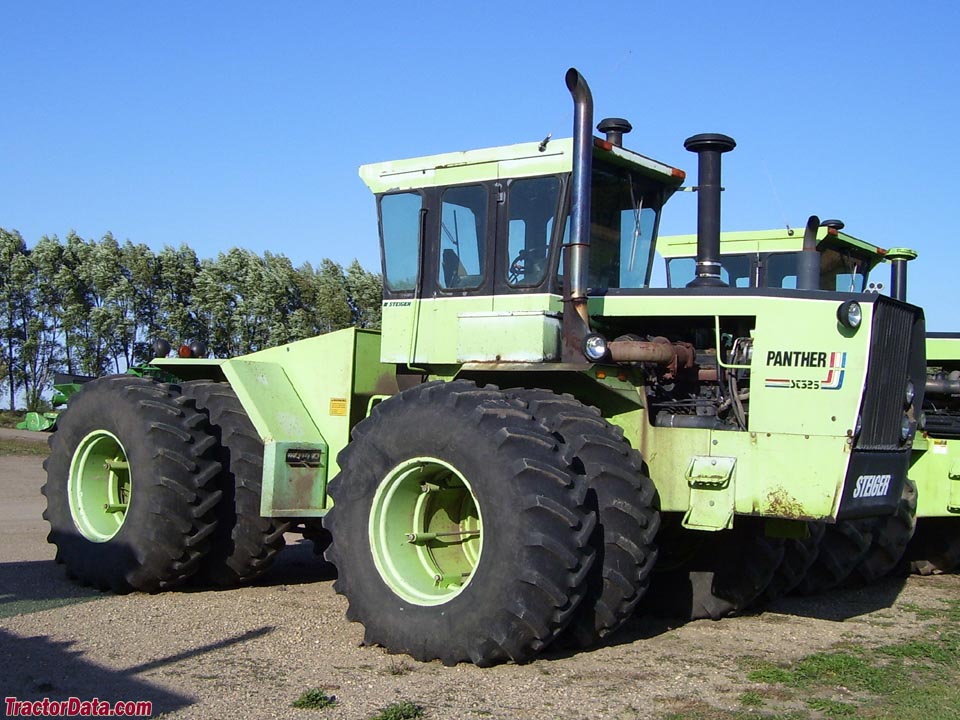

Steiger Panther III ST-325
Steiger Panther III ST-325 — III Series · 325 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Max power
201.2 kW
Weight
12201 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $103,000 in 1983Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with heat and air-conditioning.Reference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank1010.6 LReference
Engine242.4 kWReference
Drawbar (tested)201.2 kWReference
Caterpillar 3406DITReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Compression14.5:1Reference
Rated RPM2100Reference
Torque1376.3 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity34.1 LReference
Coolant capacity66.2 LReference
Max power201.2 kWReference
Transmission
10-speedReference
20-speedReference
Gears10 forward and 2 reverseReference
Clutchhydraulic dry discsReference
TransmissionDana-Spicer 1010-3BReference
Gears20 forward and 4 reverseReference
Clutch393.7mm dry discReference
Ten-speed transmission with two-speed transfer case.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow120.7 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase325 cmReference
Weight12201 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Ag front18.4-30Reference
Ag front18.4-34Reference
Ag front18.4-38Reference
Ag front20.8-34Reference
Ag front20.8-38Reference
Ag front23.1-30Reference
Ag front23.1-34Reference
Ag front30.5-32Reference
Ag rear18.4-30Reference
Ag rear18.4-34Reference
Ag rear18.4-38Reference
Ag rear20.8-34Reference
Ag rear20.8-38Reference
Ag rear23.1-30Reference
Ag rear23.1-34Reference
Ag rear30.5-32Reference
Length640 cmReference
Width243 cmReference
Height (exhaust)395 cmReference
Shipping weight12201 kgReference
Max weight15422 kgReference
Clearance (rear axle)50 cmReference
Panther III ST-325 Serial Numbers
1976123-00001Reference
1977123-00123Reference
1978123-00370Reference
1979123-00627Reference
1980123-00887Reference
1981123-01124Reference
1982123-01501Reference
1983123-02501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH208Reference
Battery Group8DReference
Test results
Diesel 10-speed 4WDApril 11 - May 2, 1977Link: Nebraska Tractor Test 1236 fileReference
Drawbar performanceReference
Fuel use68.9 l/hourReference
Gear 5 used for power test.Reference
Max pull12786 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
