Tractor · 1977Unverified

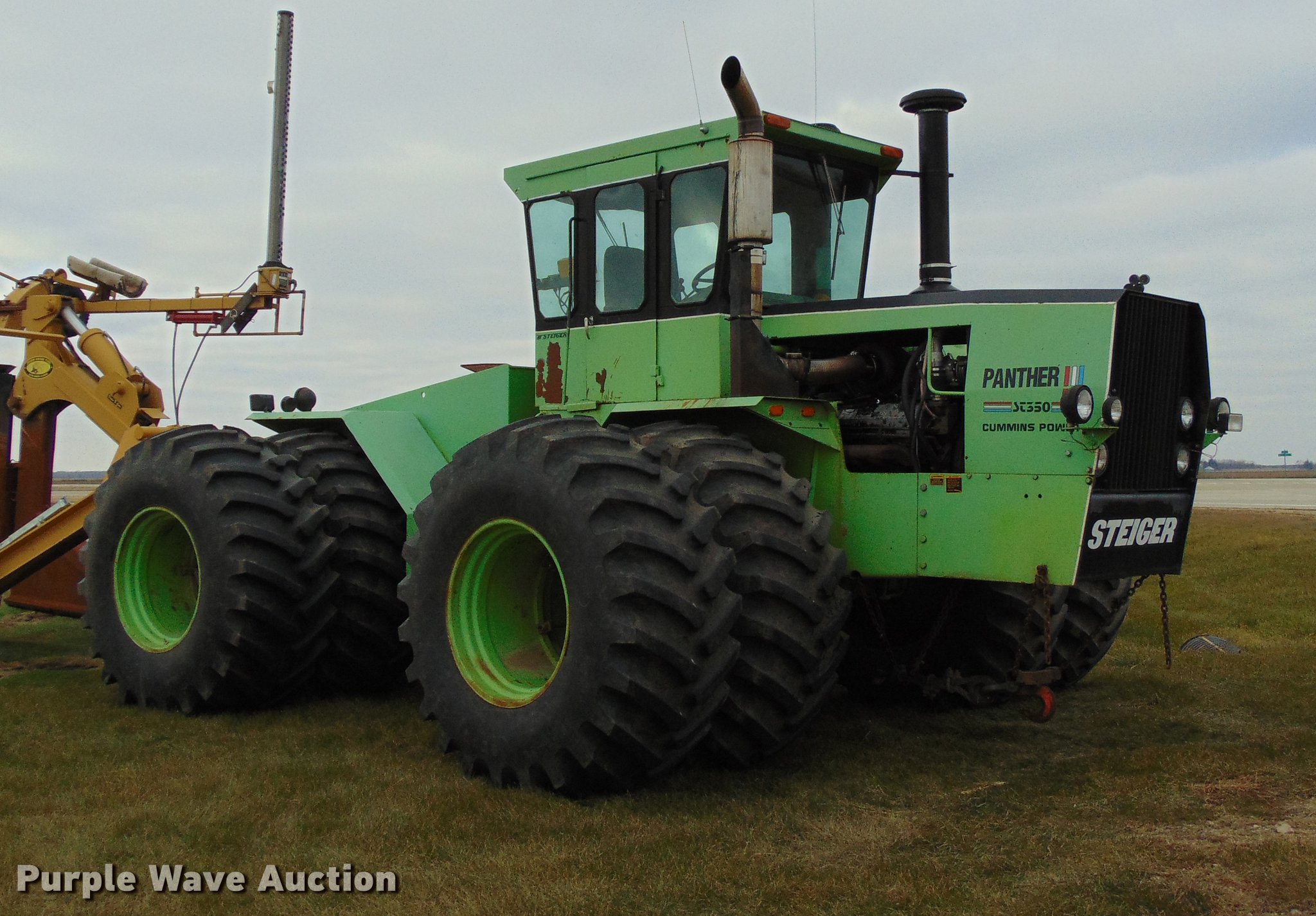

Steiger Panther III ST-350
Steiger Panther III ST-350 — III Series · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Weight
12111 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $94,700 in 1981Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with heat and air-conditioning.Reference
Engine
Cummins 14.8L 8-cyl dieselReference
Engine261.0 kWReference
Drawbar (claimed)231.9 kWReference
Cummins VT-903Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooledReference
Displacement14.8 LReference
Bore/Stroke140 x 121 mmReference
Power261.0 kWReference
Compression15.5:1Reference
Rated RPM2600Reference
Idle RPM830-2860Reference
Torque1149.9 NmReference
Torque RPM1800Reference
Starter volts12Reference
Oil capacity36.0 LReference
Coolant capacity64.4 LReference
Transmission
10-speedReference
20-speedReference
TransmissionSpicer SST 1010Reference
Gears10 forward and 2 reverseReference
Clutchhydraulic dry discsReference
Gears20 forward and 4 reverseReference
Clutch394mm dry discReference
Ten-speed transmission with two-speed transfer case.Reference
Capacities
Fuel1010.6 LReference
PTO & Hydraulics
Hydraulic system124.9 LReference
Typeopen centerReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves4Reference
Pump flow113.9 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase325 cmReference
Weight12111 kgReference
Front tire20.8-34Reference
Rear tire20.8-34Reference
Ag front20.8-34Reference
Ag rear20.8-34Reference
Length640 cmReference
Width243 cmReference
Height (exhaust)395 cmReference
Shipping weight12111 kgReference
Max weight15422 kgReference
Front axleRaba 598Reference
Raba 598 rear axleReference
Panther III ST-350 Serial Numbers
1977139-00001Reference
1978139-00011Reference
1979139-00031Reference
1980139-00061Reference
1981139-00069Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH208Reference
Battery Group8DReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
