Tractor · 1983Unverified

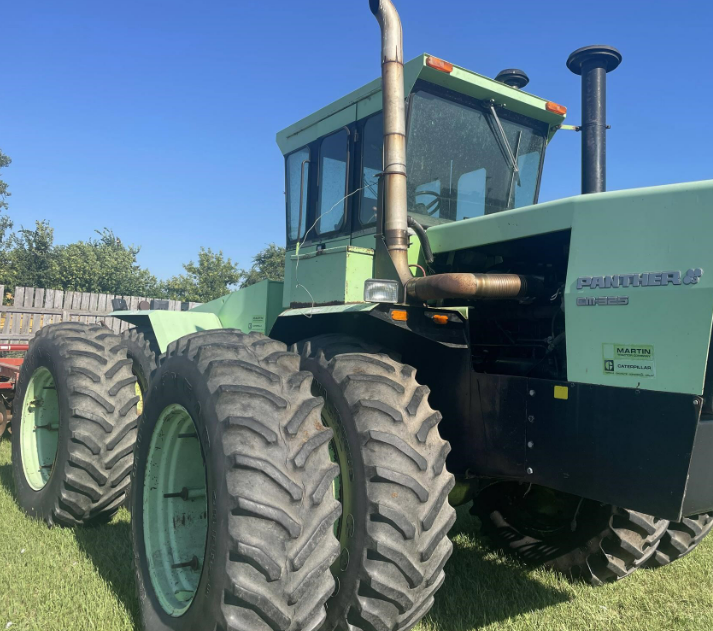

Steiger Panther IV CM-325
Steiger Panther IV CM-325 — IV Series · 325 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Weight
12203 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Steiger Safari Cab standard with air-conditioning.Reference
Variants
CM325Caterpillar gear shiftReference
CS325Caterpillar power shiftReference
KM325Cummins gear shiftReference
KS325Cummins power shiftReference
SM325Komatsu gear shiftReference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Fuel tank1010.6 LReference
Engine242.4 kWReference
Drawbar (claimed)203.6 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Rated RPM2100Reference
Operating RPM1700-2100Reference
Torque1423.8 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity34.1 LReference
Coolant capacity66.2 LReference
Transmission
20-speed Constant mesh 10-speed transmission with 2-speed transfer case.Reference
TransmissionSpicer SST 1010Reference
TypeConstant mesh 10-speed transmission with 2-speed transfer case.Reference
Gears20 forward and 4 reverseReference
PTO & Hydraulics
Typeopen center load sensingReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow117.3 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase327 cmReference
Weight12203 kgReference
Front tire23.1x34Reference
Rear tire23.1x34Reference
Ag front23.1x34Reference
Ag rear23.1x34Reference
Ag front20.8x34Reference
Ag front20.8x38Reference
Ag front24.5x32Reference
Ag front30.5x32Reference
Ag rear20.8x34Reference
Ag rear20.8x38Reference
Ag rear24.5x32Reference
Ag rear30.5x32Reference
Length644 cmReference
Width243 cmReference
Width405 cmReference
Shipping weight12203 kgReference
Max weight15422 kgReference
Front tread200 to 346 cmReference
Rear tread200 to 346 cmReference
Panther IV CM-325 Serial Number Location
Serial number plate on the left-side fender.Reference
Panther IV CM-325 Serial Numbers
1983123-03001Reference
1984123-03201Reference
1985123-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries3Reference
Battery volts12Reference
Steiger Panther IV CM-325 Height
Hood240 cmReference
Cab342 cmReference
Exhaust395 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
