Tractor · 1984Unverified

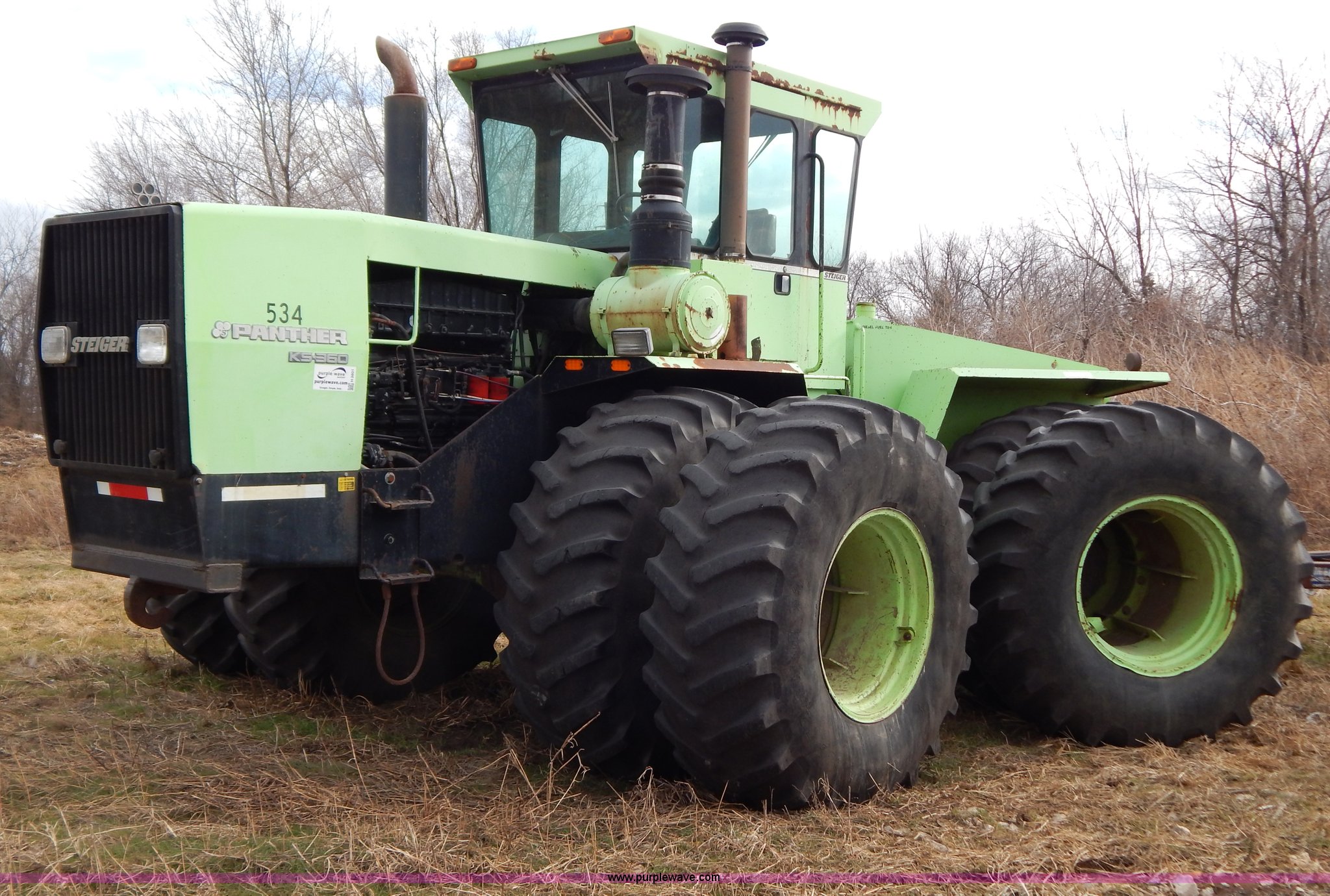

Steiger Panther IV KS-360
Steiger Panther IV KS-360 — IV Series · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Weight
12244 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank851.6 LReference
Engine268.5 kWReference
Drawbar (claimed)216.3 kWReference
Cummins NTA-855-AReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power268.5 kWReference
Rated RPM2100Reference
Torque1552.6 NmReference
Torque RPM1200Reference
Starter typeelectricReference
Oil capacity33.1 LReference
Coolant capacity59.6 LReference
Transmission
10-speed power shiftReference
TransmissionAllison HT 754CRDReference
Typepower shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Valves3 to 5Reference
Pump flow108.3 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase336 cmReference
Weight12244 kgReference
Front tire20.8-38Reference
Rear tire20.8-38Reference
Ag front20.8-38Reference
Ag rear20.8-38Reference
Ag front24.5-32Reference
Ag front30.5-32Reference
Ag front23.1-34Reference
Ag rear24.5-32Reference
Ag rear30.5-32Reference
Ag rear23.1-34Reference
Length676 cmReference
Width132 cmReference
Width243 cmReference
Shipping weight12244 kgReference
Max weight15422 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery volts12Reference
Steiger Panther IV KS-360 Height
Hood240 cmReference
Cab342 cmReference
Exhaust395 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
