Tractor · 1984Unverified

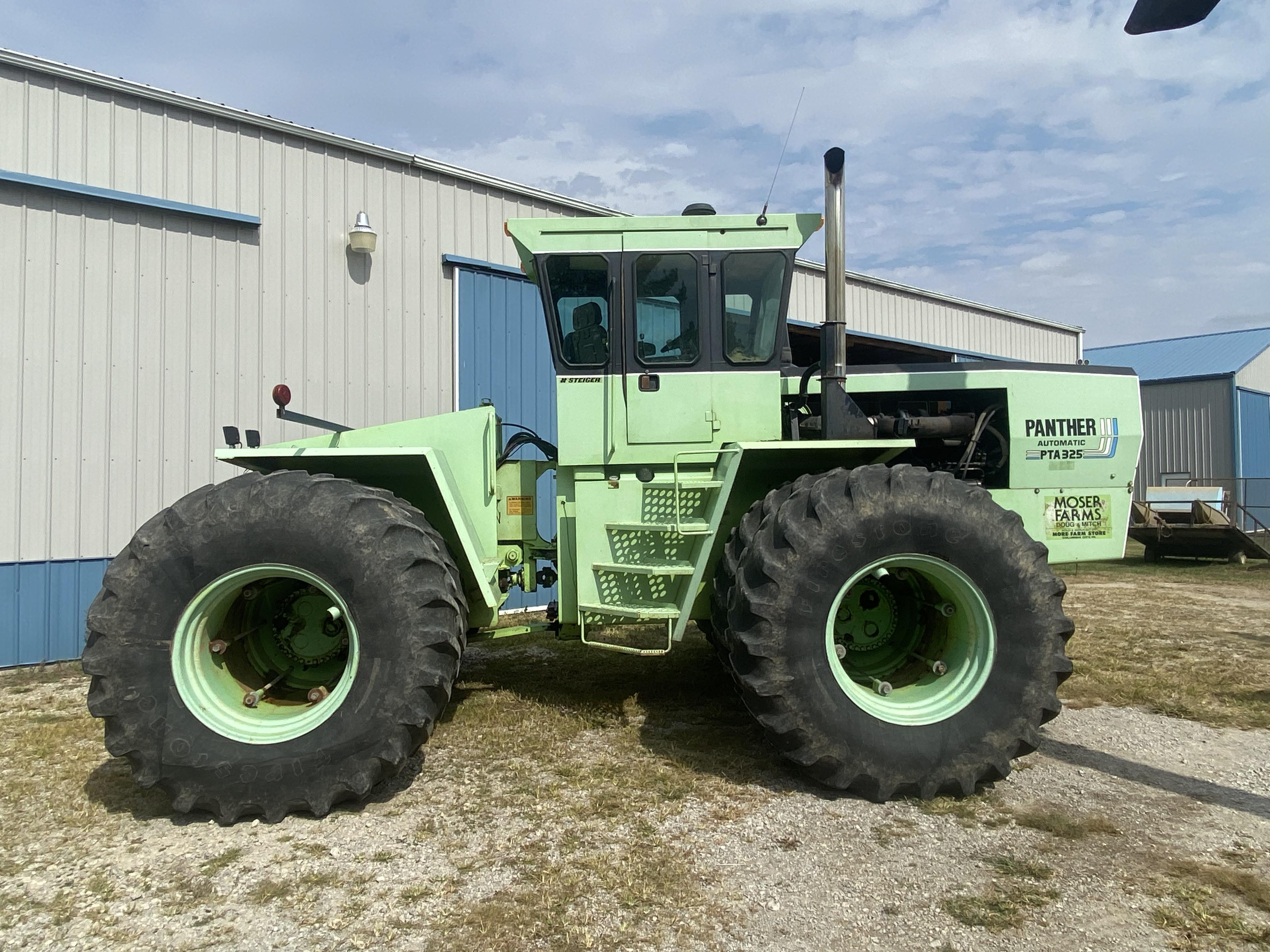

Steiger Panther IV SM-325
Steiger Panther IV SM-325 — IV Series · 325 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Max power
202.0 kW
Weight
13154 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $103,000 in 1985Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard.Reference
Variants
CM325Caterpillar gear shiftReference
CS325Caterpillar power shiftReference
KM325Cummins gear shiftReference
KS325Cummins power shiftReference
SM325Komatsu gear shiftReference
Engine
Komatsu 11.0L 6-cyl dieselReference
Engine242.4 kWReference
Drawbar (claimed)202.1 kWReference
Drawbar (tested)202.0 kWReference
KomatsuReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.0 LReference
Bore/Stroke125 x 150 mmReference
Power242.4 kWReference
Rated RPM2100Reference
Starter volts12Reference
Max power202.0 kWReference
Transmission
20-speed Constant mesh 10-speed transmission with 2-speed transfer case.Reference
TransmissionSpicer SST 1010Reference
TypeConstant mesh 10-speed transmission with 2-speed transfer case.Reference
Gears20 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves3 or 4Reference
Dimensions
Wheelbase327 cmReference
Weight13154 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Front tread200 to 346 cmReference
Rear tread200 to 346 cmReference
Panther IV SM-325 Serial Numbers
1984119-04001Reference
1985119-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 20-speed 4WDNovember 16 - 26, 1984Link: Nebraska Tractor Test 1550 fileReference
Drawbar performanceReference
Fuel use59.8 l/hourReference
Gear 3B used for power test.Reference
Max pull15264 kgReference
Gear 1C used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
