Tractor · 1982Unverified

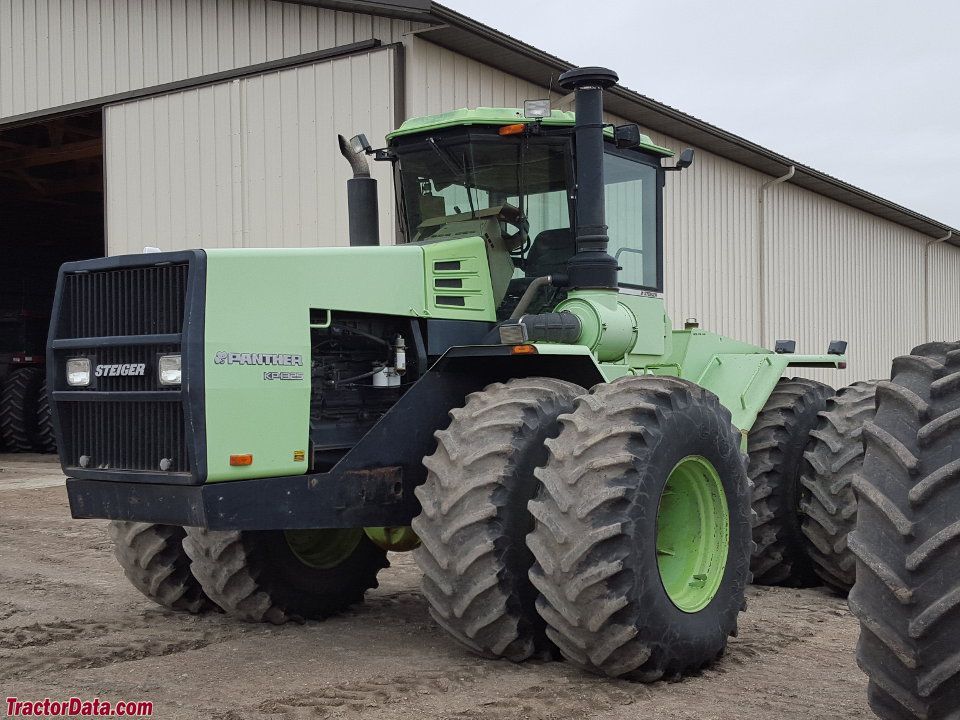

Steiger Panther KP-1325
Steiger Panther KP-1325 — Four-wheel Drive (4WD) tractor · 301 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
301 hp
Max power
197.2 kW
Weight
16012 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $125,000 in 1985Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
CP-1325Caterpillar 325HPReference
KP-1325Cummins 325HPReference
CP-1360Caterpillar 360HPReference
KP-1360Cummins 360HPReference
CP-1400Caterpillar 400HPReference
KP-1400Cummins 400HPReference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine242.4 kWReference
Drawbar (tested)197.2 kWReference
Cummins NTA 855Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power242.4 kWReference
Air cleanerdual dry elementReference
Compression14.1:1Reference
Rated RPM2100Reference
Power at rated engine speed224.6 kWReference
Max power197.2 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulc wet discReference
PTO & Hydraulics
PTO (tested)224.6 kWReference
Typeclosed centerReference
Valves3Reference
Rear TypeIII/IVReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase359 cmReference
Weight16012 kgReference
Front tire23.1-34Reference
Rear tire23.1-34Reference
Ag front23.1-34Reference
Ag rear23.1-34Reference
Operating weight16012 kgReference
Panther KP-1325 Serial Numbers
1982P04-00501Reference
1983P04-02501Reference
1984P05-03001Reference
1985P04-05001Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 12-speed 4WDNovember 22 - December 18, 1982Link: Nebraska Tractor Test 1465 fileReference
PTO performanceReference
Fuel use63.6 l/hourReference
Drawbar performanceReference
Fuel use64.3 l/hourReference
Gear 7 used for power test.Reference
Max pull15543 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
