Tractor · 1982Unverified

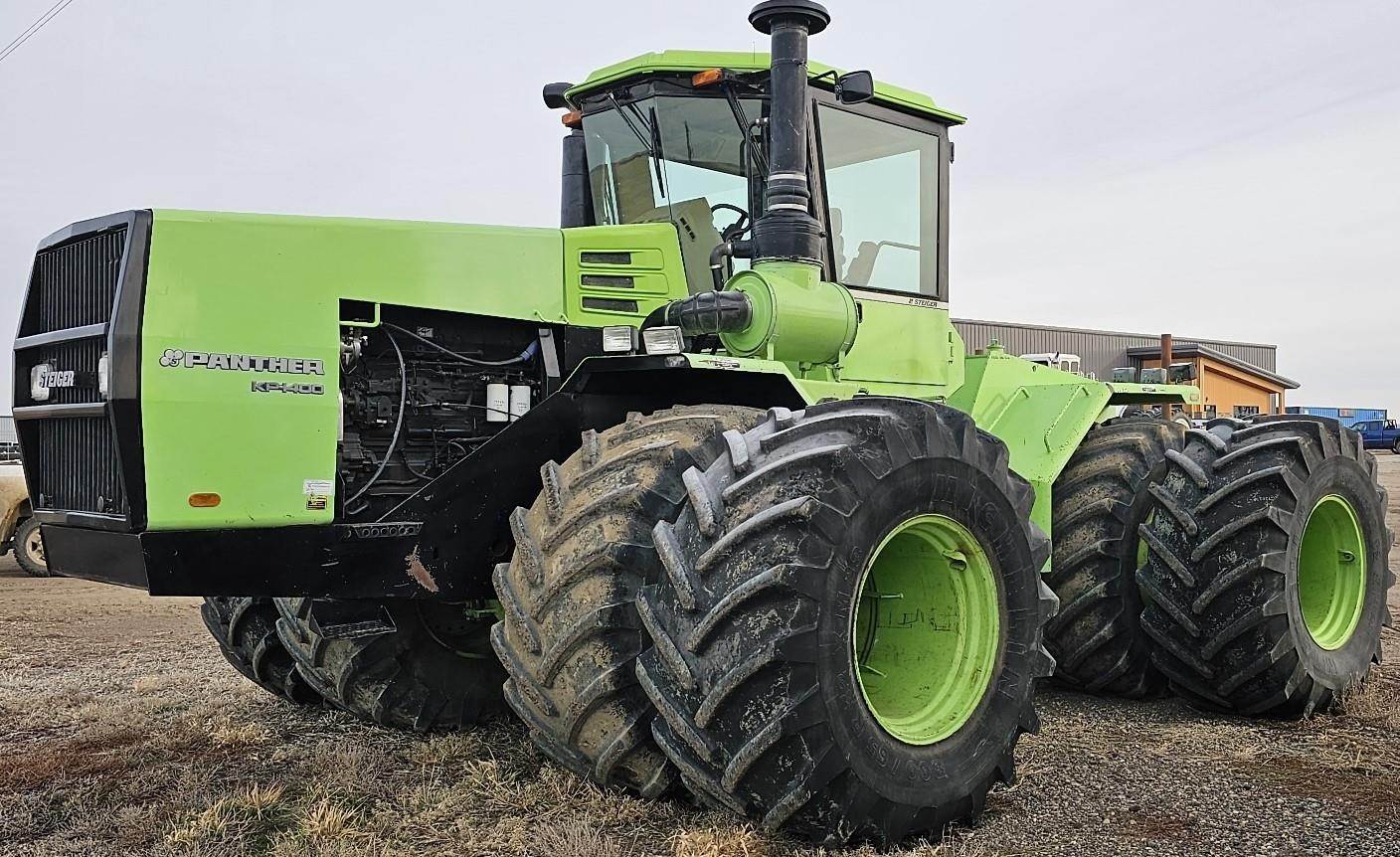

Steiger Panther KP-1400
Steiger Panther KP-1400 — Four-wheel Drive (4WD) tractor · 400 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
400 hp
Max power
244.5 kW
Weight
16579 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $145,000 in 1985Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Variants
CP-1325Caterpillar 325HPReference
KP-1325Cummins 325HPReference
CP-1360Caterpillar 360HPReference
KP-1360Cummins 360HPReference
CP-1400Caterpillar 400HPReference
KP-1400Cummins 400HPReference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank870.6 LReference
Engine298.3 kWReference
Drawbar (claimed)247.6 kWReference
Drawbar (tested)244.5 kWReference
Cummins NTA 855Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power298.3 kWReference
Air cleanerdual dry elementReference
Compression14.1:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power244.5 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulc wet discReference
PTO & Hydraulics
Typeclosed centerReference
Valves3Reference
Dimensions
Wheelbase359 cmReference
Weight16579 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Panther KP-1400 Serial Numbers
1982P10-00501Reference
1983P10-02501Reference
1984P10-03001Reference
1985P10-05001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDNovember 17 - December 7, 1982Link: Nebraska Tractor Test 1463 fileReference
Drawbar performanceReference
Fuel use78.3 l/hourReference
Gear 7 used for power test.Reference
Max pull18508 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
