Tractor · 1986Unverified

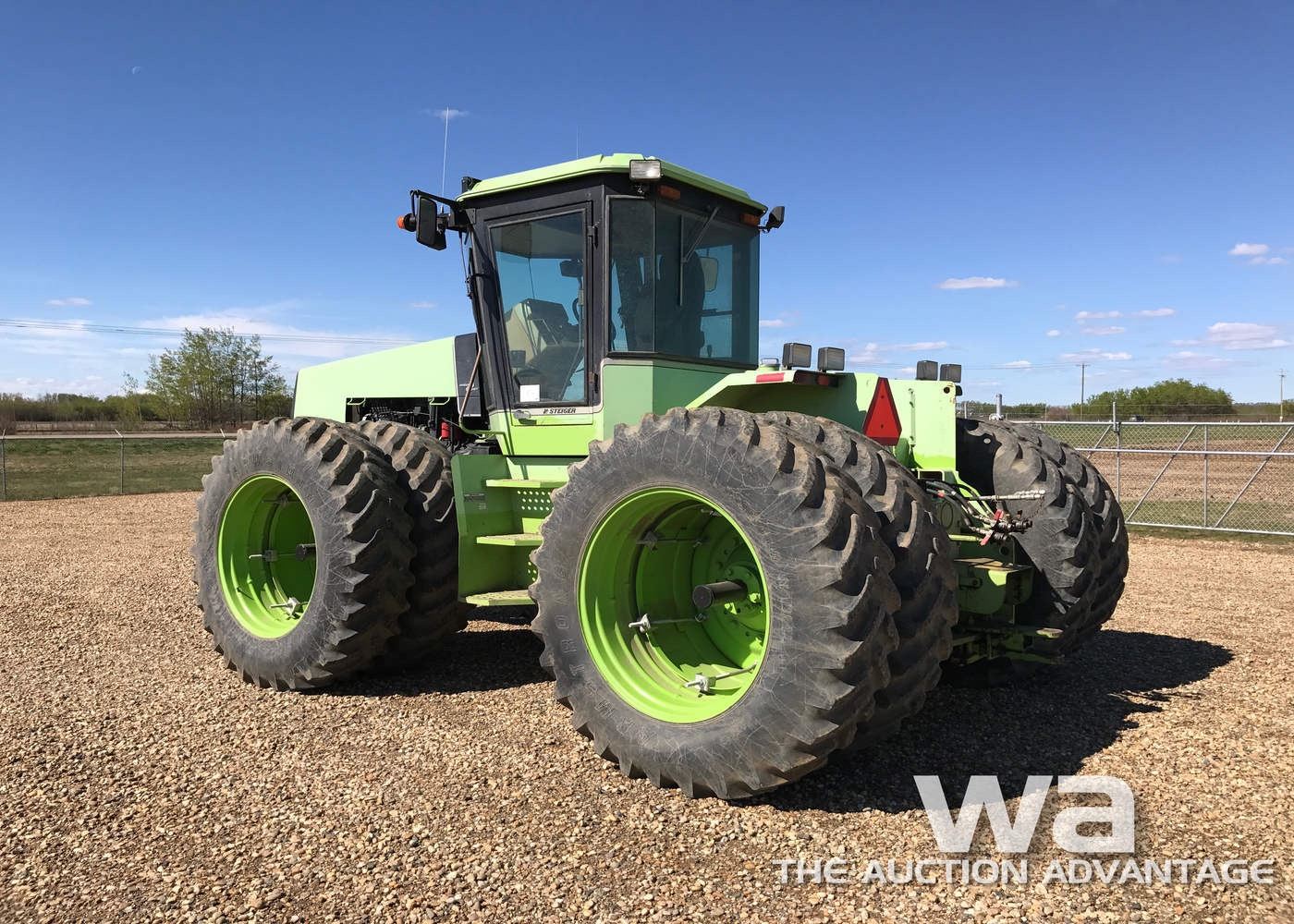

Steiger Puma 1000

Name: Steiger Puma 1000
Brand: Steiger

Steiger Puma 1000 — Four-wheel Drive (4WD) tractor · 190 hp. Reference specifications; pending source verification.

The Steiger Puma 1000 is a tractor rated at 190 hp, categorising it as a powerful model within its class. Manufactured between 1986 and 1988, it features a 6-cylinder turbocharged diesel liquid-cooled engine paired with a hydrostatic transmission and four-wheel drive. The tractor has an operating weight of 7711 kg and is suited to working on plots of between 600 and 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

190 hp

Weight

7711 kg

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

190 hp

Recorded weight

7711 kg

Transmissions

12-speed full power shift

Production years

1986-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteigerReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Steeringhydrostatic power for steerable front axle and articulated chassisReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Variants

9110similar CaseIH modelReference

Engine

CDC 8.3L 6-cyl dieselReference

Engine (gross)141.7 kWReference

CDC 6CTAReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power (gross)141.7 kWReference

Air cleanerdryReference

Rated RPM2100Reference

Torque838.0 NmReference

Torque RPM1500Reference

Starter volts12Reference

Coolant capacity33.3 LReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)125.3 kWReference

Hydraulic system68.1 LReference

Typeclosed centerReference

Capacity68.1 LReference

Pressure172.4 barReference

Valves2 to 4Reference

Pump flow102.2 lpmReference

Rear TypeIIIReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Capacities

Fuel435.3 LReference

Dimensions

Wheelbase305 cmReference

Wheelbase314 cmReference

Weight7711 kgReference

Front tire18.4-38Reference

Rear tire18.4-38Reference

Ag front18.4-38Reference

Ag rear18.4-38Reference

Length613 cmReference

Height (hood)208 cmReference

Height (cab)329 cmReference

Shipping weight7711 kgReference

Max weight10886 kgReference

Front axle101 by 3035 mmReference

Bar rear axle101 by 3035 mmReference

Front tread152 to 330 cmReference

Rear tread152 to 330 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Batteries2Reference

Battery CCA625Reference

Battery volts12Reference

Speeds

With 18.4x38 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
