Tractor · 1958Unverified

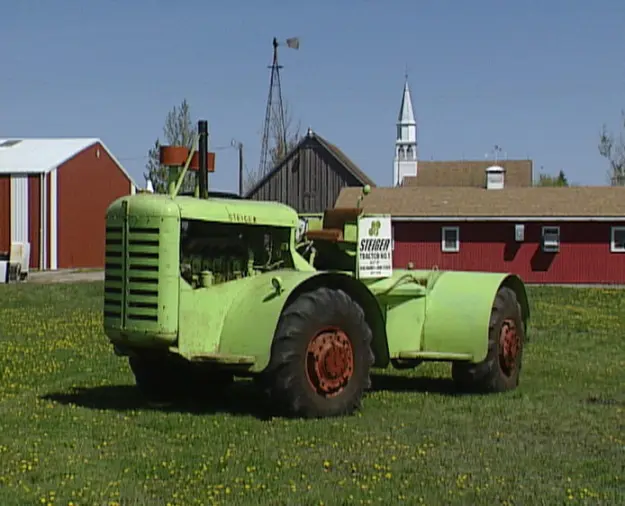

Steiger Steiger #1
Steiger Steiger #1 — Barn Series · 238 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
238 hp
Weight
6804 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Red Lake Falls, Minnesota, USAReference
Four-wheel driveReference
Articulated power steeringReference
Open operator station.Reference
Engine
Detroit Diesel 7.0L 6-cyl dieselReference
Fuel tank454.2 LReference
Engine177.5 kWReference
Detroit Diesel 6-71Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Power177.5 kWReference
Rated RPM2100Reference
Transmission
8-speedReference
TransmissionFullerReference
Gears8 forward and 2 reverseReference
Dimensions
Weight6804 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Length617 cmReference
Width299 cmReference
Height (hood)203 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
