Tractor · 1969Unverified

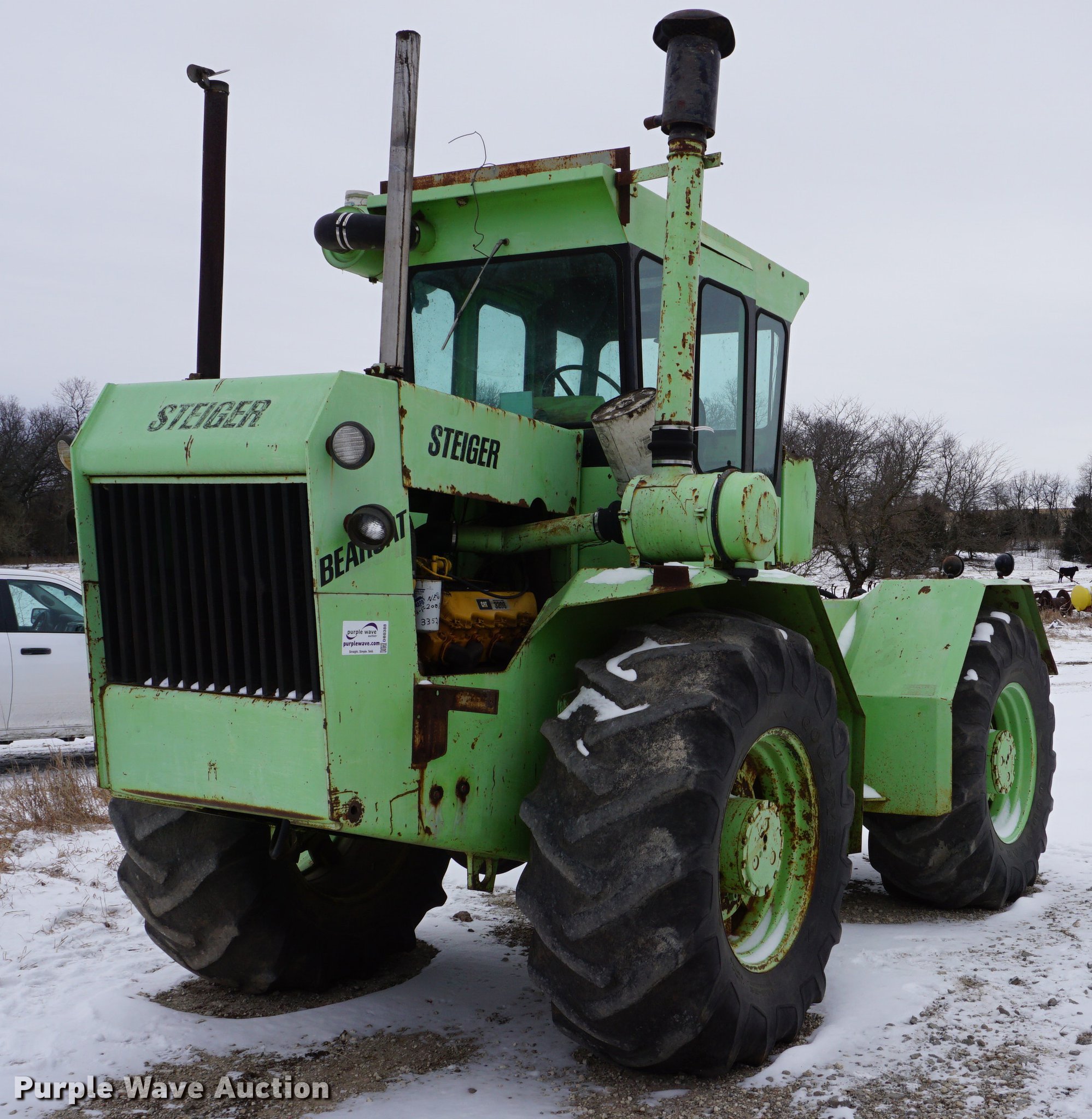

Steiger Super Wildcat
Steiger Super Wildcat — I Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Weight
7711 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Caterpillar 9.4L 8-cyl dieselReference
Engine149.1 kWReference
Caterpillar 3150Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement9.4 LReference
Bore/Stroke114 x 114 mmReference
Power149.1 kWReference
Rated RPM3000Reference
Operating RPM1600-3000Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity37.9 LReference
Transmission
10-speedReference
TransmissionFuller TA 4510Reference
Gears10 forward and 2 reverseReference
Clutch330mm dry discsReference
Capacities
Fuel529.9 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Typeopen centerReference
Capacity113.6 LReference
Pump flow56.8 lpmReference
Steering flow56.8 lpmReference
Rear TypeIVReference
Rear lift3628 kgReference
Dimensions
Wheelbase304 cmReference
Weight7711 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Length579 cmReference
Width210 cmReference
Ground clearance50 cmReference
Steering wheel264 cmReference
Super Wildcat Serial Numbers
19698000Reference
19708076Reference
19718322Reference
19728405Reference
19738543Reference
19748668Reference
Final8675Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Steiger Super Wildcat Height
Hood218 cmReference
Cab317 cmReference
Exhaust353 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
