Tractor · 1974Unverified

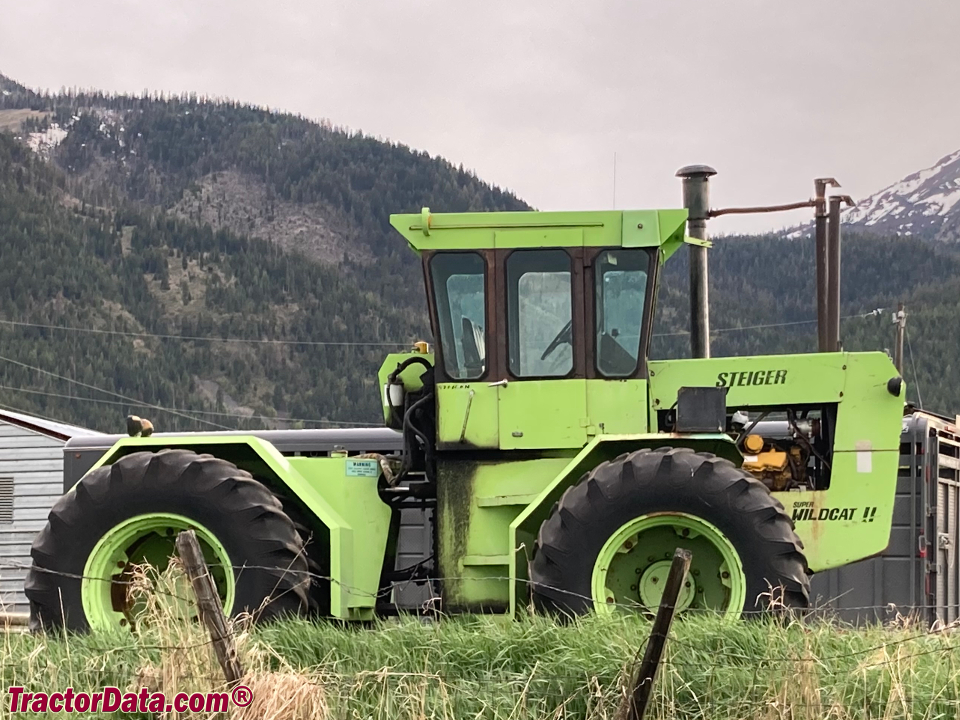

Steiger Super Wildcat II ST-200
Steiger Super Wildcat II ST-200 — II Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $34,500 in 1975Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with optional heat and air-conditioning.Reference
Variants
RC-200row-crop axlesReference
Engine
Caterpillar 9.4L 8-cyl dieselReference
Caterpillar 10.4L 8-cyl dieselReference
Engine149.1 kWReference
Caterpillar 3150Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement9.4 LReference
Bore/Stroke114 x 114 mmReference
Power149.1 kWReference
Rated RPM3000Reference
Torque513.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity37.9 LReference
Caterpillar 3208Reference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Transmission
10-speedReference
TransmissionDana-Spicer ST-1010Reference
Gears10 forward and 2 reverseReference
Clutch256mm discsReference
PTO & Hydraulics
Typeopen centerReference
Valves3Reference
Pump flow94.6 lpmReference
Total flow162.8 lpmReference
Steering flow64.3 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Ag front18.4-34Reference
Ag front20.8-34Reference
Ag front23.1-34Reference
Ag front24.5-32Reference
Ag front30.5-32Reference
Ag front28.1-26Reference
Ag rear18.4-34Reference
Ag rear20.8-34Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Ag rear30.5-32Reference
Ag rear28.1-26Reference
Length579 cmReference
Width243 cmReference
Height (cab)317 cmReference
Front tread152 to 228 cmReference
Rear tread152 to 228 cmReference
Super Wildcat II ST-200 Serial Numbers
19749001 (ST-200)Reference
19759074 (ST-200)Reference
197450001 (RC-200)Reference
197550043 (RC-200)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 23.1-30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
