Tractor · 1984Unverified

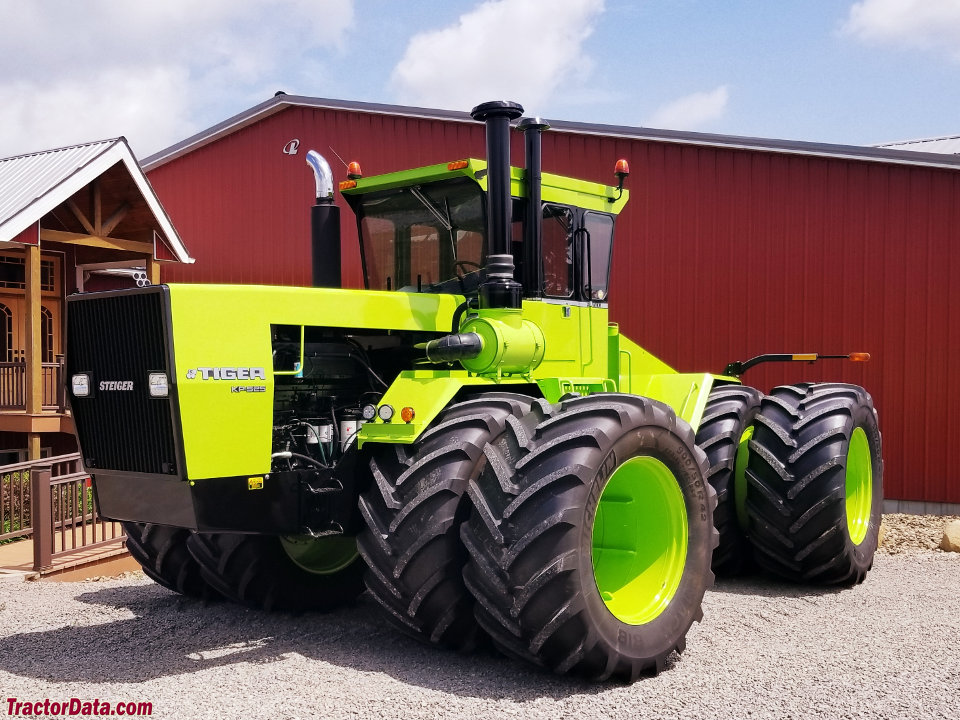

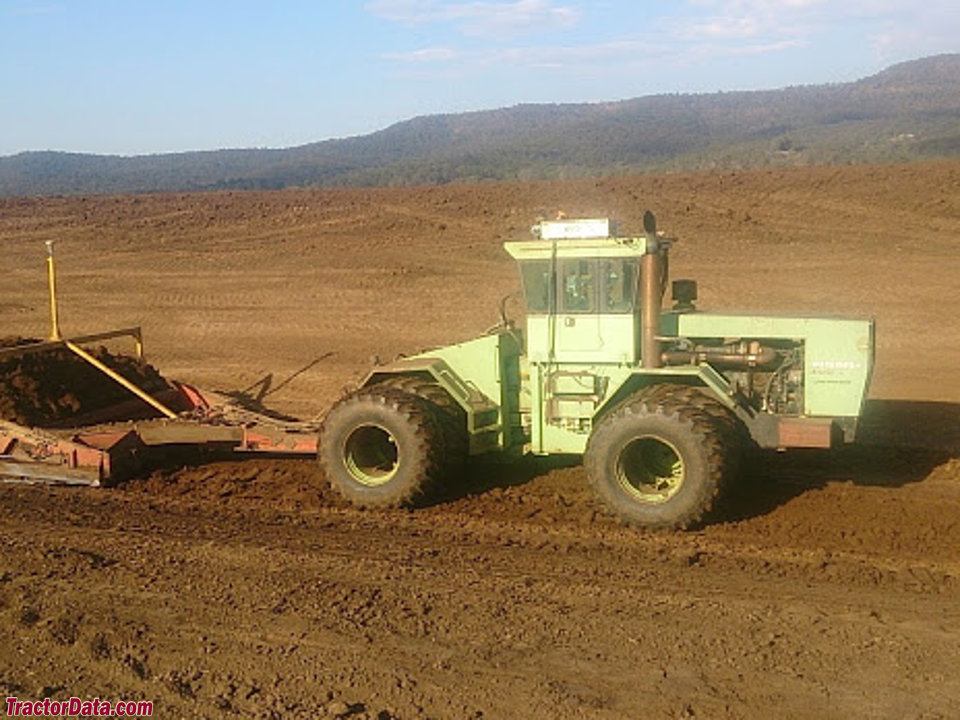

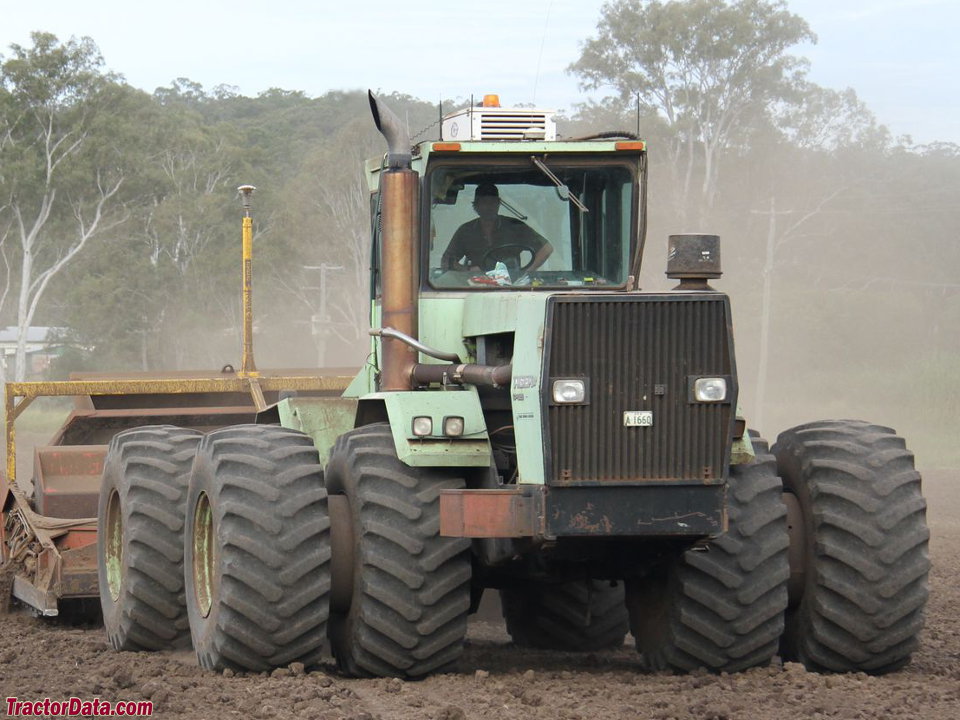

Steiger Tiger IV KP-525
Steiger Tiger IV KP-525 — IV Series · 525 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
525 hp
Weight
18470 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9190similar CaseIH modelReference
Engine
Cummins 18.8L 6-cyl dieselReference
Engine391.5 kWReference
Drawbar (claimed)313.2 kWReference
Cummins KTA 1150-A525Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement18.8 LReference
Bore/Stroke159 x 159 mmReference
Power391.5 kWReference
Compression15.1:1Reference
Rated RPM2100Reference
Torque2135.7 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Oil capacity71.9 LReference
Coolant capacity106.0 LReference
Transmission
24-speed six-speed power shiftReference
TransmissionAllison CLT 5961Reference
Typesix-speed power shiftReference
Gears24 forward and 4 reverseReference
Six-speed power shift transmission with four-speed transfer case and torque converter.Reference
Capacities
Fuel1457.2 LReference
PTO & Hydraulics
Hydraulic system181.7 LReference
Typeopen centerReference
Capacity181.7 LReference
Pressure155.1 barReference
Valves4 or 5Reference
Pump flow143.8 lpmReference
Dimensions
Wheelbase381 cmReference
Weight18470 kgReference
Front tire30.5L-32Reference
Rear tire30.5L-32Reference
Ag front30.5L-32Reference
Ag rear30.5L-32Reference
Length738 cmReference
Width243 cmReference
Width484 cmReference
Height (exhaust)408 cmReference
Shipping weight18470 kgReference
Max weight22680 kgReference
Ground clearance58 cmReference
Tiger IV KP-525 Serial Numbers
1984131-2101Reference
1985131-5001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
