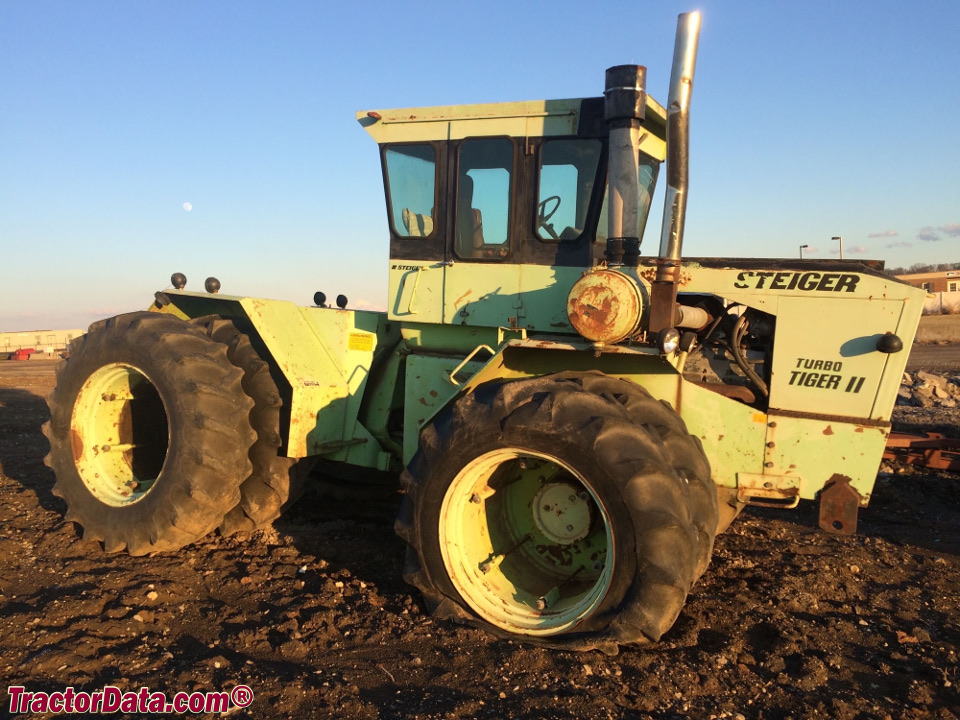

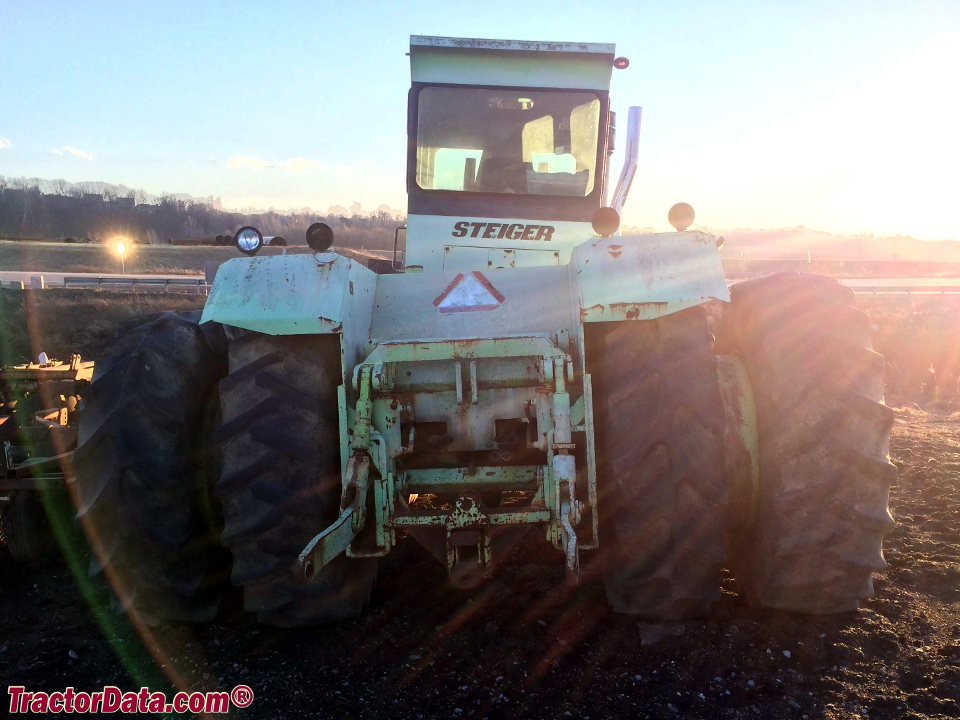

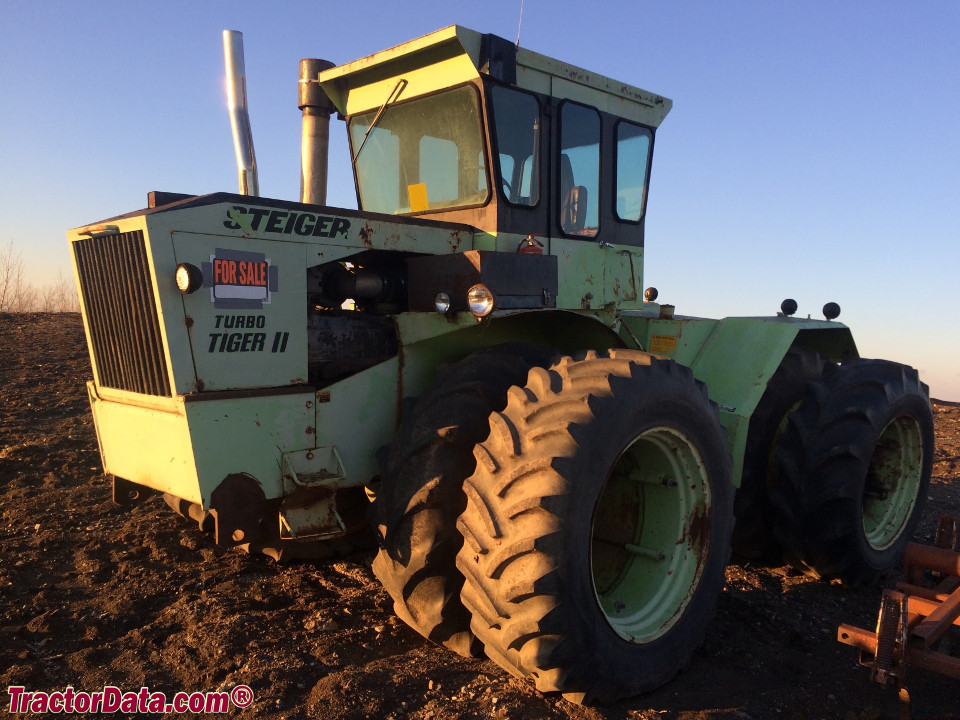

Steiger Turbo Tiger II ST-320
Steiger Turbo Tiger II ST-320 — II Series · 305 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
305 hp
Max power
195.5 kW
Weight
10886 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $52,000 in 1975Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with optional heat and air-conditioning.Reference
Engine
Cummins 14.8L 8-cyl dieselReference
Engine238.6 kWReference
Drawbar (claimed)195.4 kWReference
Drawbar (tested)195.5 kWReference
Cummins VT-903Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement14.8 LReference
Bore/Stroke140 x 121 mmReference
Power238.6 kWReference
Rated RPM2600Reference
Torque1057.7 NmReference
Torque RPM1800Reference
Starter volts12Reference
Max power195.5 kWReference
Transmission
10-speedReference
TransmissionDana-Spicer ST-1010Reference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)227.4 kWReference
Typeopen centerReference
Valves3Reference
Pump flow94.6 lpmReference
Total flow162.8 lpmReference
Steering flow68.1 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase308 cmReference
Weight10886 kgReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Length619 cmReference
Width243 cmReference
Height (cab)338 cmReference
Turbo Tiger II ST-320 Serial Numbers
197430101Reference
197530198Reference
197630430Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps62Reference
Battery volts12Reference
Test results
Diesel 10-speed 4WDNovember 15 - 26, 1974Link: Nebraska Tractor Test 1169 fileReference
Drawbar performanceReference
Fuel use71.5 l/hourReference
Gear 3-Hi used for power test.Reference
Max pull12744 kgReference
Gear 2-Lo used for pull test.Reference
Speeds
With 23.1-30 tires.Reference
