Tractor · 1969Unverified

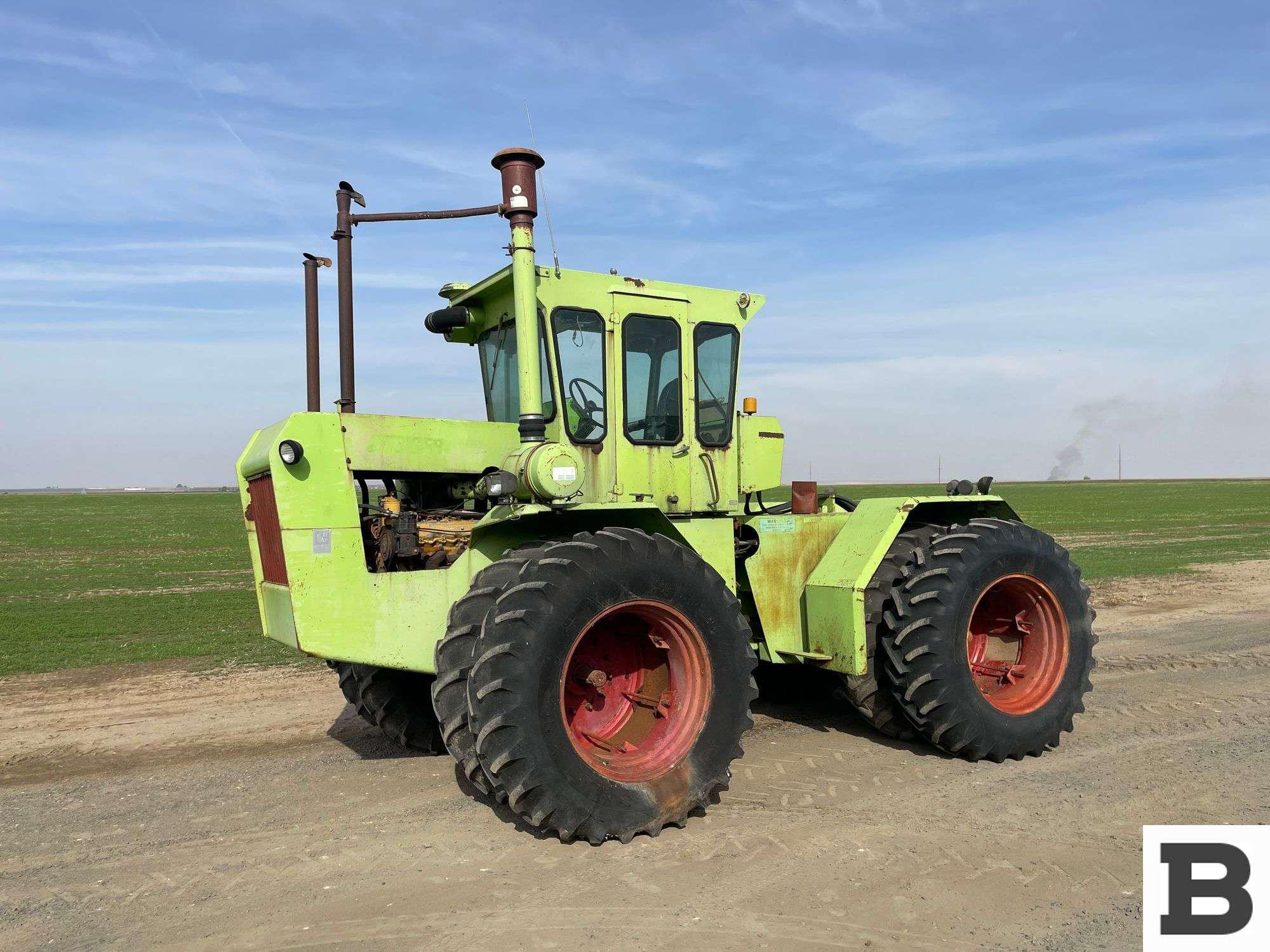

Steiger Wildcat
Steiger Wildcat — I Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
7711 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $18,700 in 1973Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Caterpillar 8.6L 8-cyl dieselReference
Fuel tank529.9 LReference
Engine130.5 kWReference
Caterpillar 3145Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement8.6 LReference
Bore/Stroke114 x 104 mmReference
Power130.5 kWReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speedReference
TransmissionFuller TA 4510Reference
Gears10 forward and 2 reverseReference
Clutch330mm dry discsReference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow94.6 lpmReference
Rear TypeIVReference
Rear lift3628 kgReference
Dimensions
Wheelbase304 cmReference
Weight7711 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Length579 cmReference
Height353 cmReference
Wildcat Serial Numbers
19698000Reference
19708059Reference
19718319Reference
19728369Reference
19738553Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
