Tractor · 1986Unverified

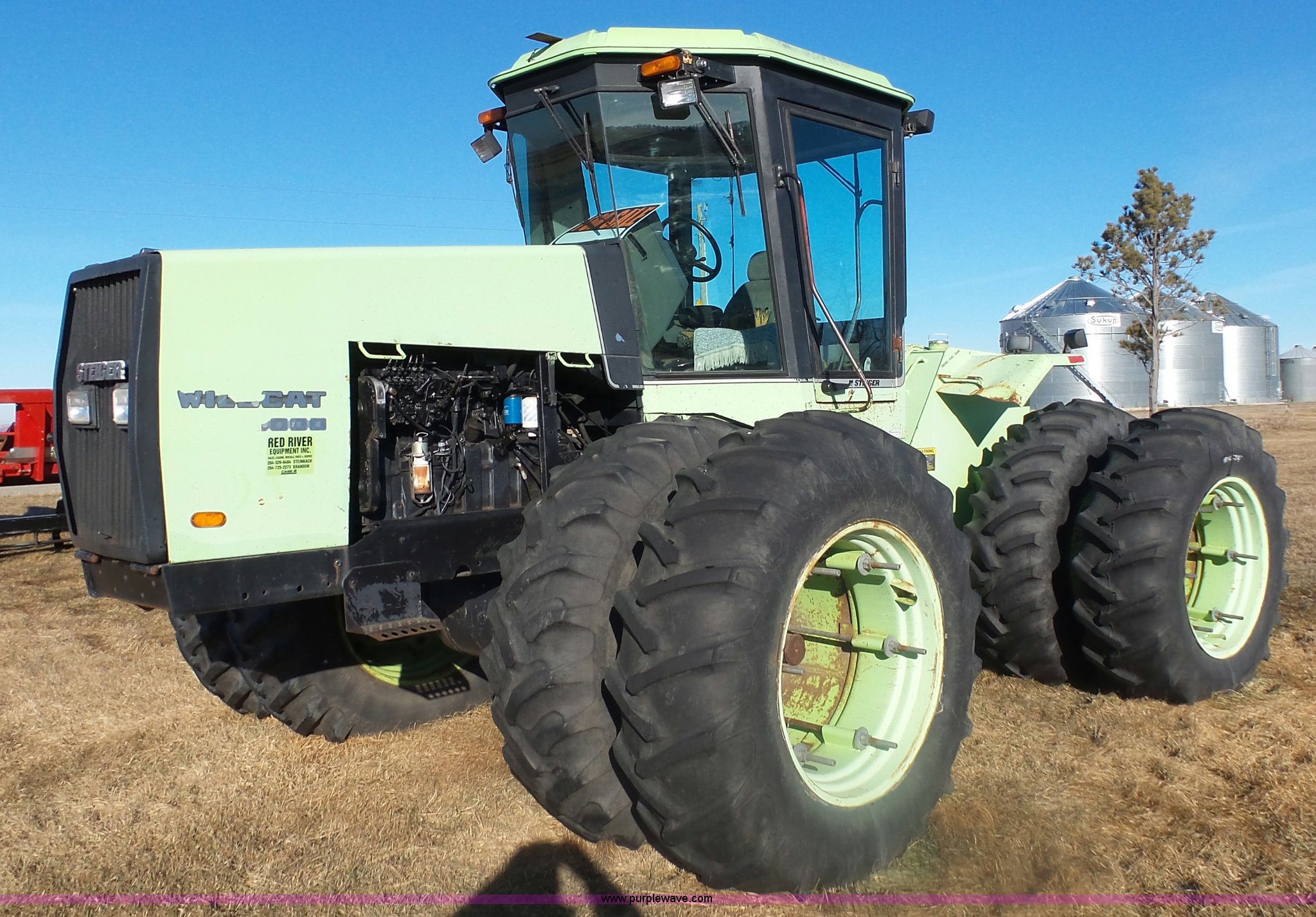

Steiger Wildcat 1000
Steiger Wildcat 1000 — Four-wheel Drive (4WD) tractor · 220 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
220 hp
Weight
7938 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic power for steerable front axle and articulated chassisReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9130similar CaseIH modelReference
Engine
CDC 8.3L 6-cyl dieselReference
Engine (gross)164.1 kWReference
Drawbar (claimed)130.5 kWReference
CDC 6CTAReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power (gross)164.1 kWReference
Air cleanerdryReference
Rated RPM2100Reference
Torque969.5 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)141.7 kWReference
Hydraulic system68.1 LReference
Typeclosed centerReference
Capacity68.1 LReference
Valves2 to 4Reference
Pump flow102.2 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel435.3 LReference
Dimensions
Wheelbase314 cmReference
Weight7938 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length613 cmReference
Shipping weight7938 kgReference
Front axle101 by 3048 mmReference
Bar rear axle101 by 3048 mmReference
Front tread152 to 330 cmReference
Rear tread152 to 330 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps105Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
