Tractor · 1976Unverified

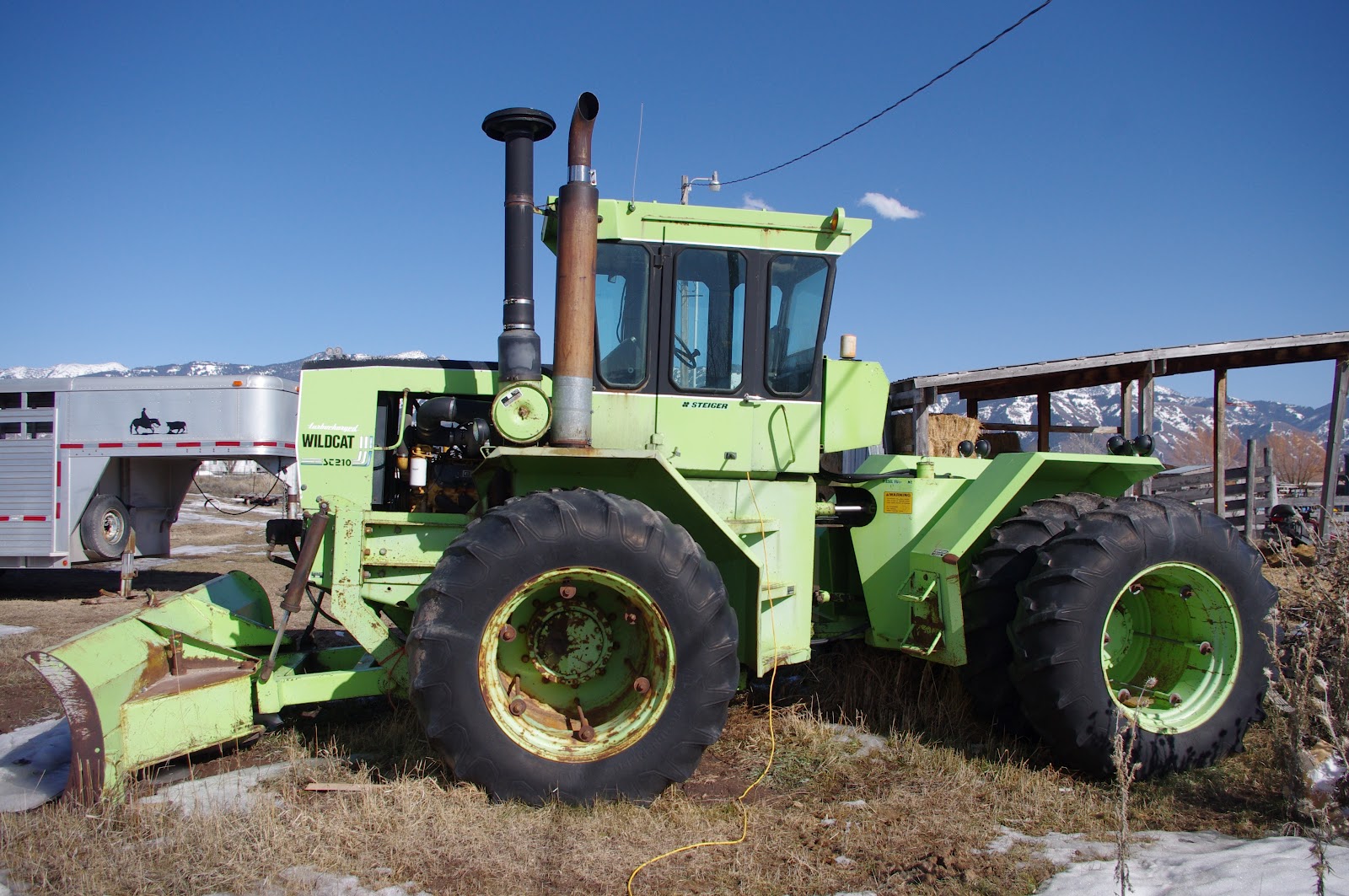

Steiger Wildcat III ST-210
Steiger Wildcat III ST-210 — III Series · 210 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
210 hp
Max power
122.1 kW
Weight
8164 kg
Hover a source tag to verify
Overview
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Safari Cab standard with air-conditioning.Reference
Variants
ST-210standardReference
RC-210row-crop axlesReference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Fuel tank529.9 LReference
Engine156.6 kWReference
Drawbar (claimed)126.8 kWReference
Drawbar (tested)122.1 kWReference
Caterpillar 3208Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power156.6 kWReference
Fuel systemdirect injectionReference
Compression16.5:1Reference
Rated RPM2800Reference
Idle RPM850-3000Reference
Torque657.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity39.7 LReference
Oil capacity13.2 LReference
Oil change100 hReference
Max power122.1 kWReference
Transmission
10-speed constant meshReference
TransmissionSpicer SST 1010Reference
Typeconstant meshReference
Gears10 forward and 2 reverseReference
Clutch355.6mm cerametallic discReference
Oil capacity47.3 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Valves2 to 4Reference
Pump flow82.1 lpmReference
SCV flow75.7 lpmReference
Rear TypeIIIReference
Rear lift4309 kgReference
Dimensions
Wheelbase299 cmReference
Weight8164 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Ag front23.1-30Reference
Ag front24.5-32Reference
Ag front30.5-32Reference
Ag front23.1-34Reference
Ag front18.4-38Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear30.5-32Reference
Ag rear23.1-34Reference
Ag rear18.4-38Reference
Length568 cmReference
Width111 cmReference
Width241 cmReference
Shipping weight8164 kgReference
Max weight10432 kgReference
Front axleRaba 598Reference
Raba 598 rear axleReference
Front tread165 to 228 cmReference
Rear tread165 to 228 cmReference
Wildcat III ST-210 Serial Numbers
1976100-00001Reference
1977100-00214Reference
1978100-00500Reference
1979100-00580Reference
1980100-00595Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Battery volts12Reference
Battery AH208Reference
Battery Group8DReference
Steiger Wildcat III ST-210 Height
Hood233 cmReference
Cab330 cmReference
Exhaust373 cmReference
Test results
Diesel 10-speed 4WDApril 13 - 25, 1977Link: Nebraska Tractor Test 1237 fileReference
Drawbar performanceReference
Fuel use48.8 l/hourReference
Gear 5 used for power test.Reference
Max pull9549 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
