Lawn Tractor · 2012Unverified
Steiner 440

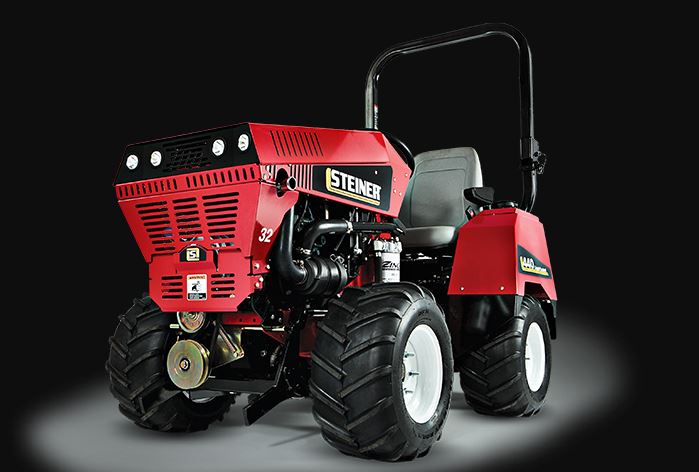

Steiner 440 — Garden tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1489 to 1517 pounds
Hover a source tag to verify
Overview
ManufacturerSteinerReference
Garden tractorReference
Four-wheel driveReference
Articulated power steeringReference
Dry disc brakesReference
Two-post folding ROPS.Reference
Variants
75-72011gas KubotaReference
75-7201234hp gas KohlerReference
75-7201340hp gas KohlerReference
Engine
24.8HP Kubota 898cc 3-cyl dieselReference
32.4HP Kubota 962cc 3-cyl gasolineReference
34HP Kohler 999cc 2-cyl gaslineReference
40HP Kohler 999cc 2-cyl gasolineReference
Kubota D902Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement54.8 ciReference
Bore/Stroke72 x 74 mmReference
Power (gross)18.5 kWReference
Rated RPM3600Reference
StarterelectricReference
Starter volts12Reference
Kubota WG972Reference
gasolineReference
Displacement58.7 ciReference
Bore/Stroke74 x 74 mmReference
Power (gross)24.2 kWReference
Kohler CH904Reference
gaslineReference
2-cylinderReference
air-cooledReference
Displacement61 ciReference
Power (gross)25.4 kWReference
Kohler CH1000Reference
Power (gross)29.8 kWReference
Transmission
hydrostaticReference
TransmissionEaton 70160Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Peerless 2600 transaxle.Reference
Capacities
Fuel30.3 LReference
PTO & Hydraulics
Hydraulic system18.9 LReference
Capacity18.9 LReference
Pressure103.4 barReference
Pump flow22.7 lpmReference
Rear TypeIReference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase110 cmReference
Weight1489 to 1517 poundsReference
Front tire22x11-10Reference
Rear tire22x11-10Reference
Ag front22x12-10Reference
Ag rear22x12-10Reference
Lawn/turf front22x11-10Reference
Lawn/turf rear22x11-10Reference
Length218 cmReference
Width113 cmReference
Width168 cmReference
Height (ROPS)186 cmReference
Height (ROPS)127 cmReference
Weight675 kgReference
Weight688 kgReference
Ground clearance12 cmReference
Steiner 440 attachments
48" front-mount mower deckReference
60" front-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
48" front-mount mower deckReference
60" front-mount mower deckReference
SnowblowerReference
BladeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
