Tractor · 1971Unverified

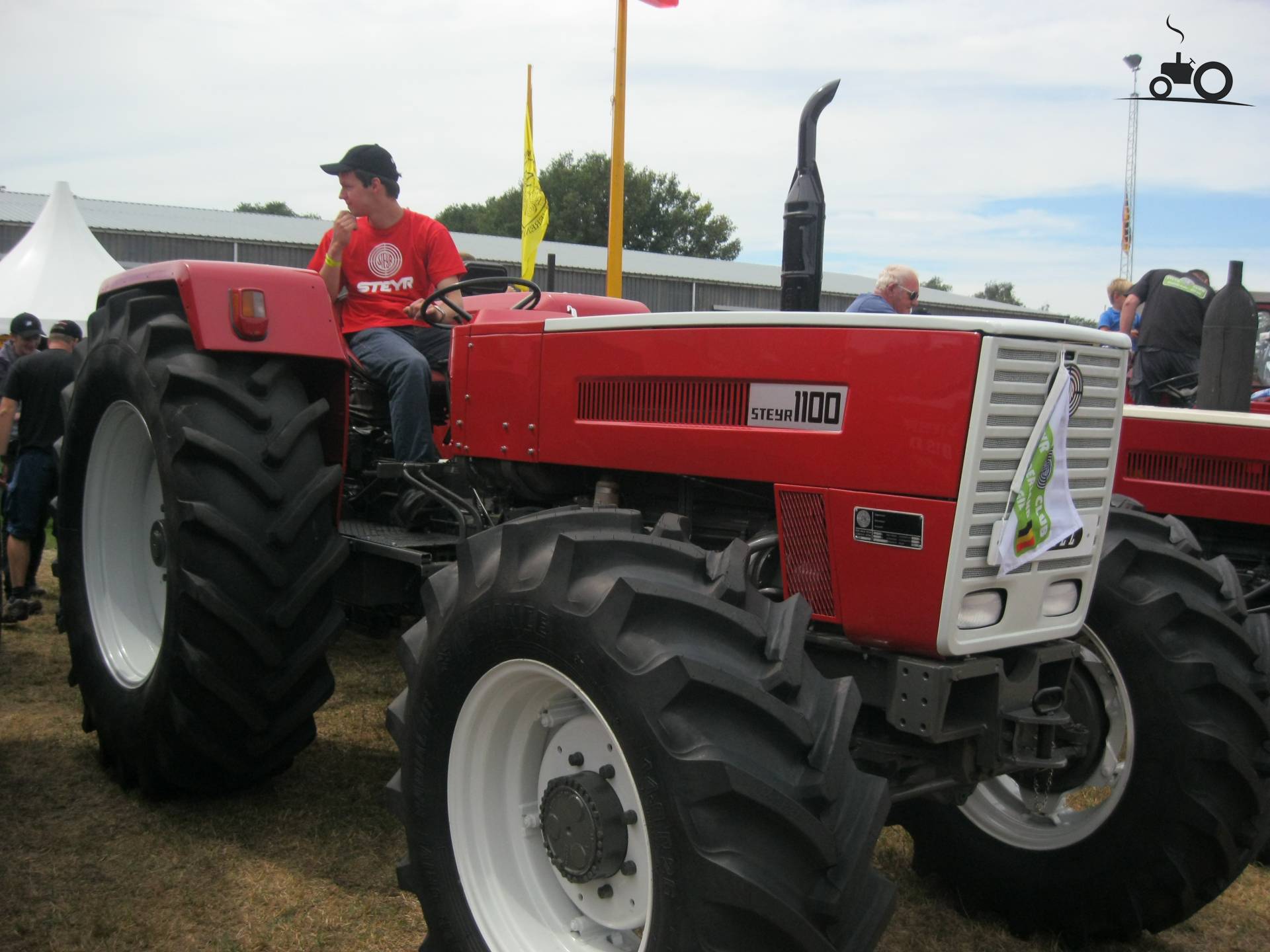

Steyr 1100
Steyr 1100 · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4280 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
6.0L 6-cyl dieselReference
Fuel tank118.1 LReference
Engine74.6 kWReference
WD 610.40Reference
dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Rated RPM2100Reference
Torque363.4 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow35.6 lpmReference
Rear lift3800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase259 cmReference
Weight4280 kgReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Ag front11.2-24Reference
Length432 cmReference
Height248 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
