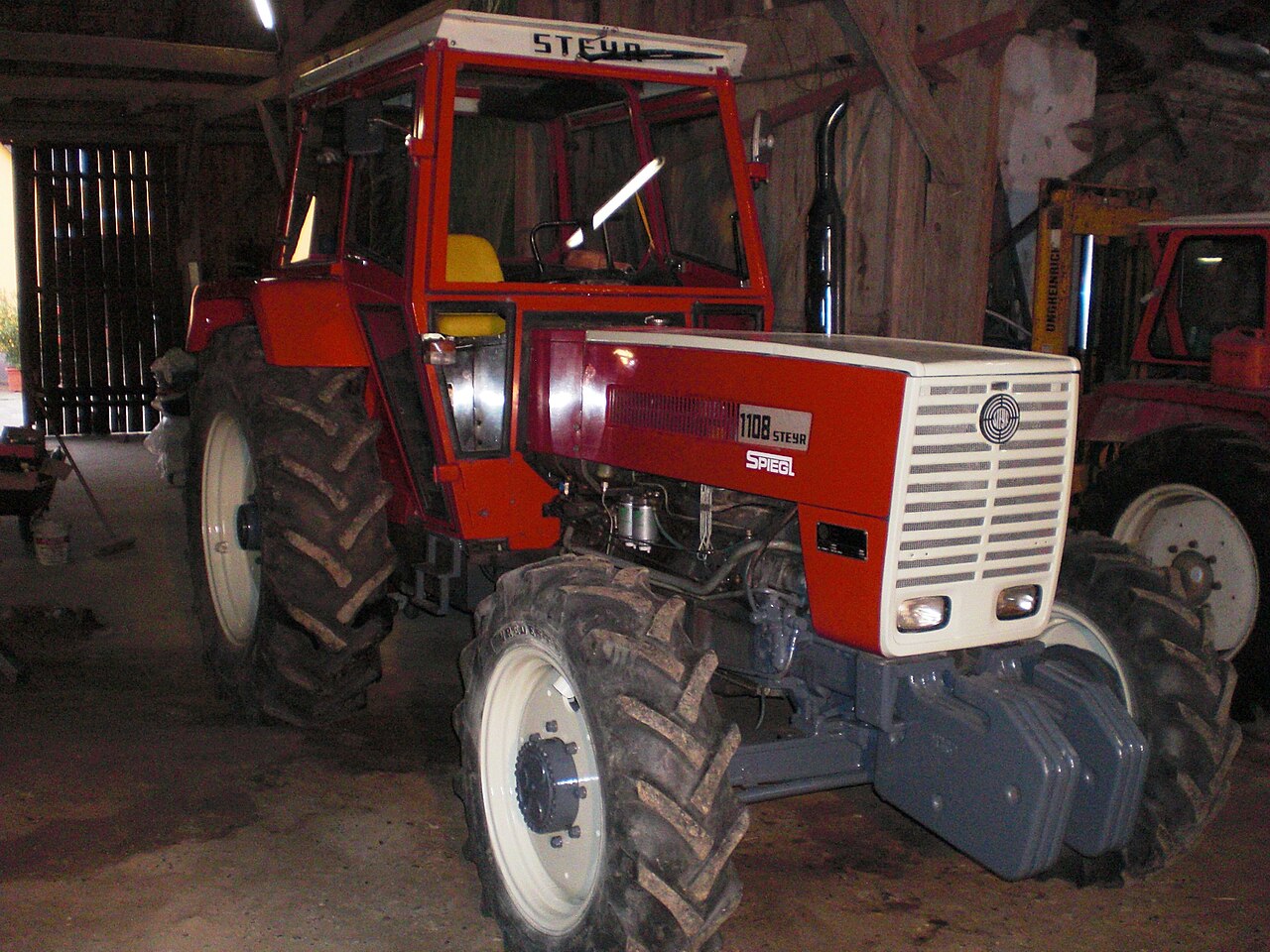

The Steyr 1108 is a tractor with a rated power of 105 hp, a mid-range figure for its class. It was built from 1977 to 1979. Under the hood is a 6-cylinder diesel engine, paired with mechanical front-wheel drive with a hydrostatic transmission. It has a listed operating weight of 4185 kg, and it suits operations of 200–800 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4185 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
105 hp
Recorded weight
4185 kg
Transmissions
12-speed
Production years
1977-1979
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
6.0L 6-cyl dieselReference
Fuel tank118.1 LReference
Engine78.3 kWReference
WD 610.44Reference
dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power78.3 kWReference
Rated RPM2300Reference
Torque363.4 NmReference
Torque RPM1600Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow35.6 lpmReference
Rear lift3800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase259 cmReference
Weight4185 kgReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Ag front11.2-24Reference
Length432 cmReference
Height264 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
