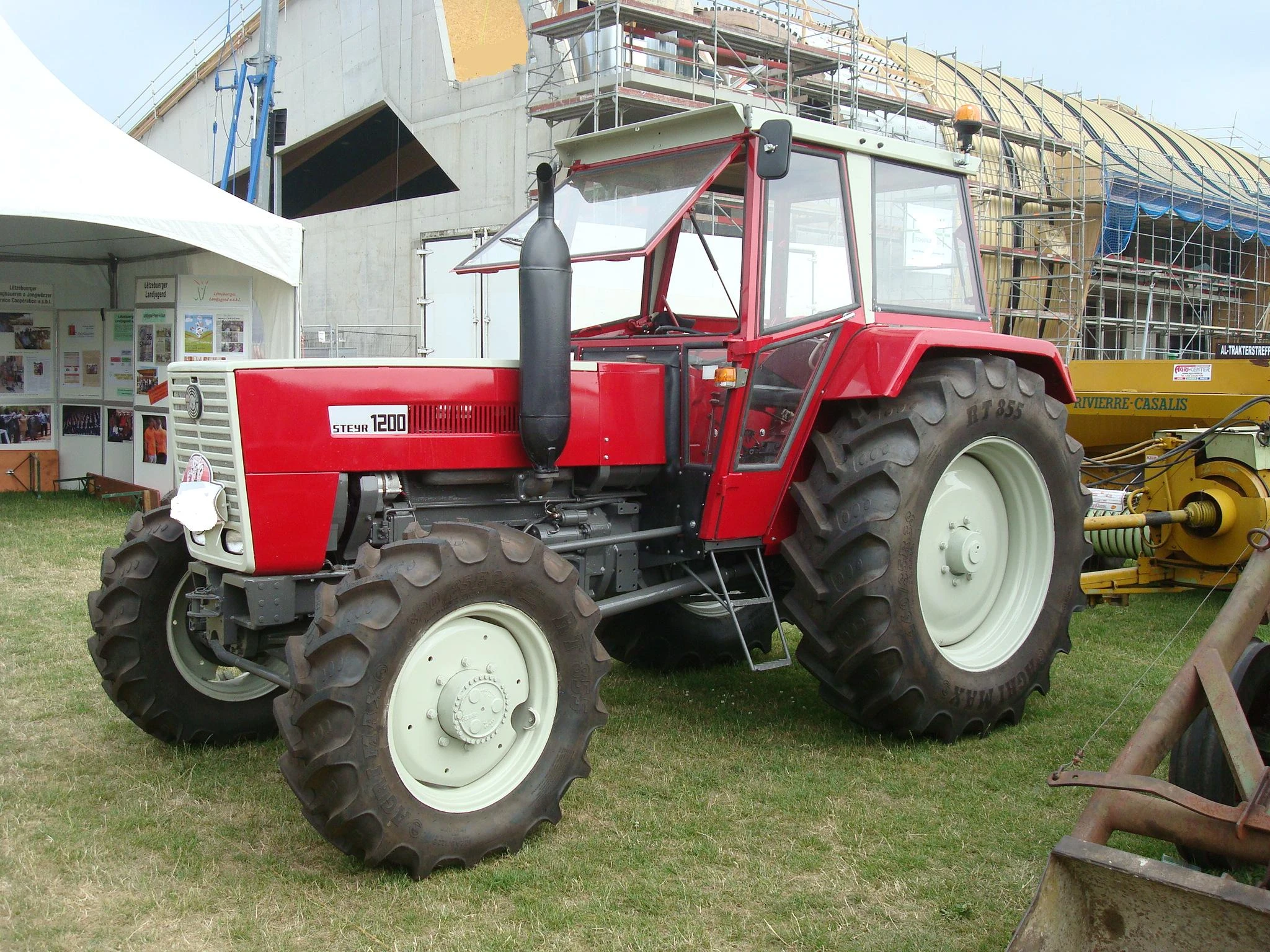

The Steyr 1200 is a tractor with a rated power of 115 hp, a mid-range figure for its class. It was produced between 1972 and 1975. The tractor is equipped with a 6-cylinder diesel engine and mechanical front-wheel drive with a hydrostatic transmission, and has an operating weight of 4980 kg. It is suitable for operations covering an area of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
4980 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
115 hp
Recorded weight
4980 kg
Transmissions
12-speed
Production years
1972-1975
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
6.0L 6-cyl dieselReference
Fuel tank118.1 LReference
Engine85.8 kWReference
WD 610.43Reference
dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power85.8 kWReference
Rated RPM2200Reference
Torque382.4 NmReference
Torque RPM1600Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow35.6 lpmReference
Rear lift3800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase259 cmReference
Weight4980 kgReference
Front tire11.00-20Reference
Rear tire18.4-38Reference
Ag front11.00-20Reference
Ag rear18.4-38Reference
Ag front11.2-24Reference
Length439 cmReference
Height252 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
