Tractor · 1954Unverified

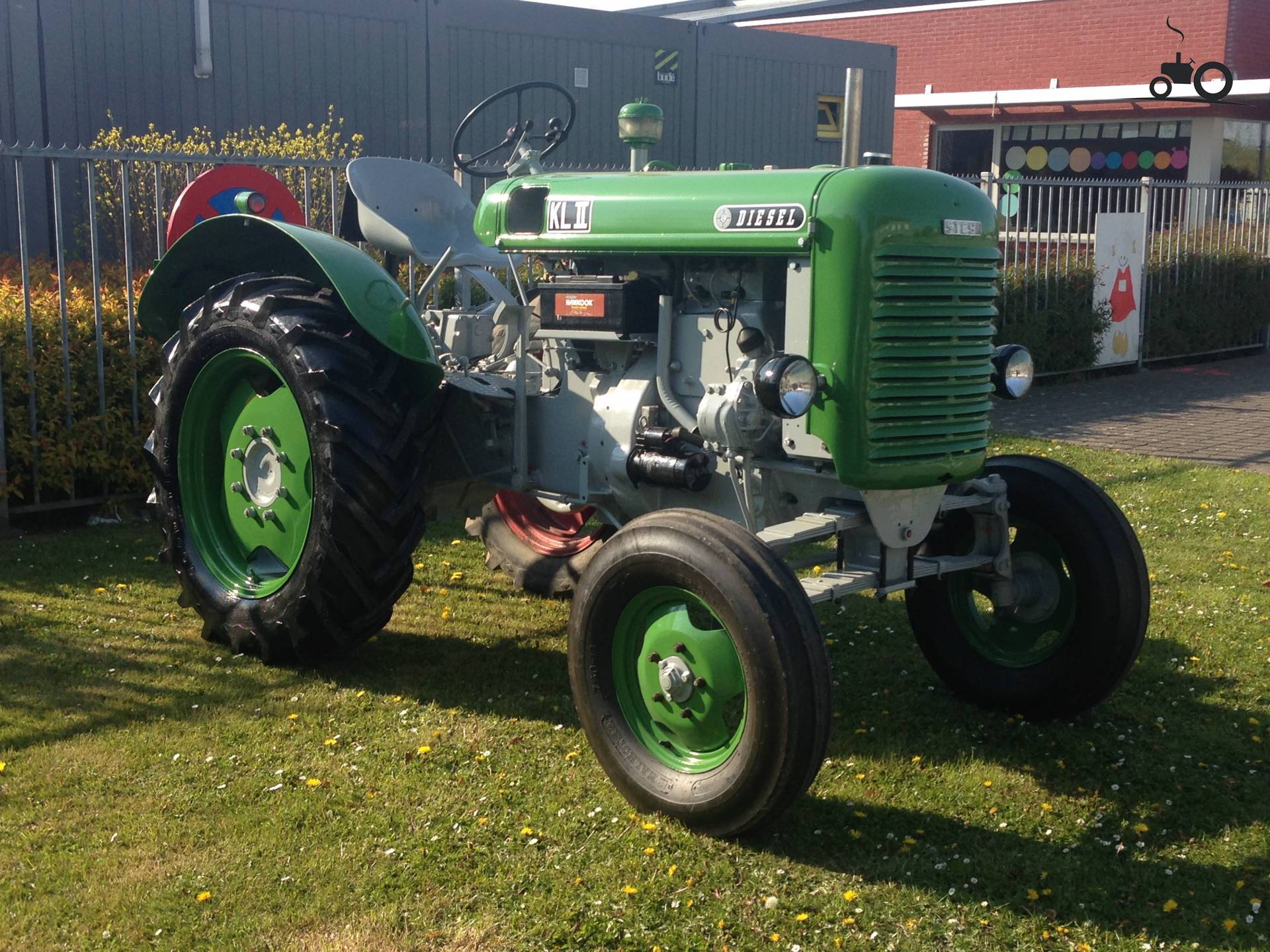

Steyr 180a
Steyr 180a — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Standard-tread tractorReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Steyr 2.7L 2-cyl dieselReference
Fuel tank48.1 LReference
Engine (net)22.1 kWReference
Steyr WD 213aReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power (net)22.1 kWReference
Compression21:1Reference
Rated RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Coolant capacity15.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)19.5 kWReference
Rear PTO Type540Reference
Engine RPM540@1470Reference
Dimensions
Wheelbase183 cmReference
Weight1900 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Length298 cmReference
Width143 cmReference
Height205 cmReference
Max weight2600 kgReference
Front tread128 cmReference
Rear tread124 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
