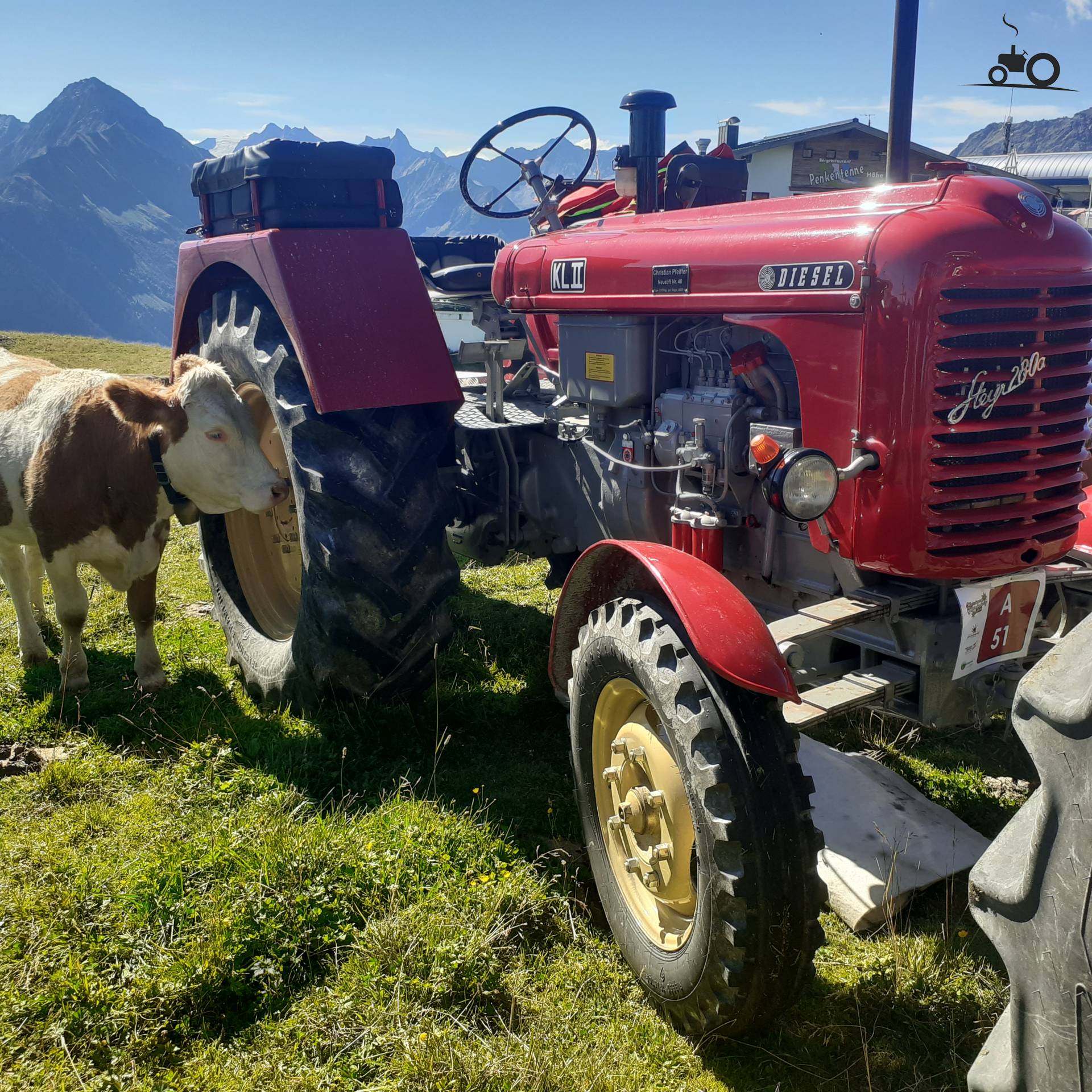

The Steyr 280 is a tractor model with a rating of approximately 59 hp, which positions it at the lighter end of its class. It was manufactured between the years 1952 and 1959. The tractor features a 4-cylinder diesel liquid-cooled engine paired with a 7-speed gearbox and two-wheel drive. Its listed operating weight is 3099 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
3099 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
59 hp
Recorded weight
3099 kg
Transmissions
7-speed gear
Production years
1952-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Standard-tread tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Steyr 5.3L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (net)44.1 kWReference
Steyr WD 413Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.3 LReference
Bore/Stroke110 x 140 mmReference
Power (net)44.1 kWReference
Rated RPM1650Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.0 LReference
Coolant capacity25.0 LReference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)36.8 kWReference
Rear PTO Type540Reference
Engine RPM540@1650Reference
Dimensions
Wheelbase221 cmReference
Weight3099 kgReference
Front tire7.50-20Reference
Rear tire14-34Reference
Ag front7.50-20Reference
Ag rear14-34Reference
Length350 cmReference
Width192 cmReference
Height216 cmReference
Ballasted weight4290 kgReference
Front tread150 cmReference
Rear tread150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
