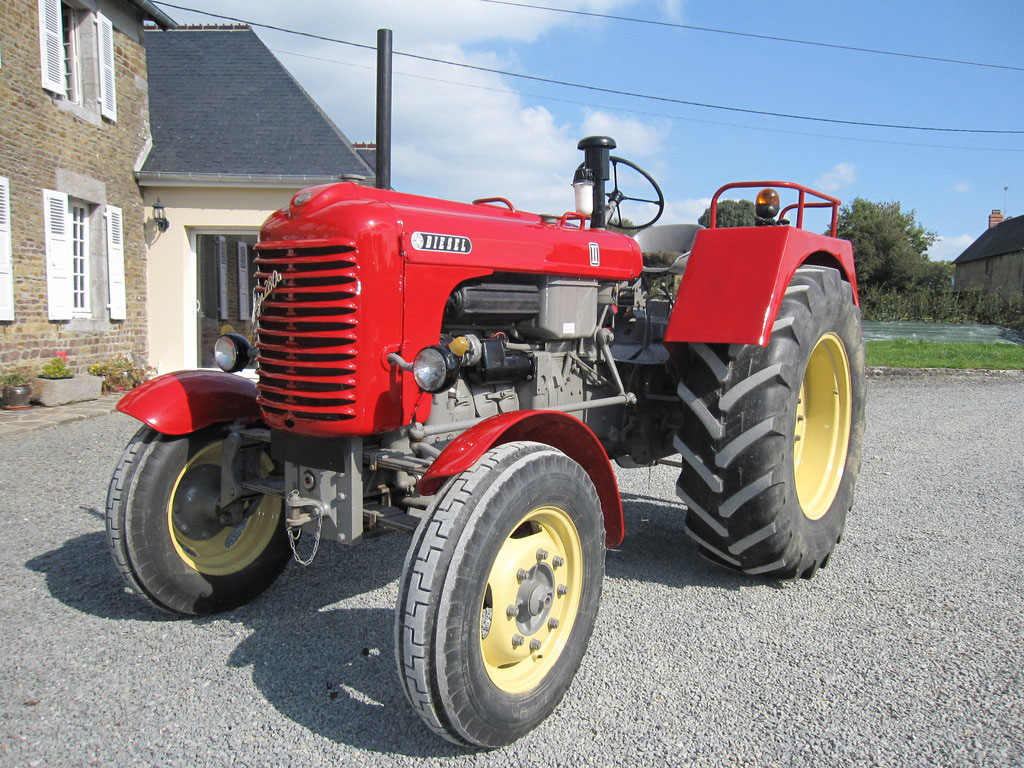

The Steyr 280a is a tractor equipped with a 4-cylinder diesel liquid-cooled engine, which delivers a rated power of 67 hp. This model was manufactured from 1959 to 1972. The 280a features two-wheel drive and a 7-speed gearbox, and has an operating weight of 3099 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
3099 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
67 hp
Recorded weight
3099 kg
Transmissions
7-speed gear
Production years
1959-1972
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Standard-tread tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Steyr 5.3L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (net)50.0 kWReference
Steyr WD 413Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.3 LReference
Bore/Stroke110 x 140 mmReference
Power (net)50.0 kWReference
Rated RPM1750Reference
StarterelectricReference
Starter volts12Reference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Rear PTO Type540Reference
Engine RPM574@1750Reference
Dimensions
Wheelbase220 cmReference
Weight3099 kgReference
Front tire7.50-20Reference
Rear tire14-34Reference
Ag front7.50-20Reference
Ag rear14-34Reference
Length355 cmReference
Width193 cmReference
Height216 cmReference
Front tread150 cmReference
Rear tread150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
